Large deformation modelling in geomechanics
LBM-DEM, MPM, and LEM
Krishna Kumar, kks32@cam.ac.uk
University of Cambridge
Kenichi Soga, soga@berkeley.edu
University of California, Berkeley.
1st Large-scale LBM-DEM conference 22nd June 2017
Cambridge, UK
Cambridge-Berkeley Computational Geomechanics
- Lattice-Boltzmann + Discrete Element Method
- Finite Element Method - Thermo-Hydro Mechanical Coupling
- Material Point Method
- Lattice Element Method

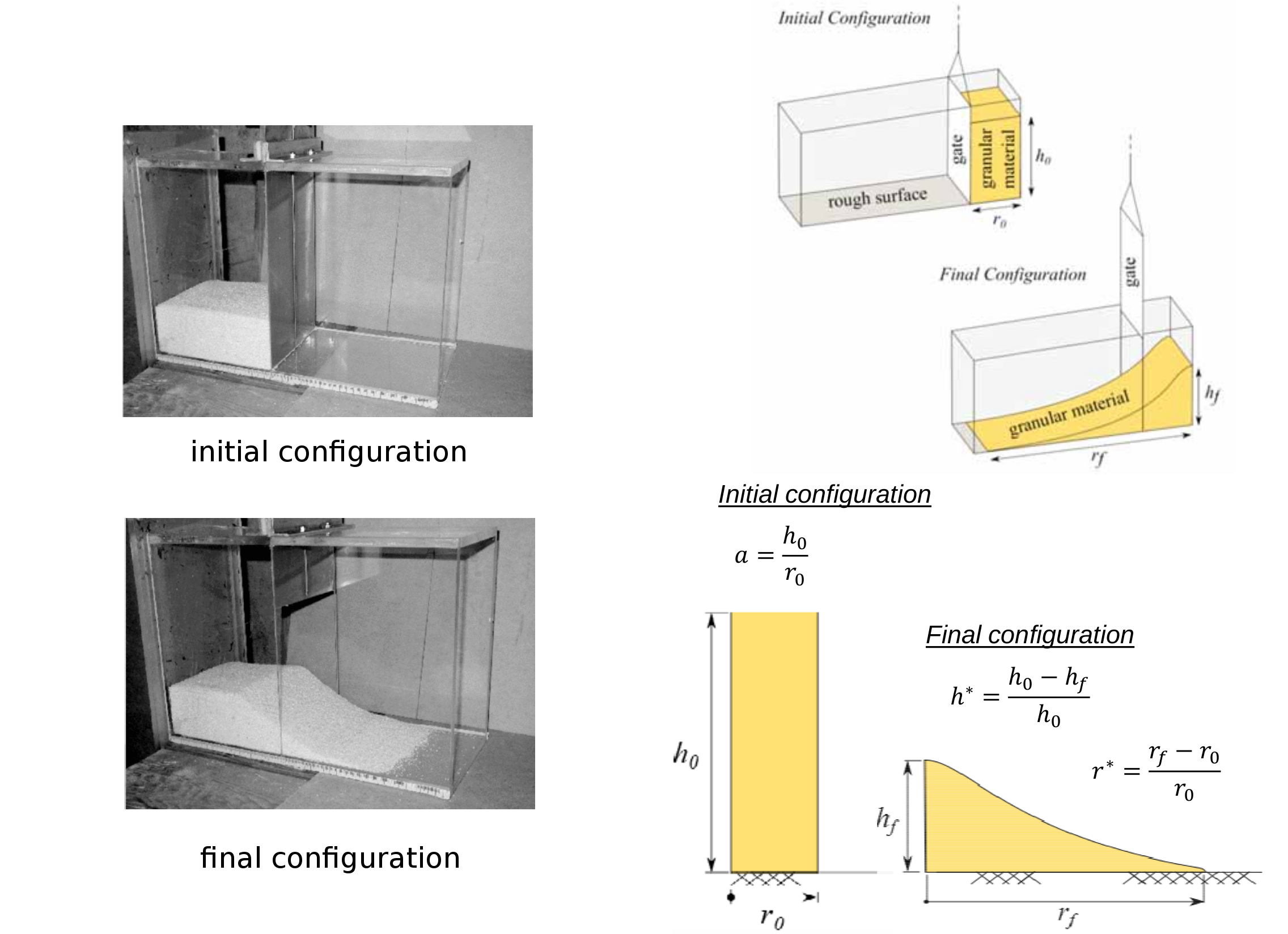

Granular column collapse

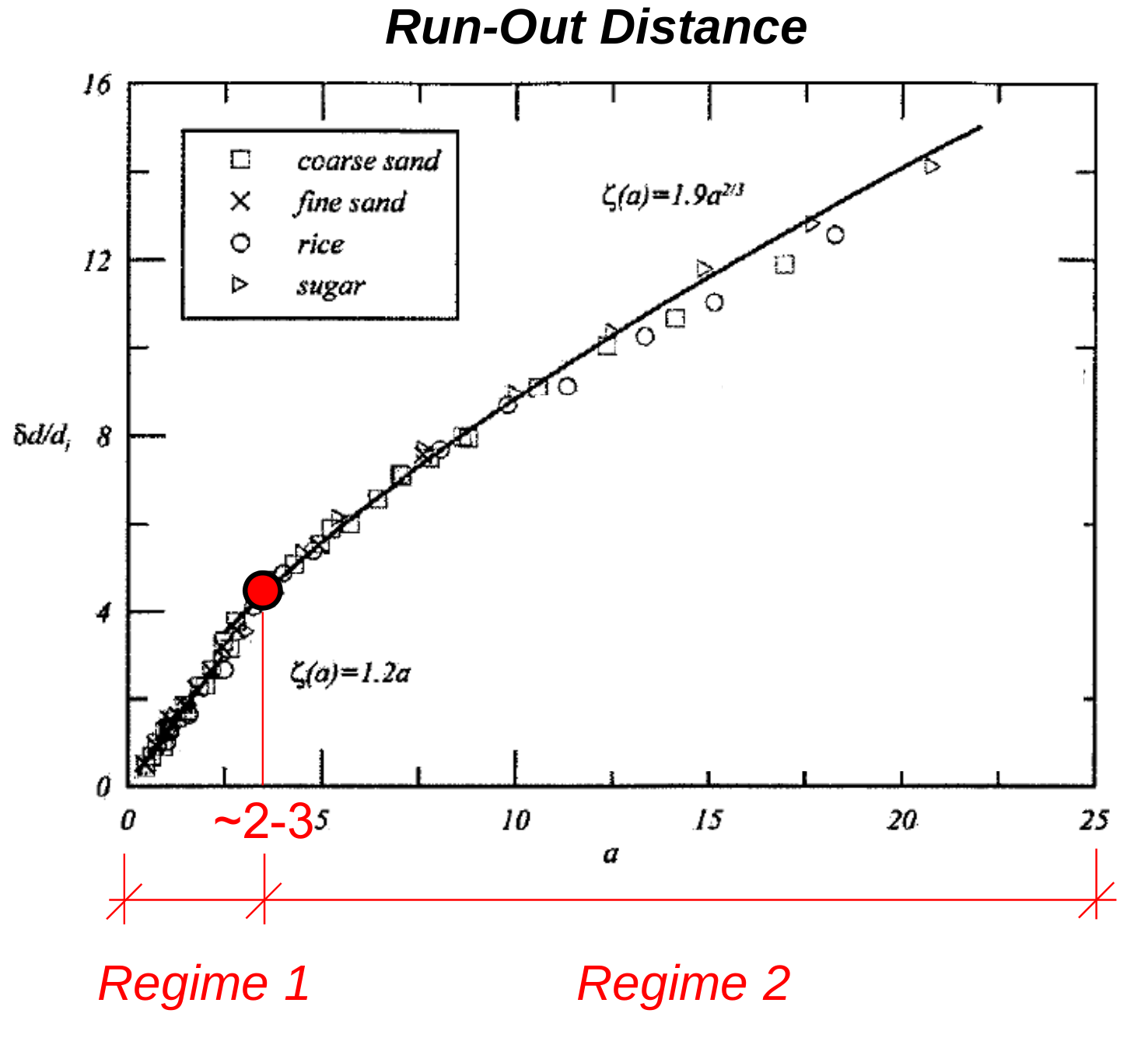

Experimental results (Lube et al 2005)
Possible boundary conditions of submarine run‐out
- Presence of ambient water (larger drag force & less gravity).
- Water entrainment.
- Pore pressure does not dissipate.

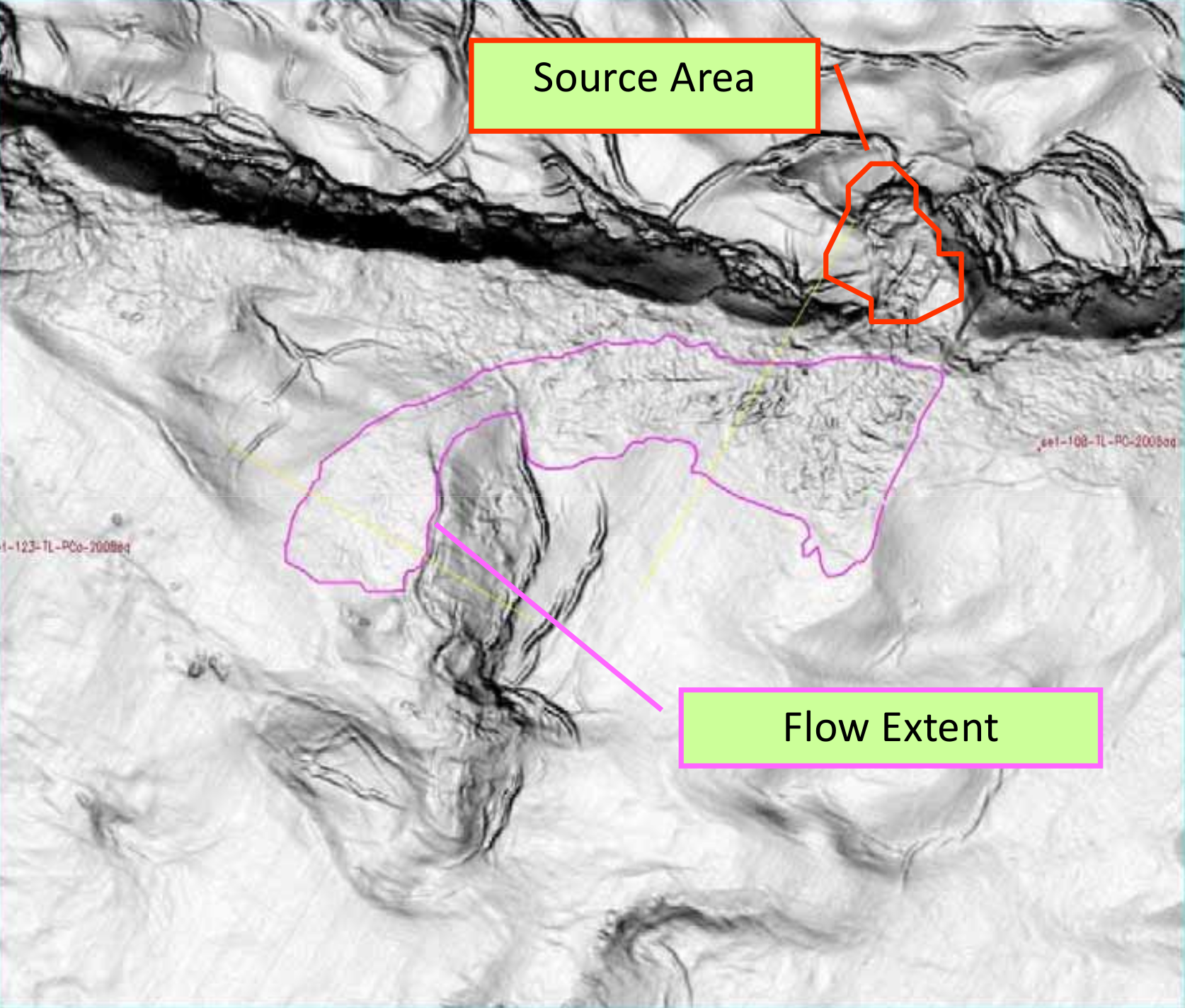

Submarine landslides

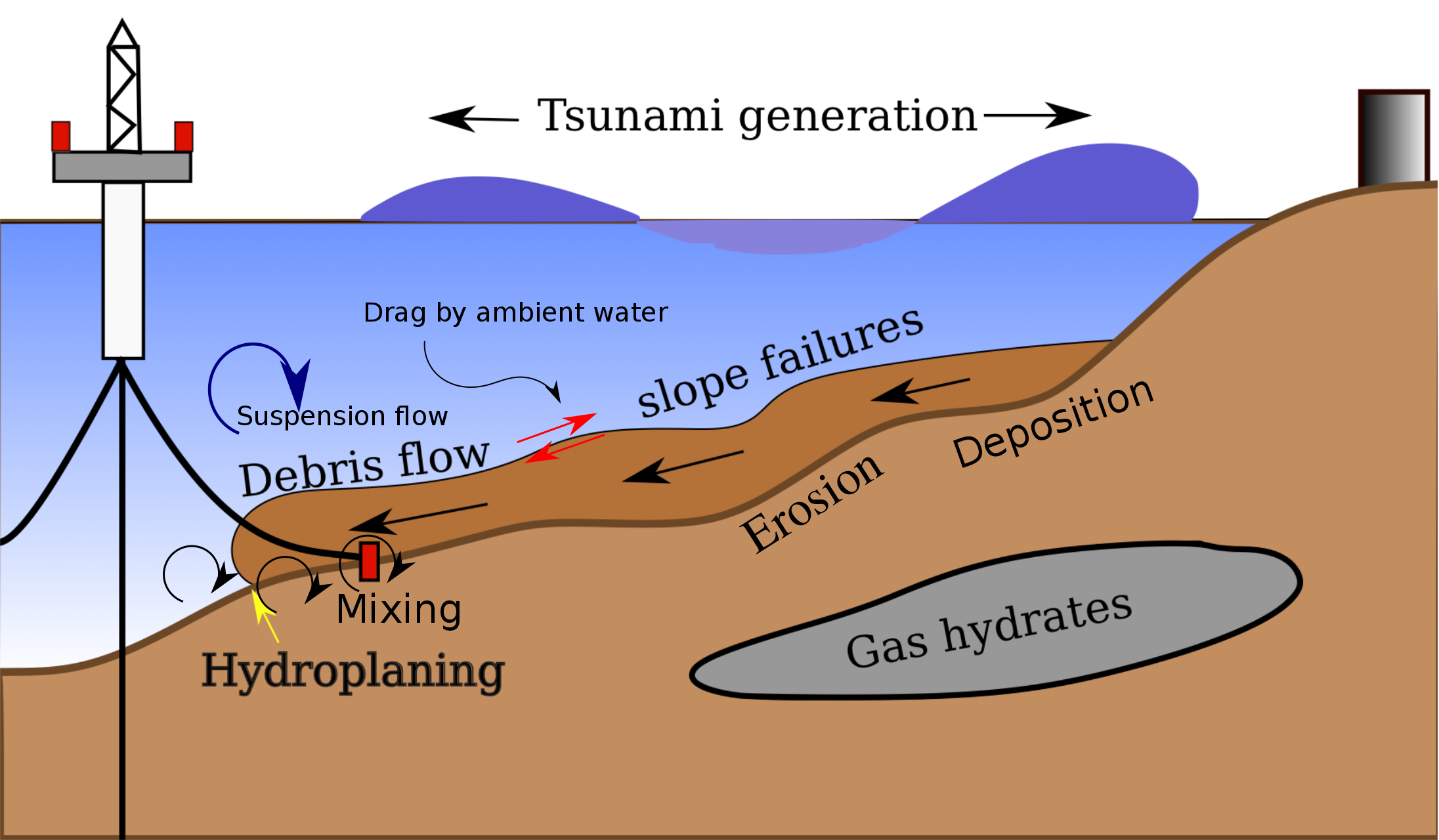

Mechanism of submarine landslides
Modelling Test at 1g Condition
- Material type influences the mode of the flow.

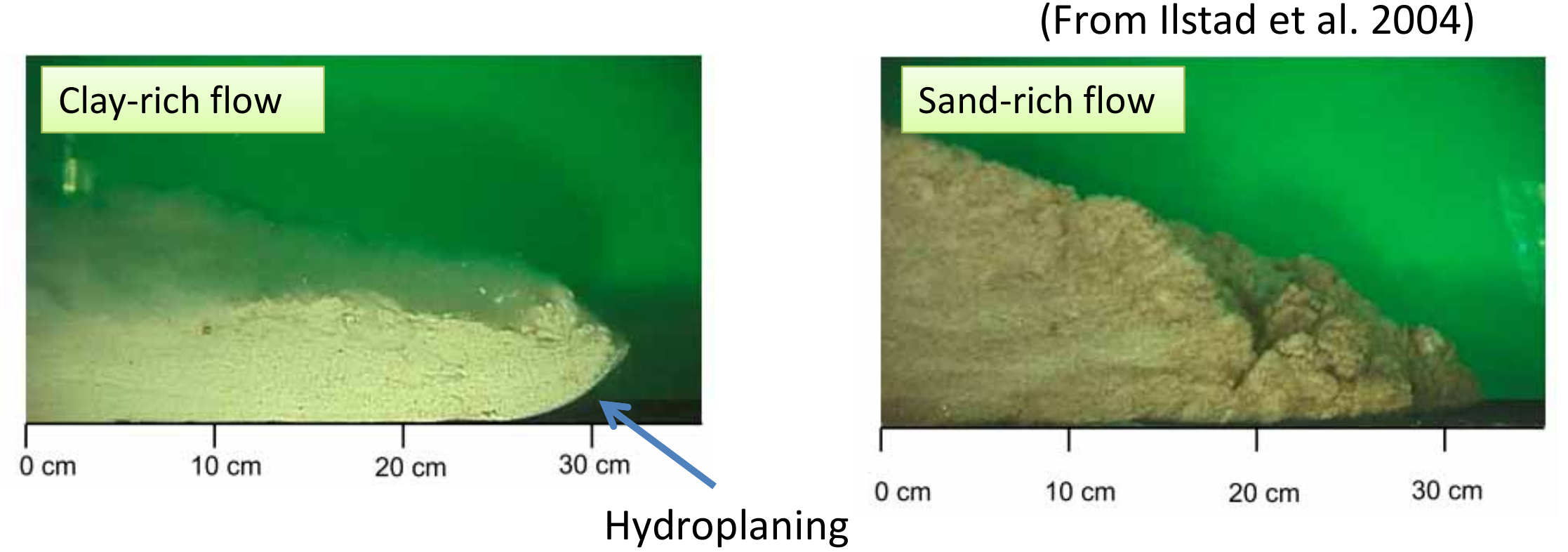

- Target: Clay‐rich flow (Less diffusive, Hydroplaning).
LBM - DEM simulation of granular collapse in fluid
aspect ratio 'a' of 6

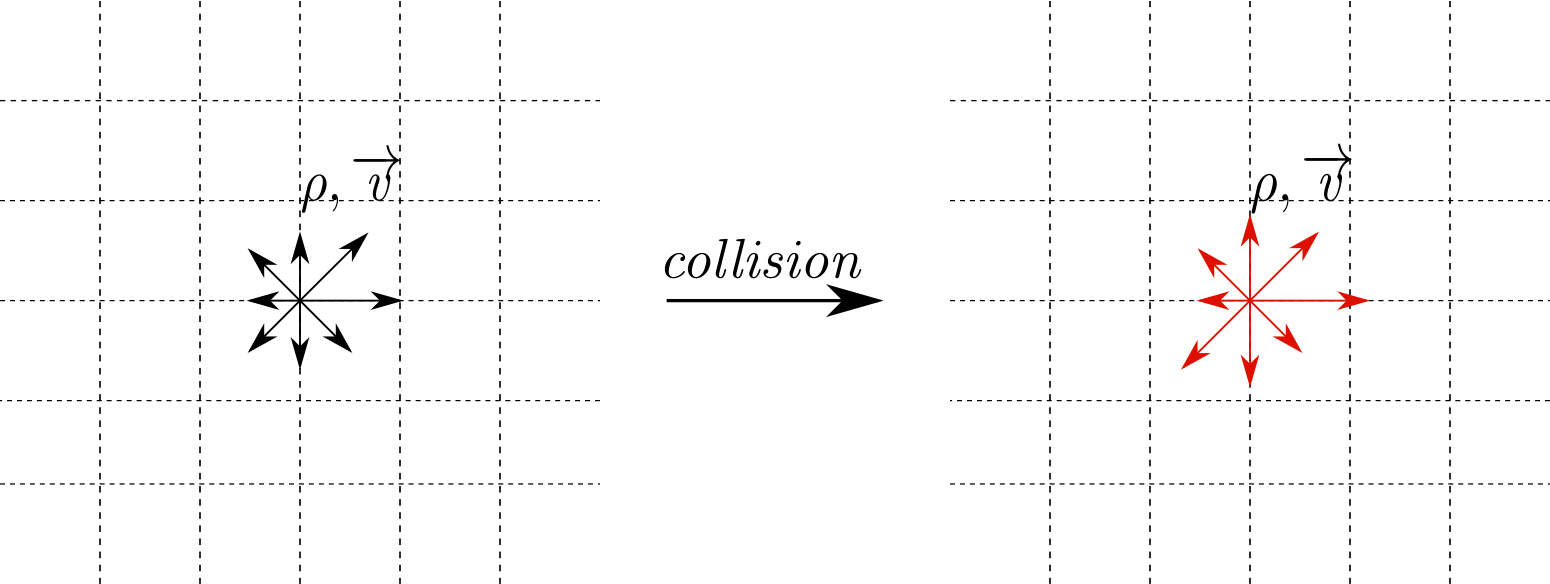

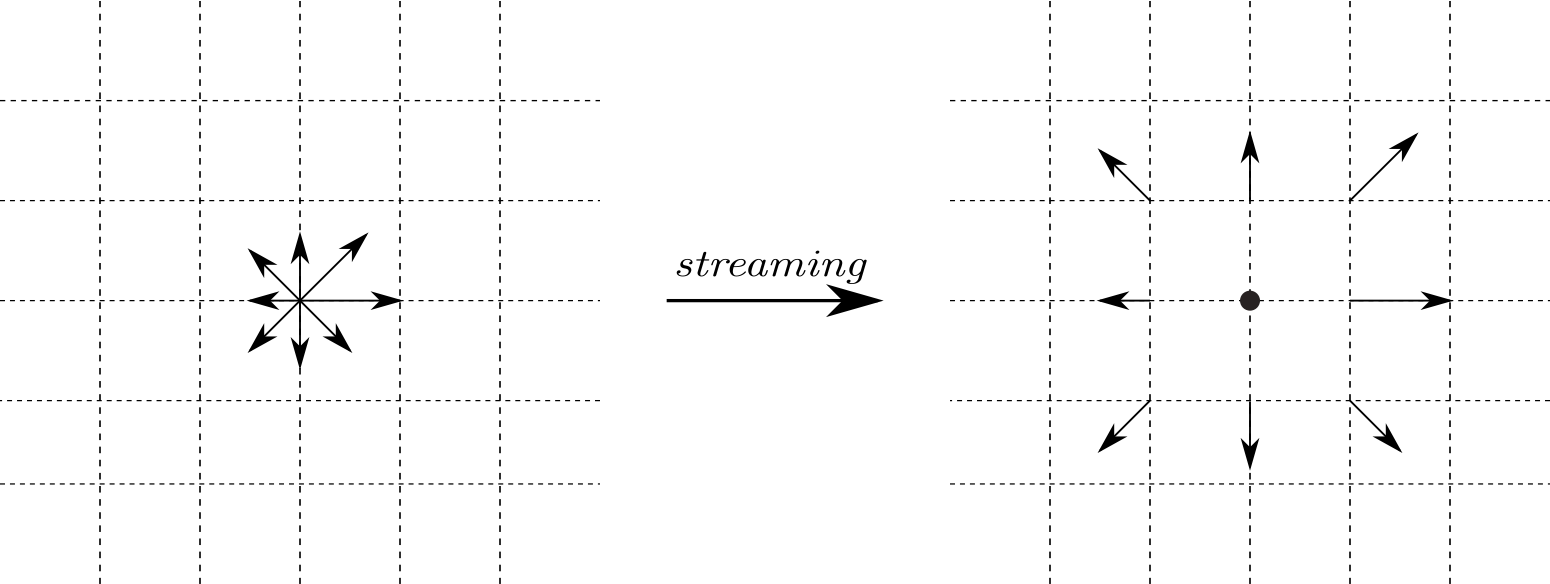

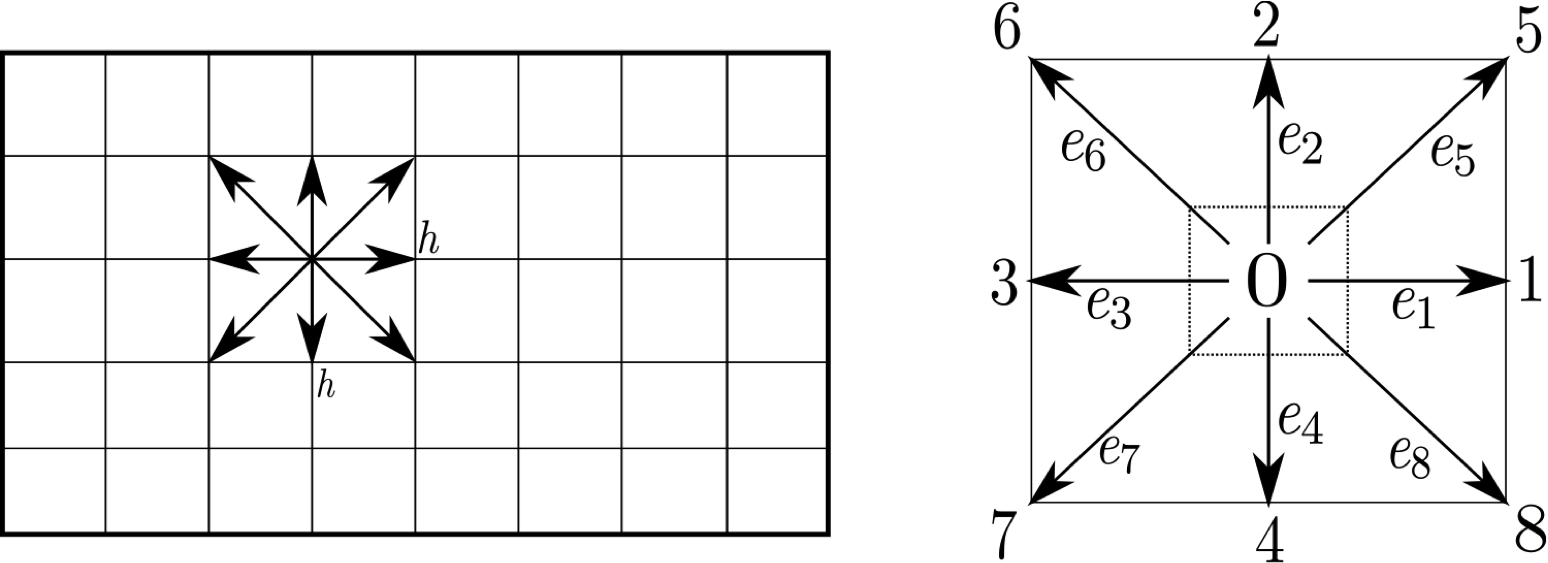

Lattice Boltzmann - MRT
\[f_{i}(x + dx, t +\Delta t) - f_{i}(x, t) = -S_{\alpha i}(
f_{i}(x, t) - f_{i} ^ {eq}(x, t))\]
- $S_{\alpha i}$ is the collisional matrix.

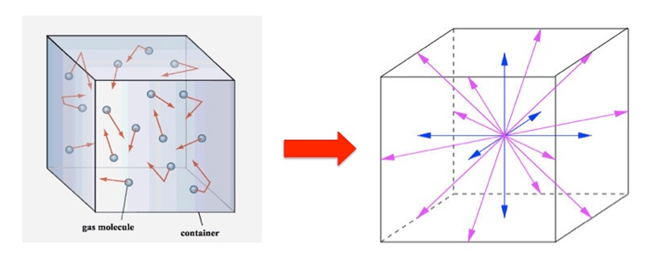

- Probability density of finding a particle : $f(x,\varepsilon, t) $, where, x is position, $\varepsilon$ is velocity, and t is time.

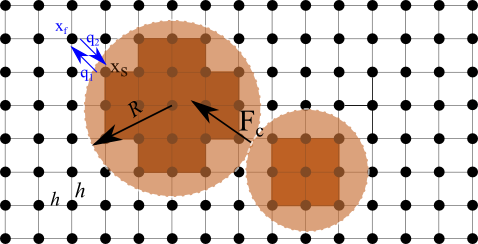

LBM-DEM fluid-solid coupling
$$\Delta t_{s}=\frac{\Delta t}{\mathit{n}_{s}} \qquad (\mathit{n}_{s}=[\Delta t/ \Delta t_{D}]+1) $$
- At every fluid iteration, $\mathit{n}_{s}$ sub-steps of DEM iterations are performed using the time step $\Delta t_{s}$.
- The hydrodynamic force is unchanged during the sub-cycling.

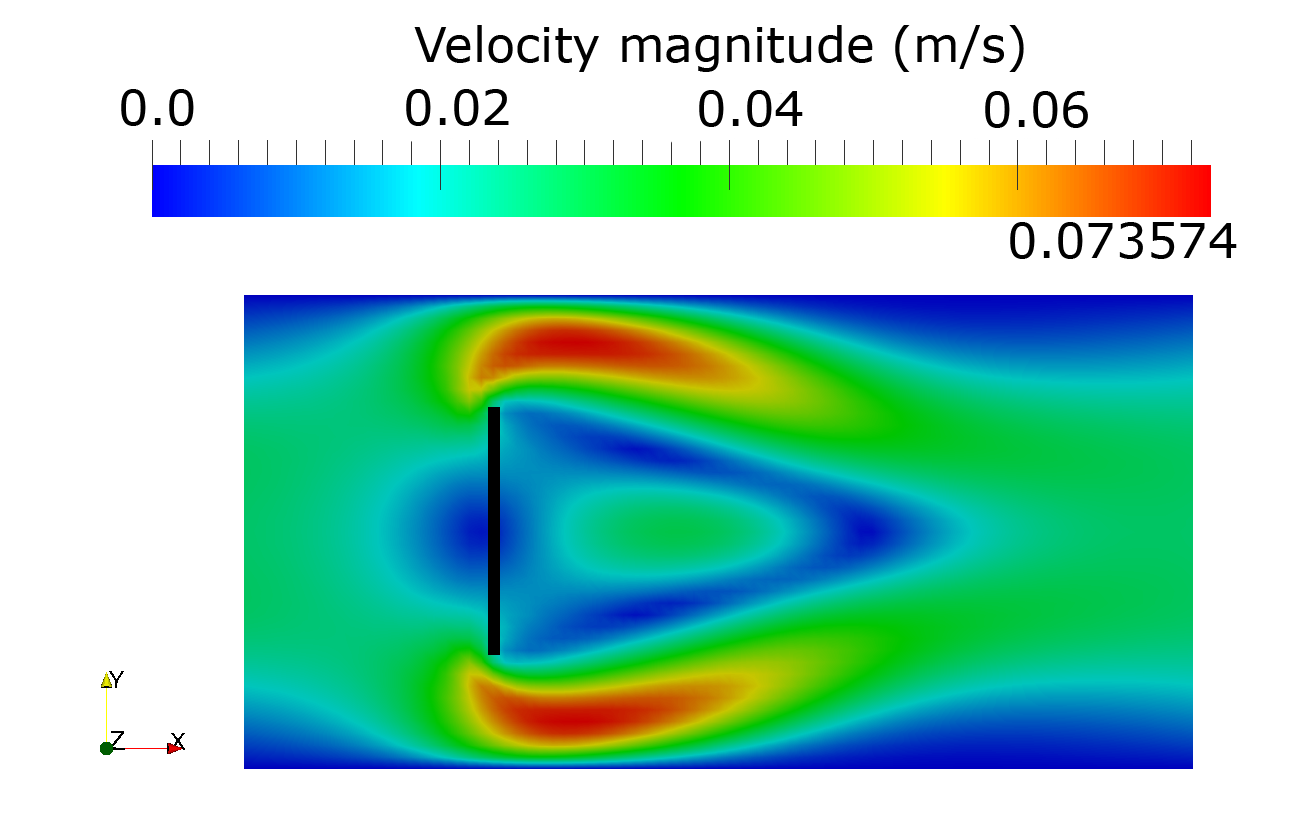

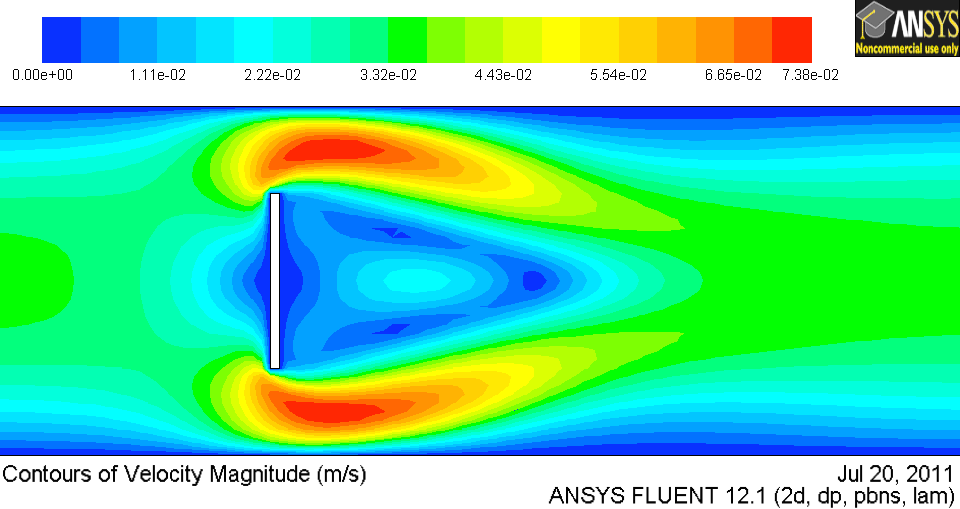

LBM laminar & turbulent flows
Smagorinsky model (LES):
$\nu_{s}(x,t)=(C_s \Delta)^2\sqrt{S_{ij}S_{ij}} \mbox{ ; } S_{ij}=\frac{1}{2}(\frac{\partial u_i}{\partial x_j}+\frac{\partial u_j}{\partial x_i})$Karman Vortex Street
Collapse in fluid
Granular collapse in fluid: Effect of aspect ratio
aspect ratio 'a' of 0.4
aspect ratio 'a' of 4
Collapse in fluid: Effect of permeability
Dirichlet boundary conditions constrain the pressure/density at the boundaries (Zou and He, 1997)
$\rho_0=\sum_{a}f_{a} \mbox{ and } \textbf{u}=\frac{1}{\rho_0}\sum_{a}f_{a}$

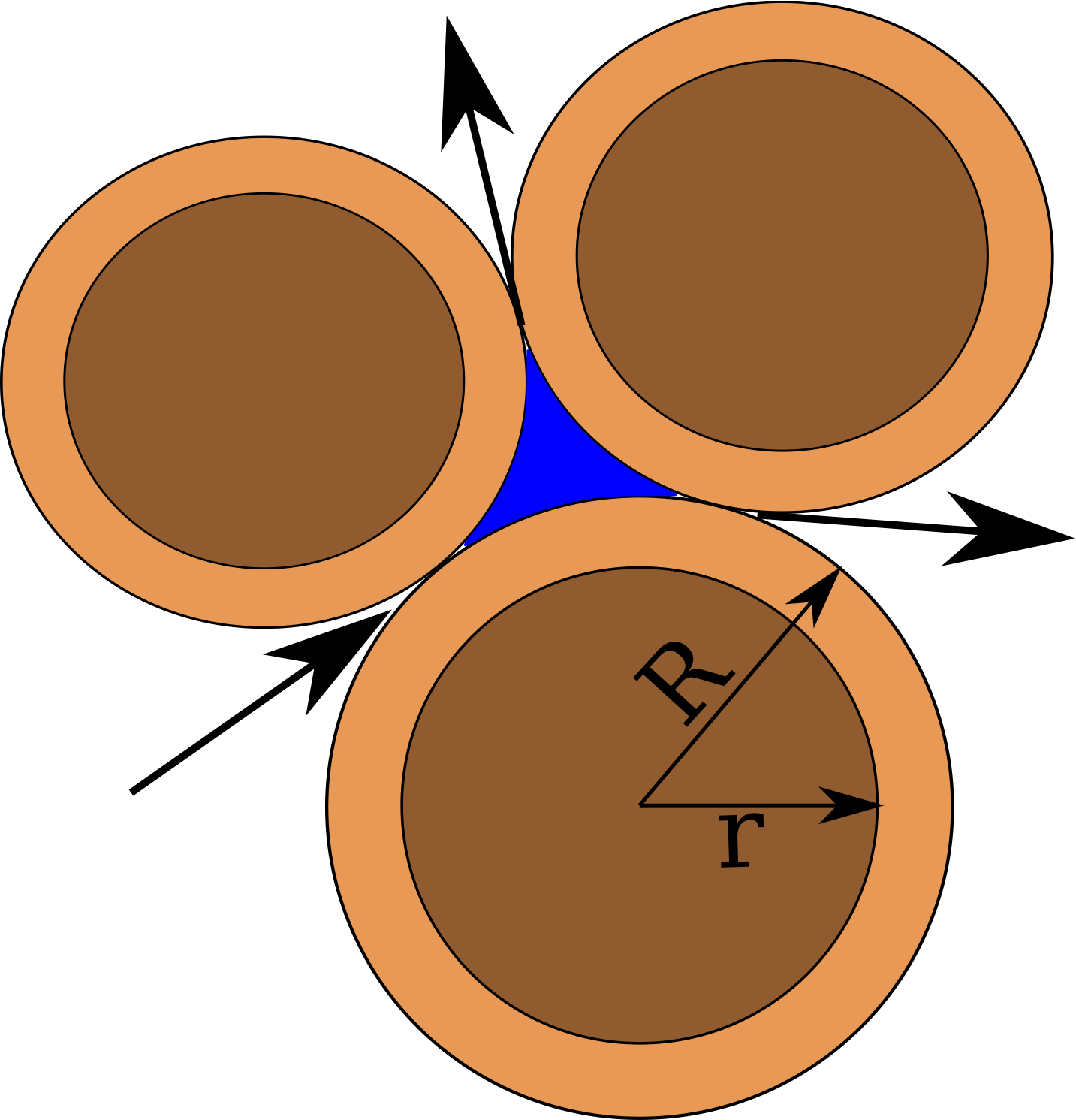

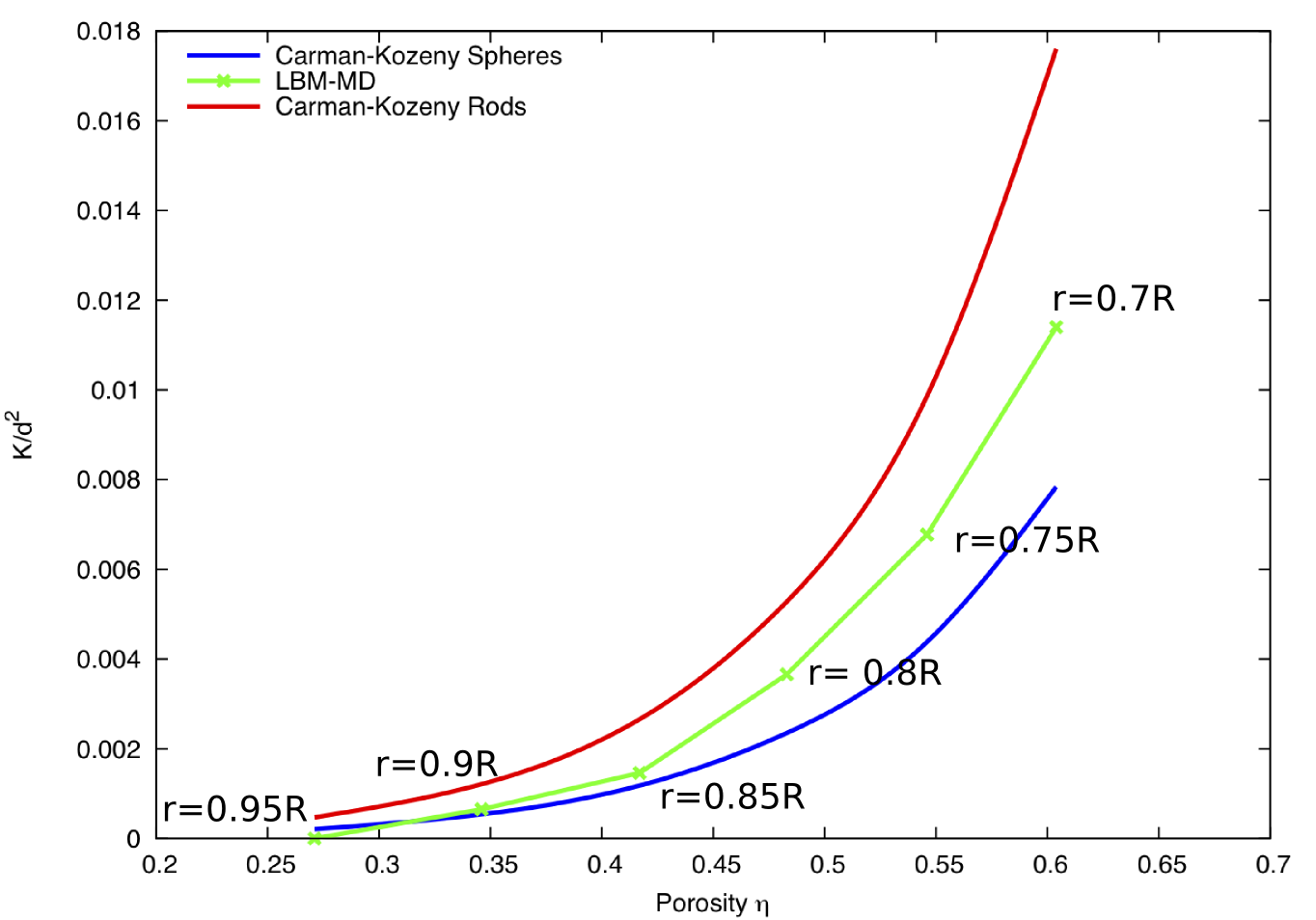

Reduction in radius
Collapse in fluid: Effect of permeability
Reduction ‘r’=0.7R
Reduction ‘r’=0.9R
Collapse in fluid: Effect of permeability

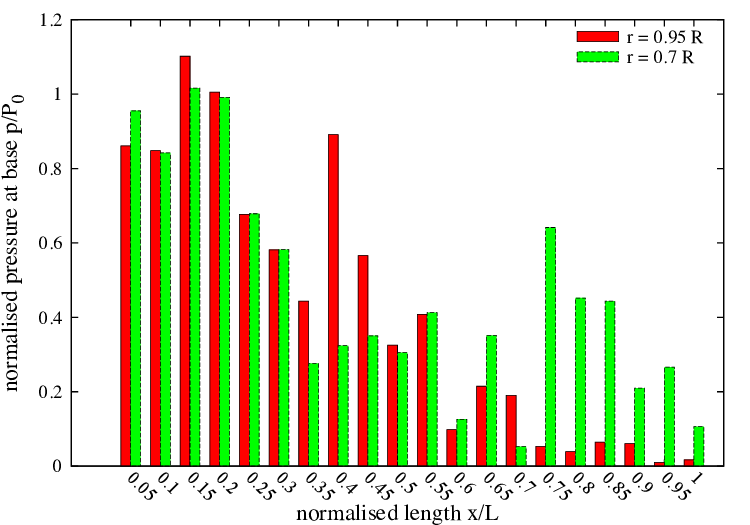

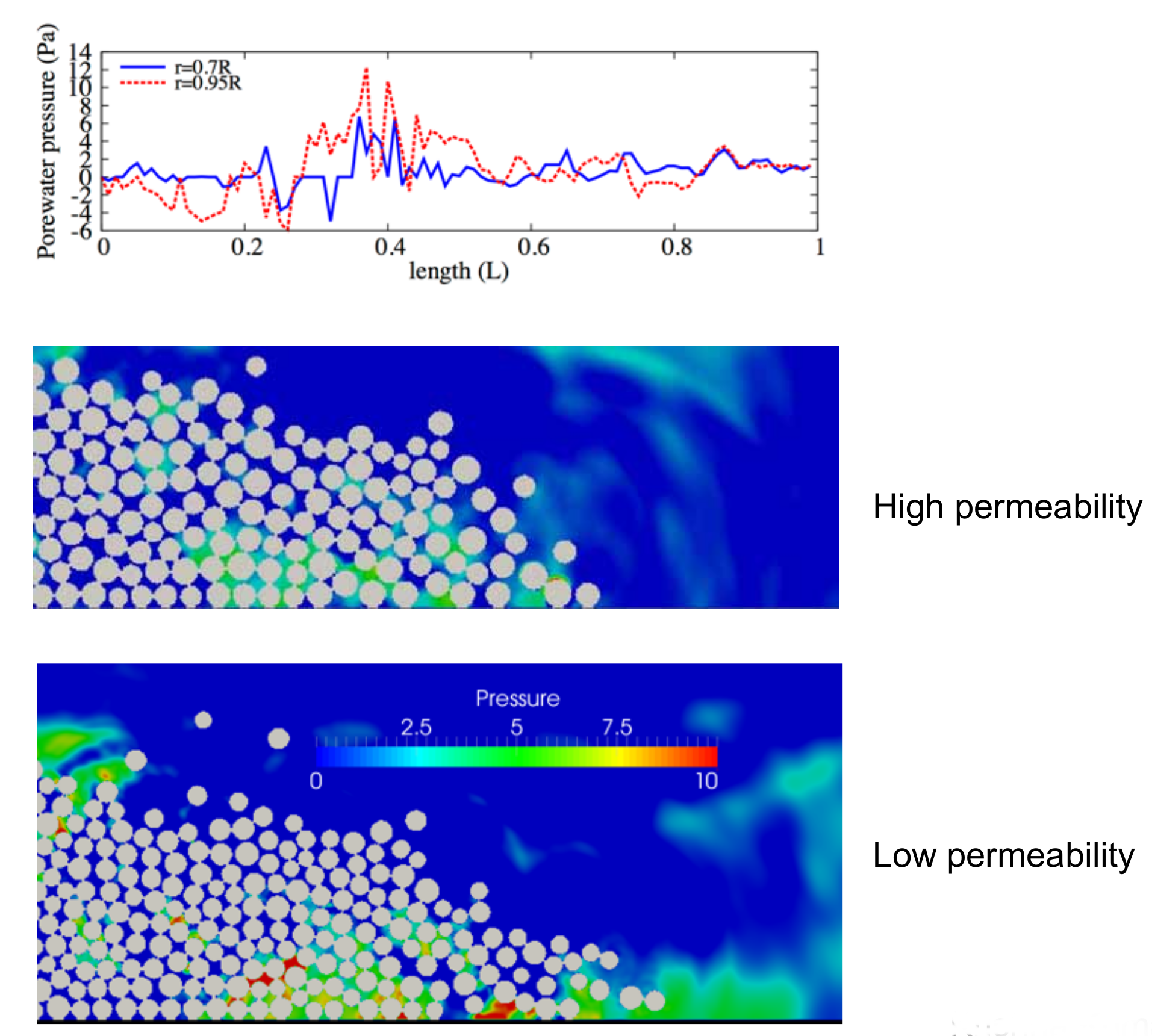

Effect of permeability: effective stress

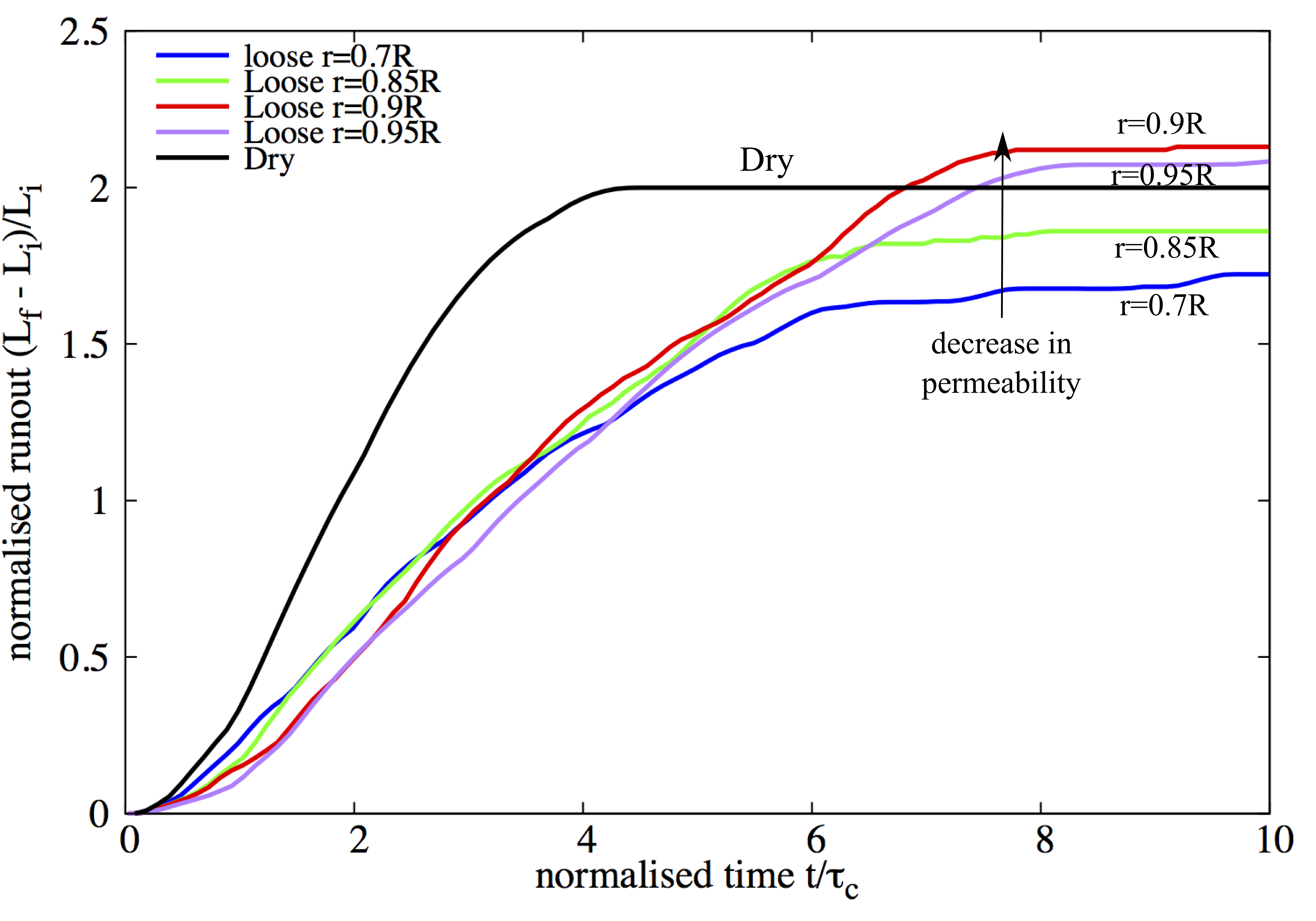

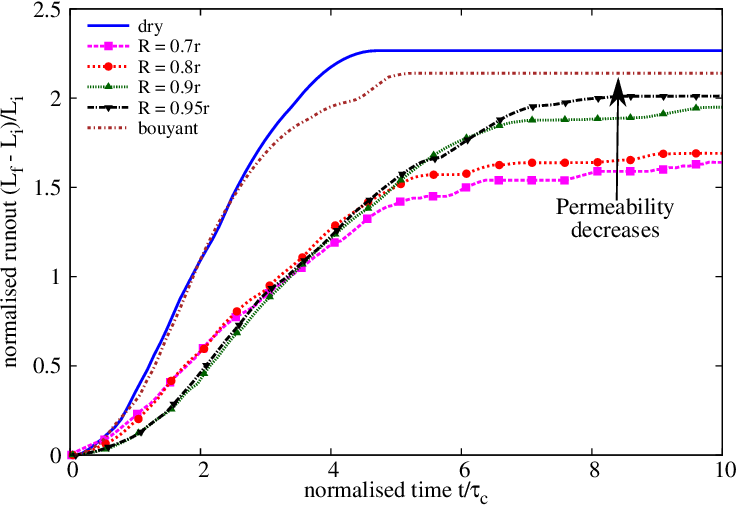

Runout: effect of permeability
Runout: effect of permeability
Collapse on an inclined plane
aspect ratio 'a' of 6 on a slope of 5*
Mechanics of collapse on slopes
LBM - DEM a = 0.8 & 10,000 partilces
- LBM Nodes = 50 Million : DEM grains = 10000 discs
- Real-time = 2 seconds
- Run-time = 4 hours
- Speedup = 25x on a Tesla K20

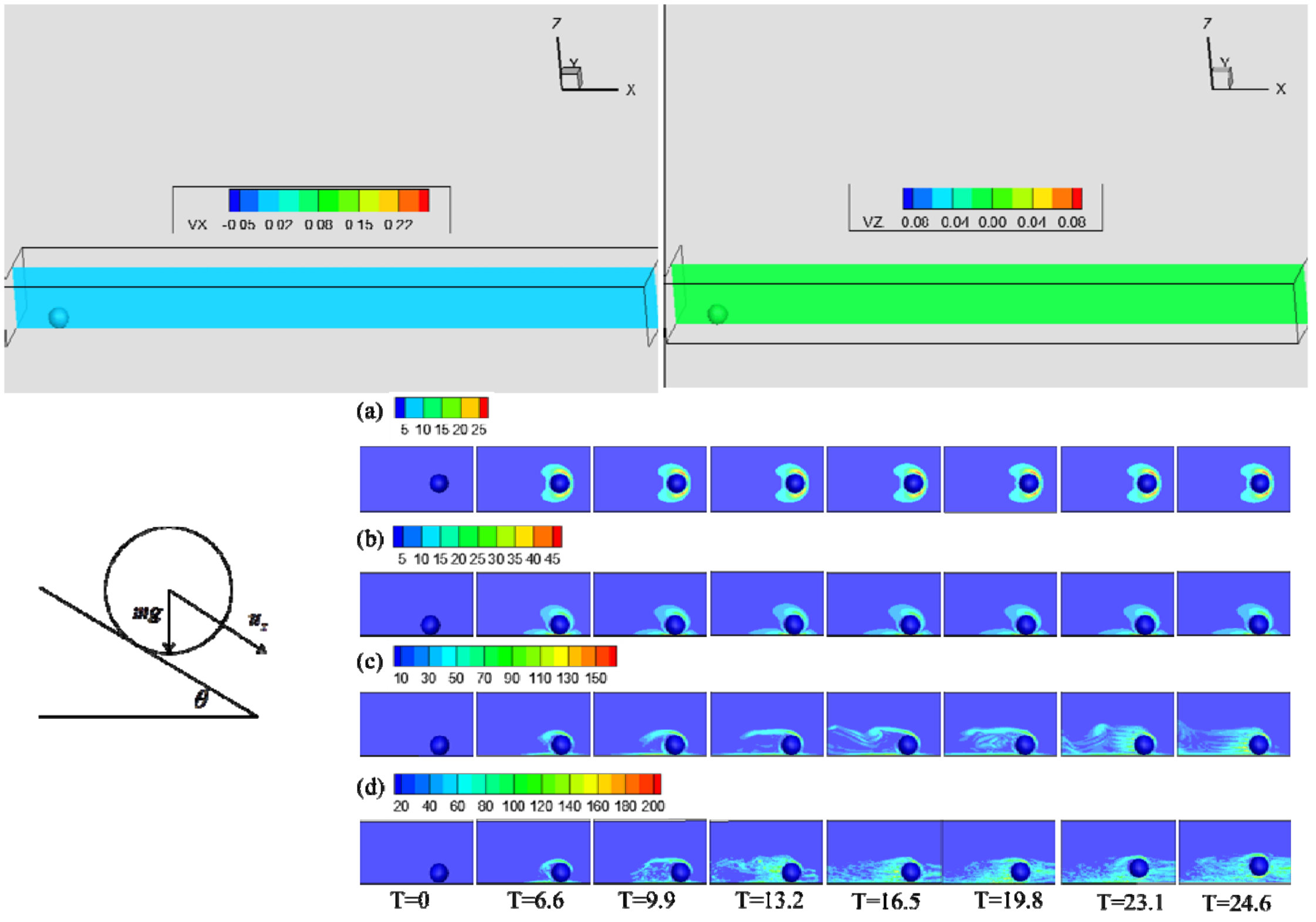

2D to 3D
LBM multi-component multi-phase

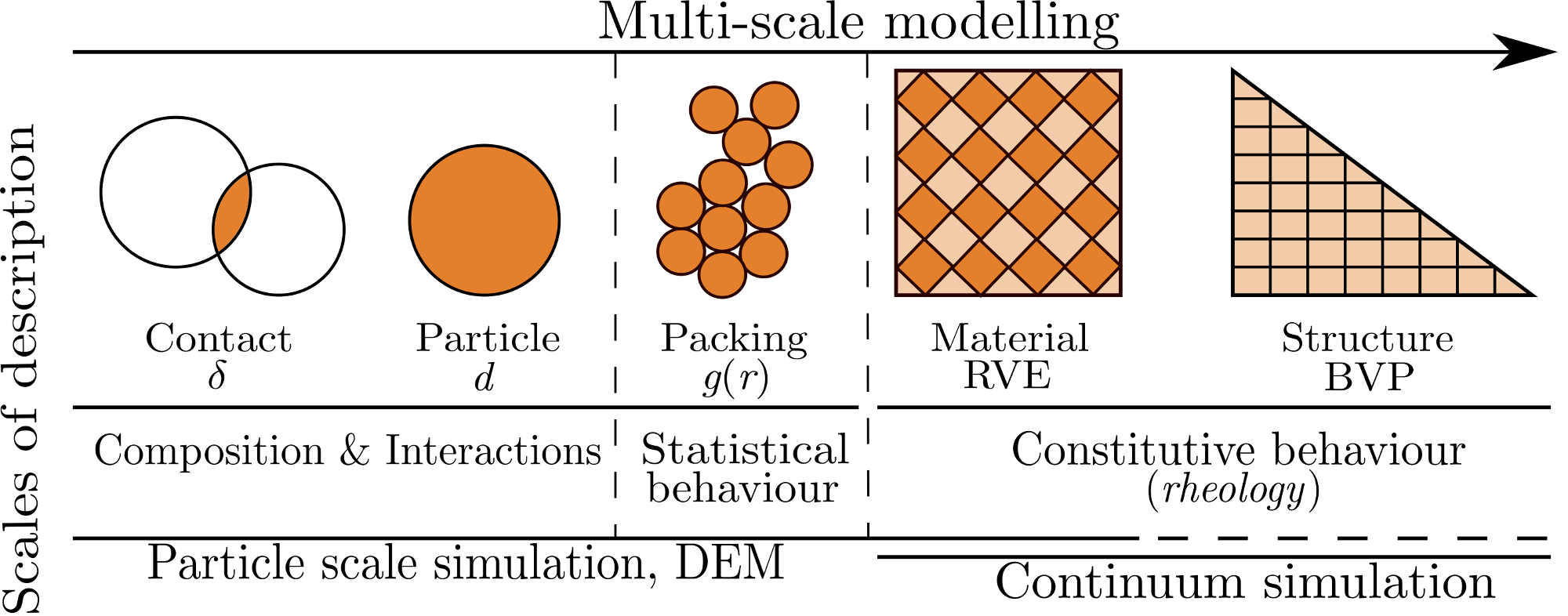

Multiscale modelling in geomechanics
Mesh-based vs Mesh-free techniques

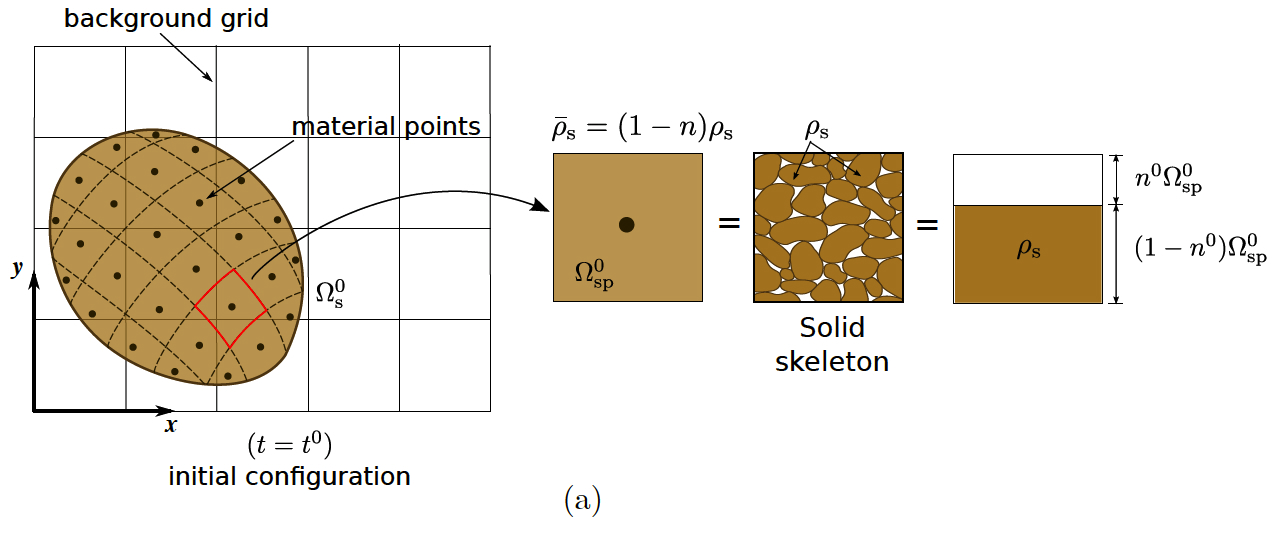

Material Point Method
Material Point Method

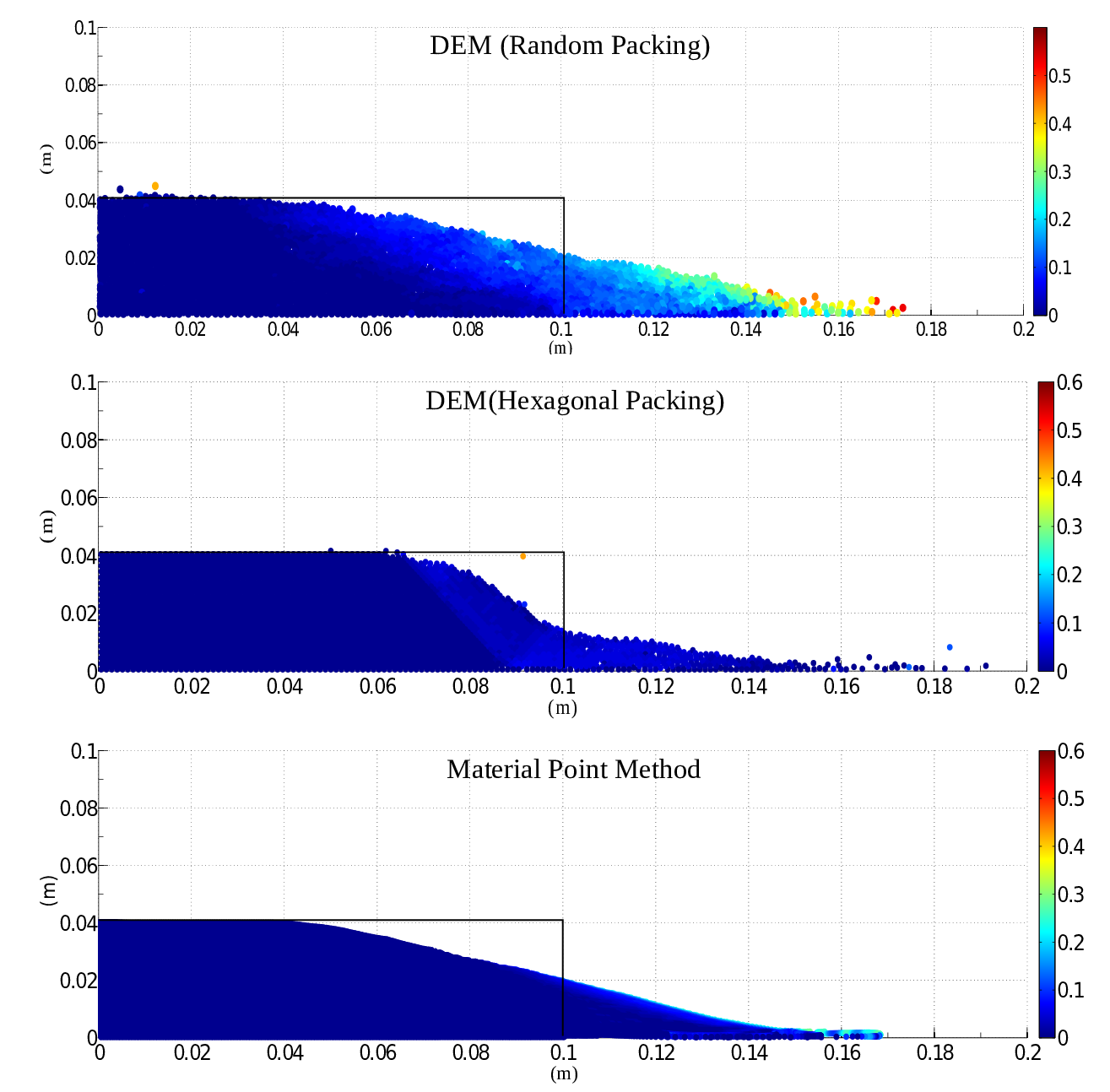

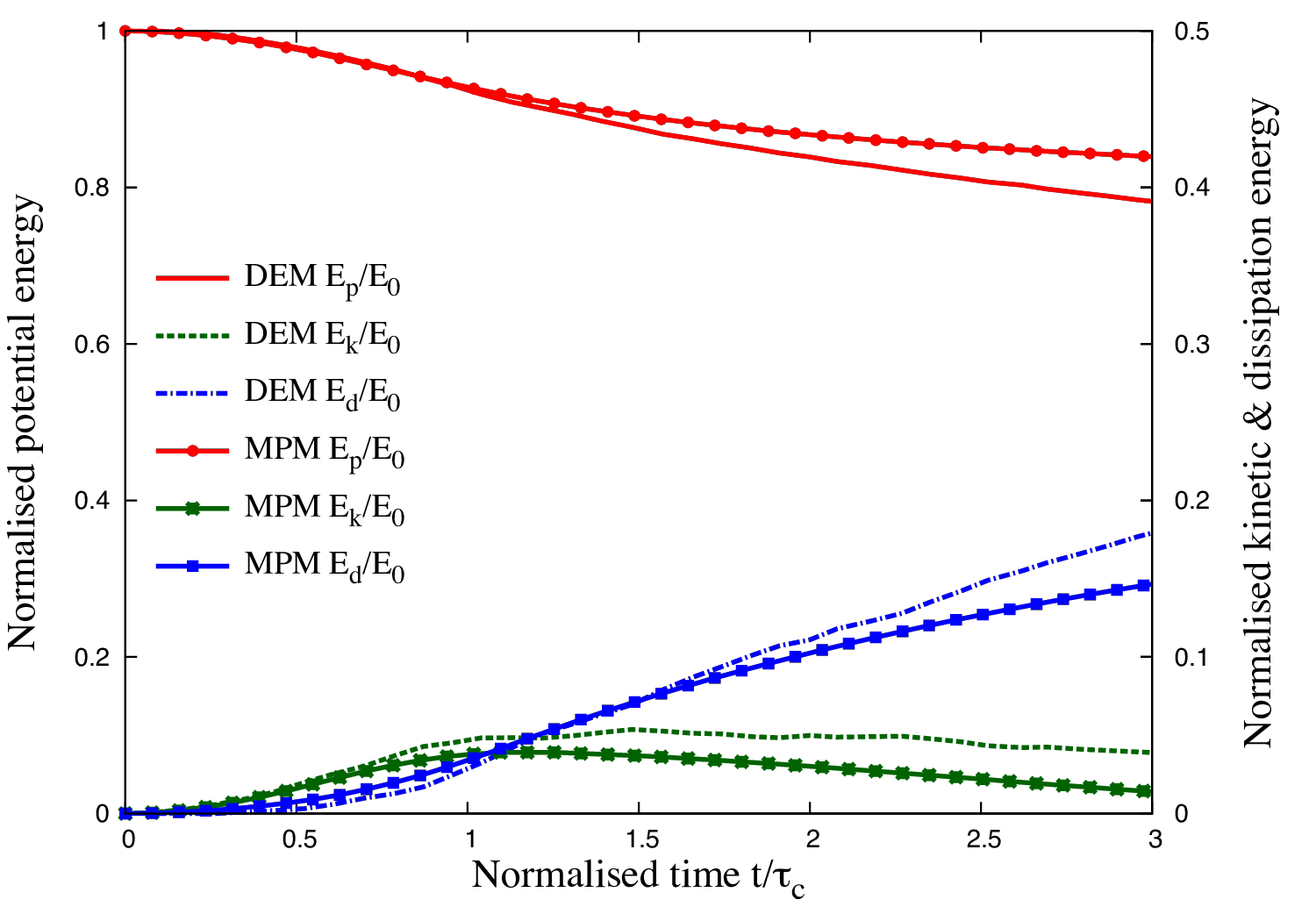

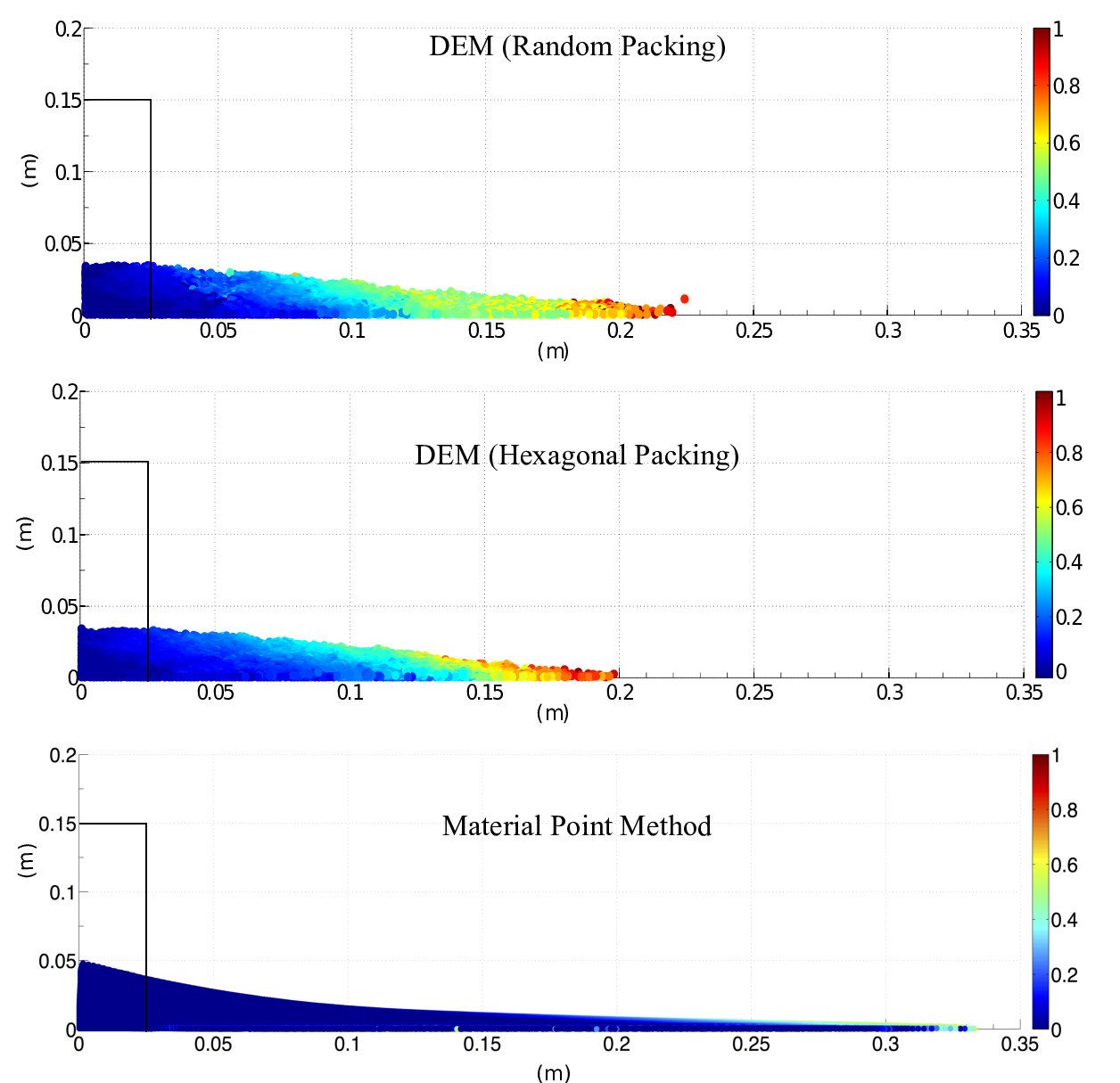

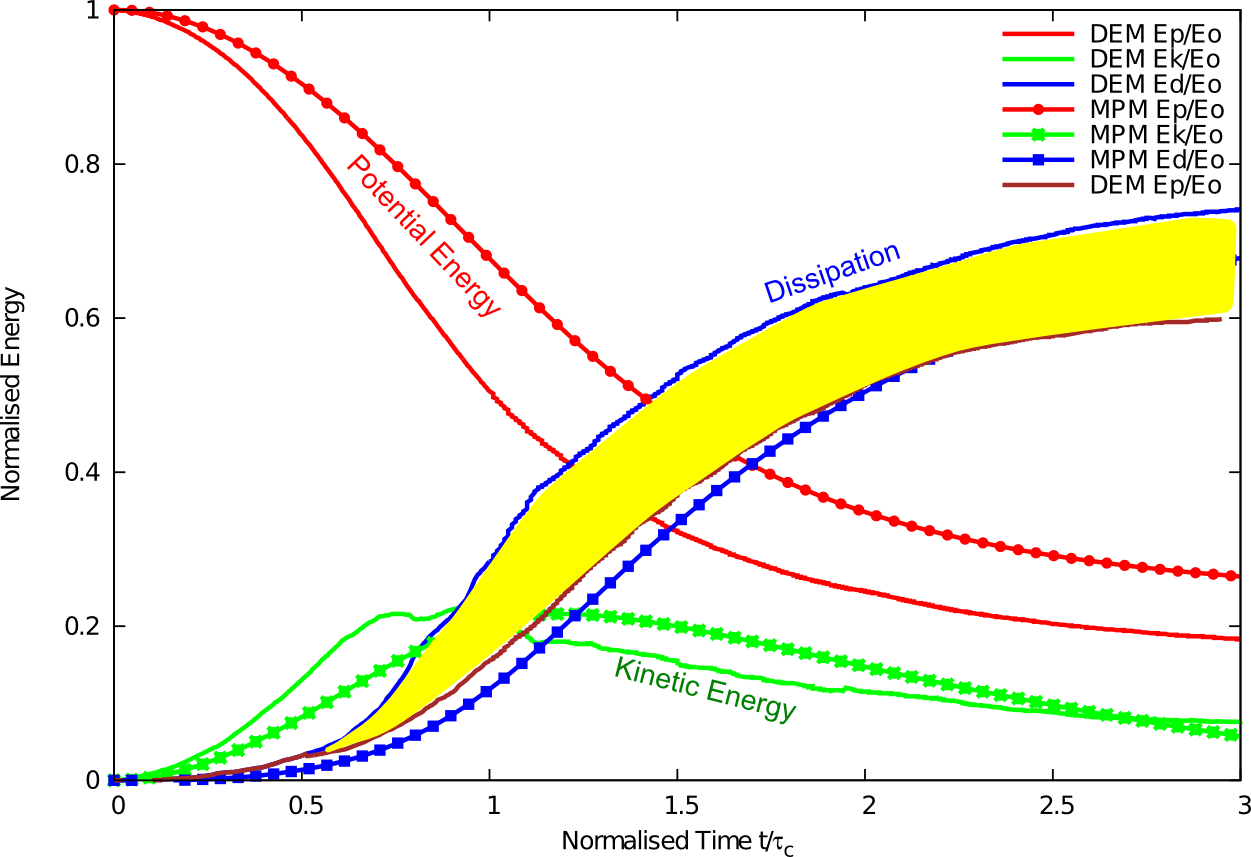

MPM v DEM column collapse
DEM column collapse
MPM v DEM column collapse
MPM v DEM column collapse
MPM slope failure

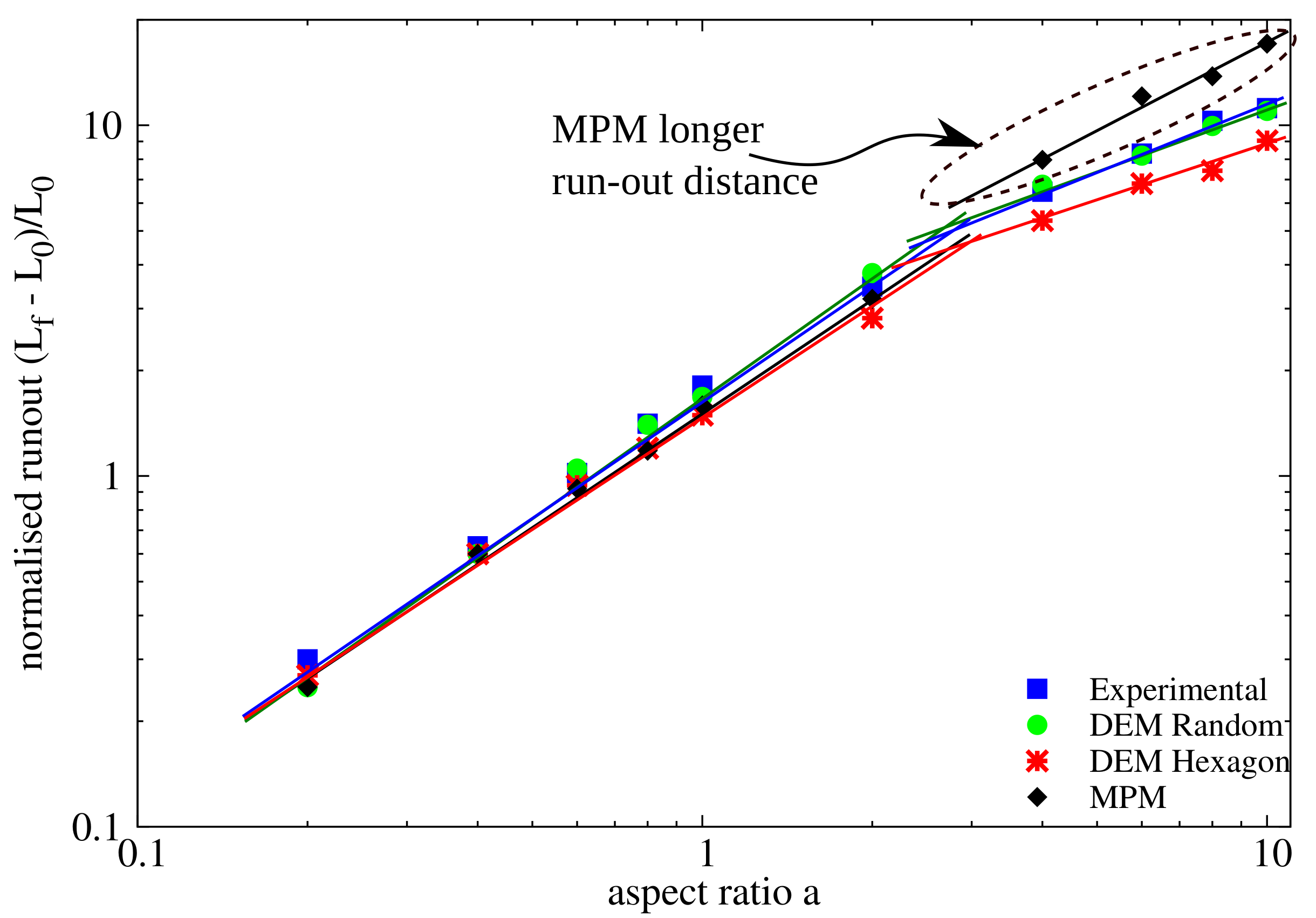

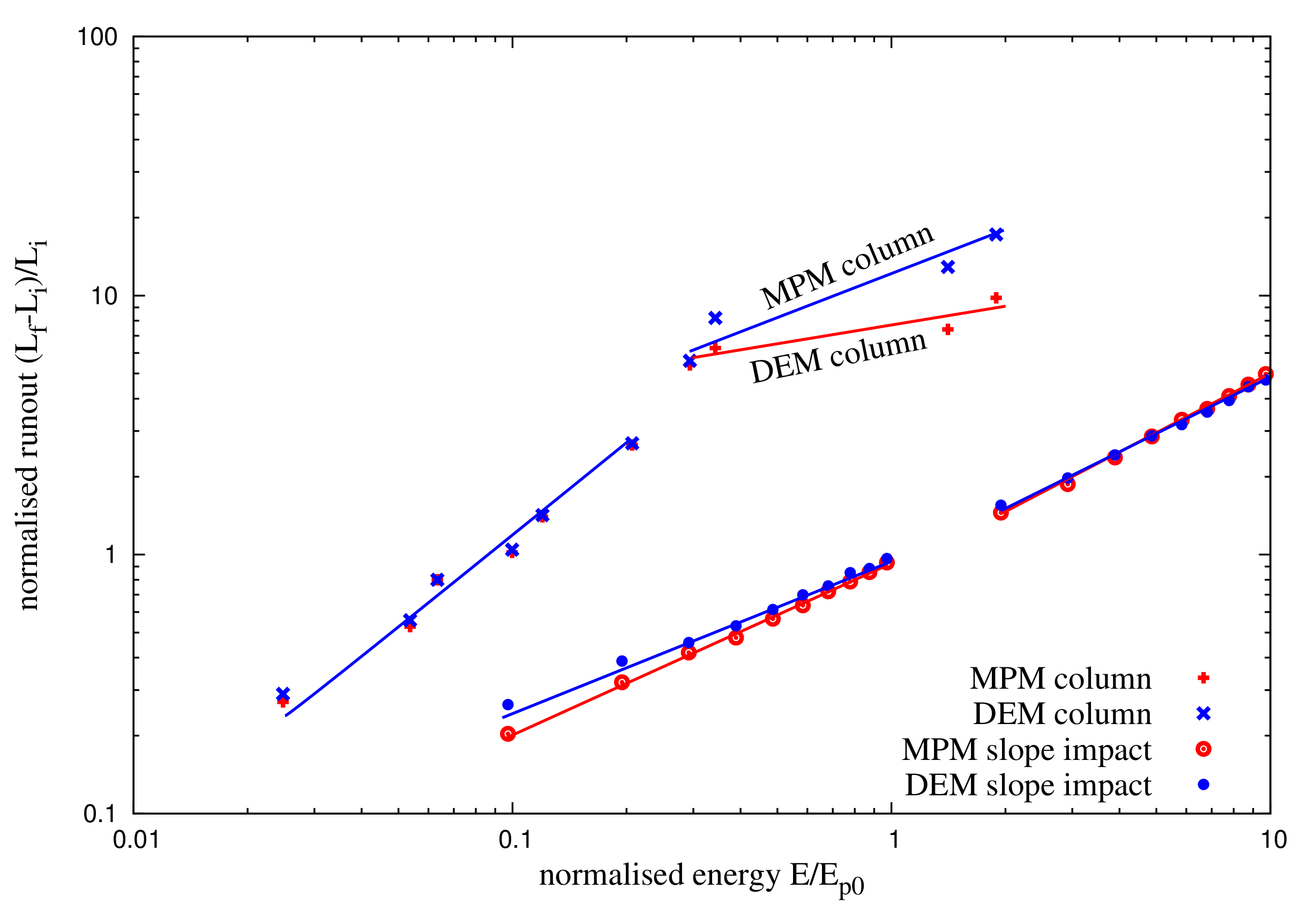

MPM v DEM run-out slope v collapse
MPM slope failure: pore pressure changes
Selborne case study (Alonso et al., 2016)

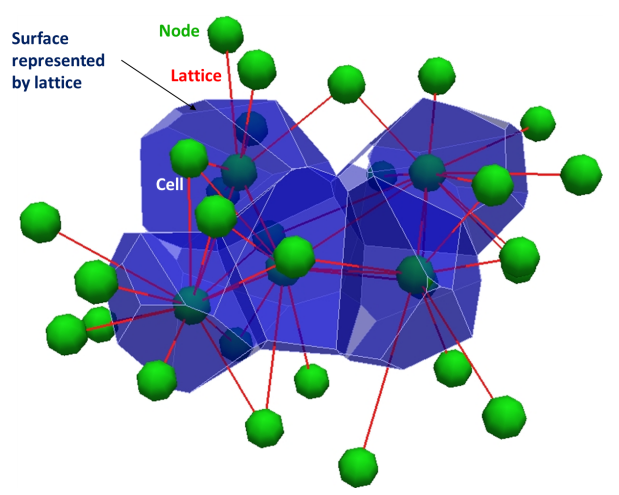

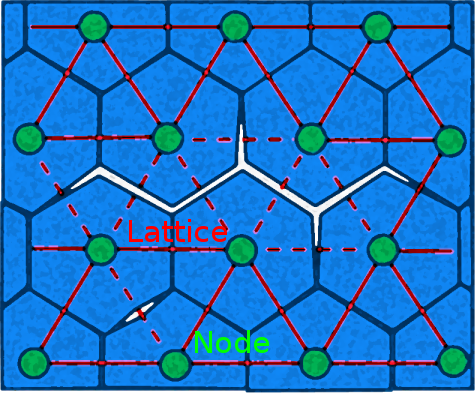

Lattice Element Method
LEM Tension test

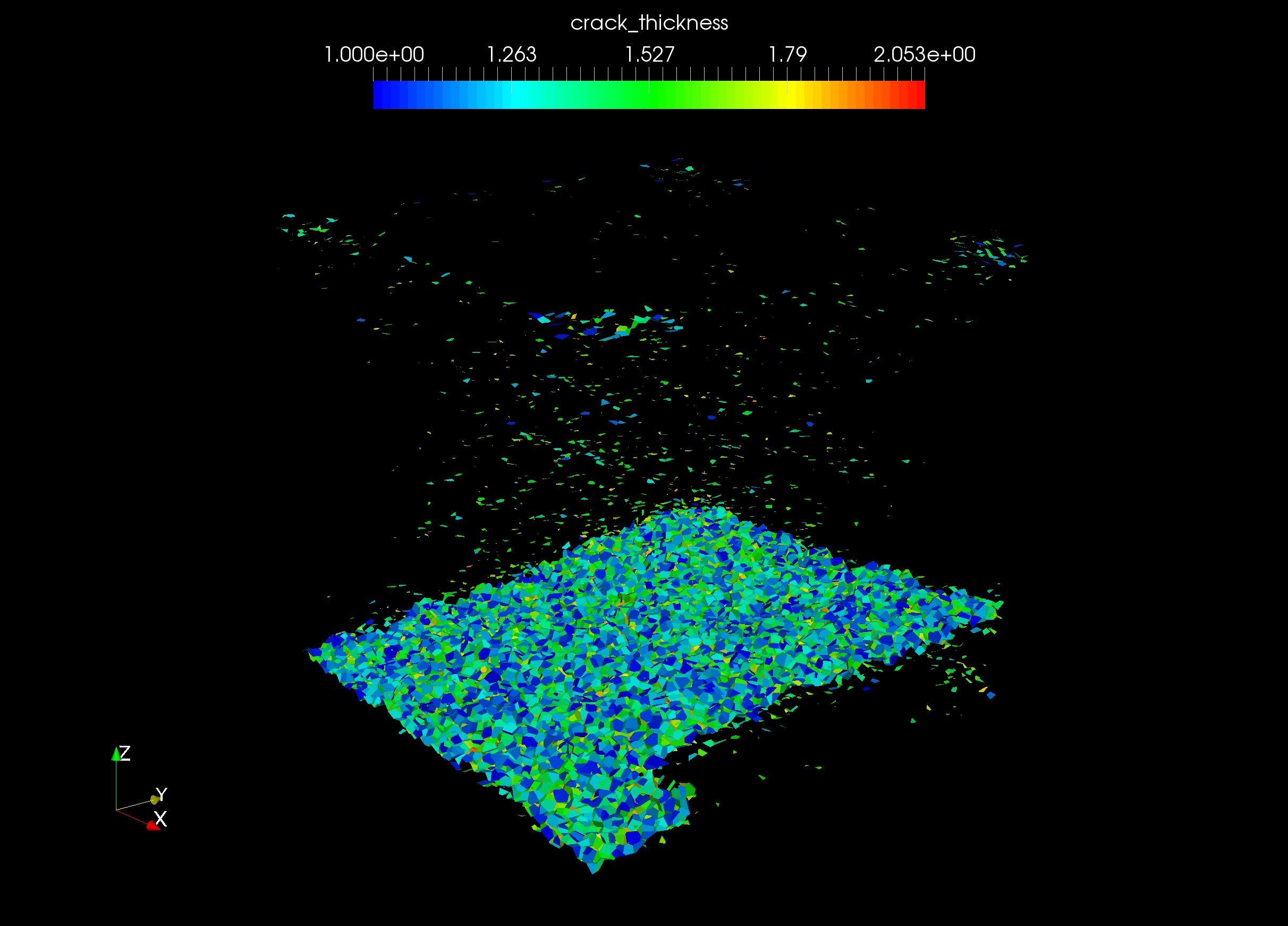

LEM: Tension test (uniform)

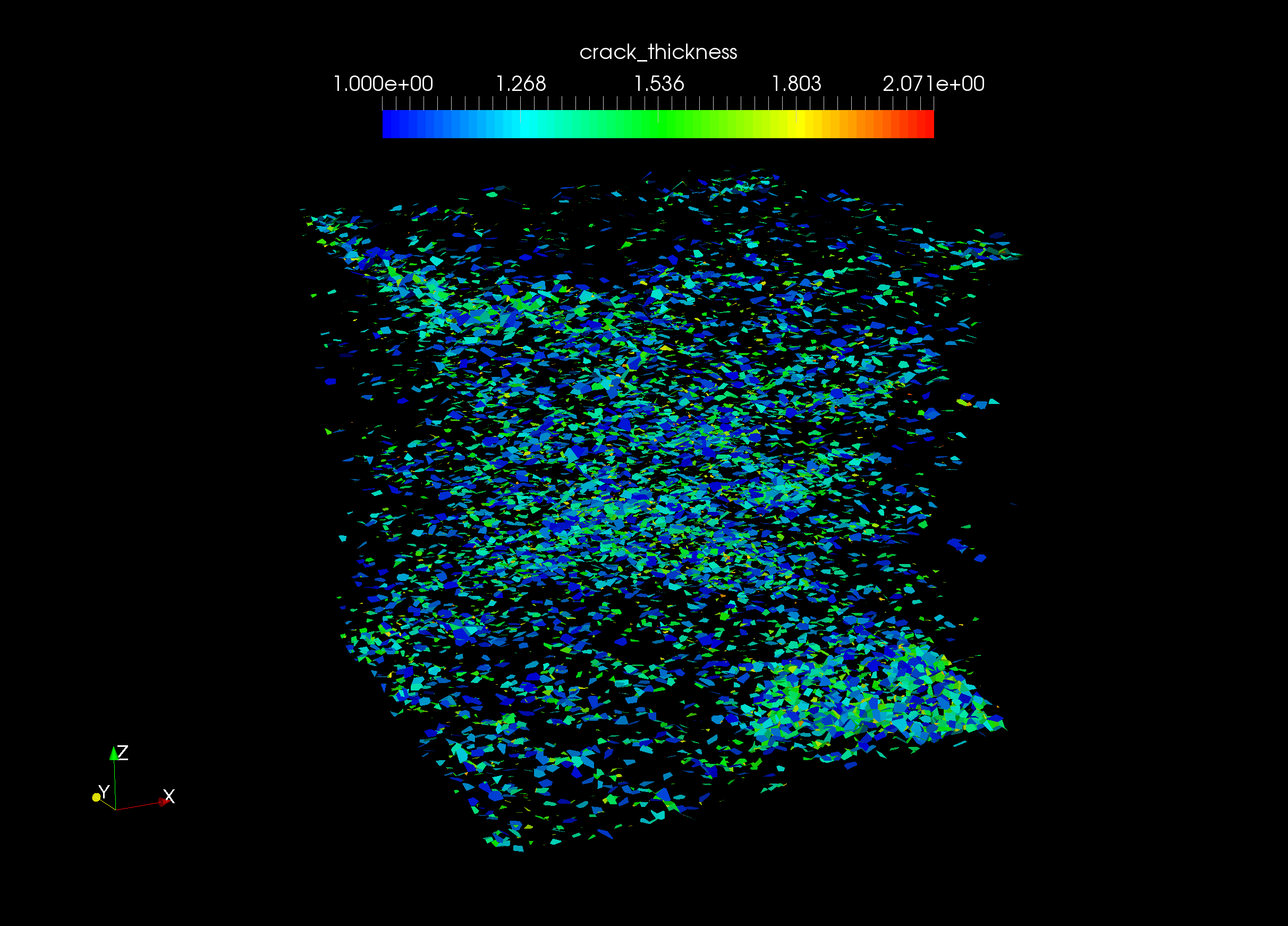

LEM: Tension test (Log-Normal 1.0)

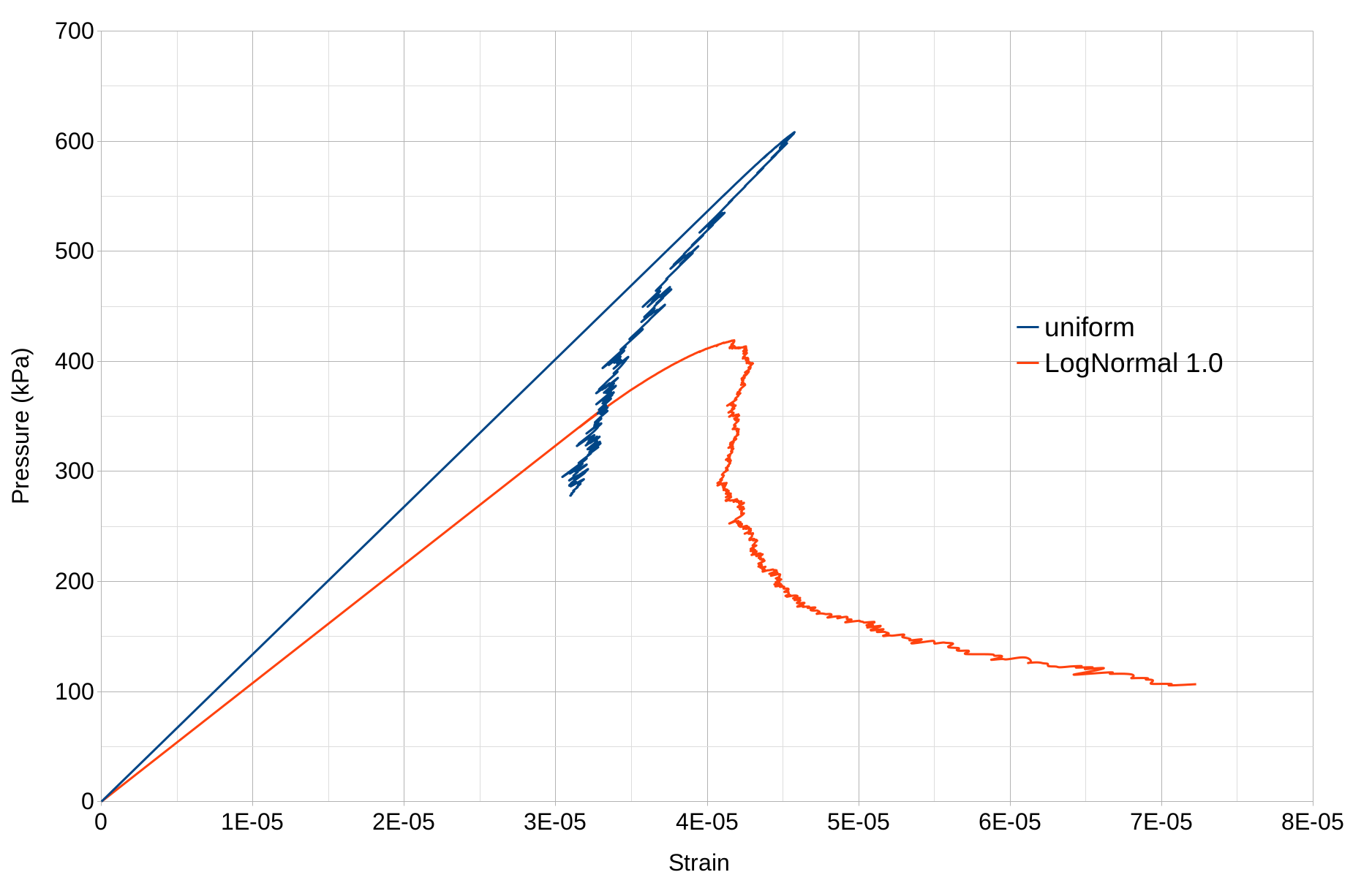

LEM Tension test

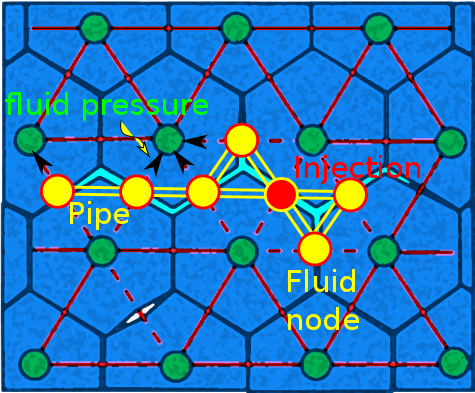

Lattice Element Method - Fluid coupling
- First assume injection pressure $P_{in}$ and injection rate $Q_{in}$ at injection point
- Solve fluid pressure at each fluid node
- Convert pressure to node force and solve LEM to update fracture aperture
- Repeat the above process until convergence
LEM hydraulic fracturing
John Wong, University of Cambridge
Thank you!
