Large deformation modelling in geomechanics
MPM and LBM-DEM
Krishna Kumar, kks32@cam.ac.uk
University of Cambridge
University of Nottingham, UK
8th March 2018
Cambridge-Berkeley Computational Geomechanics
- Material Point Method
- Lattice-Boltzmann + Discrete Element Method
- Finite Element Method - Thermo-Hydro Mechanical Coupling
- Lattice Element Method
Agent Based Modelling of cities
Soga et al., (2017)
Network analysis of Herpes Simplex Virus (HSV2)
Paranthropus boisei is the intermediary species that gave humans herpes!
(Underdown et al., 2017)
(Underdown et al., 2017)

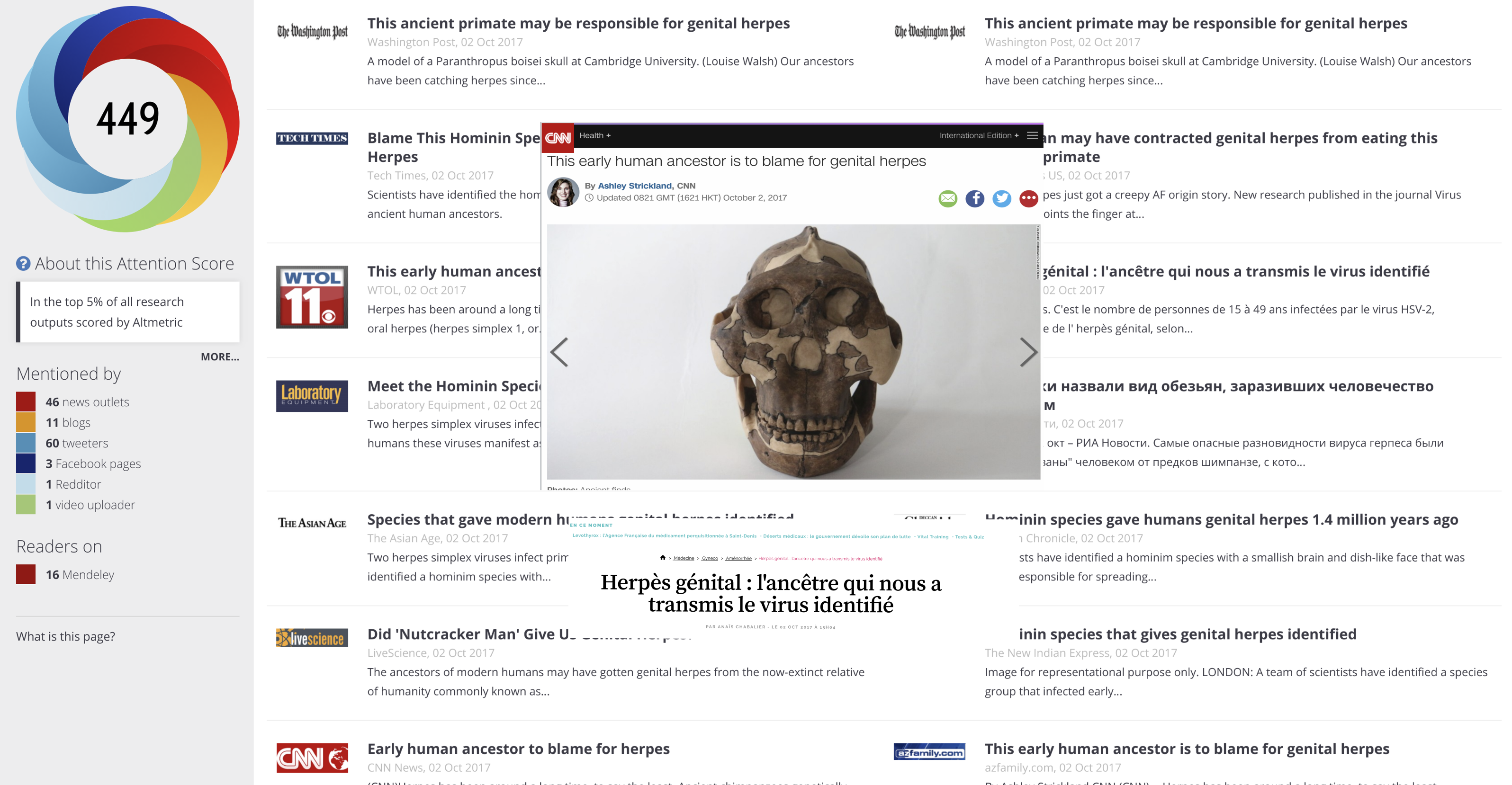

Top 5% of all research outputs scored by Altmetric
#3. We found out who gave us herpes

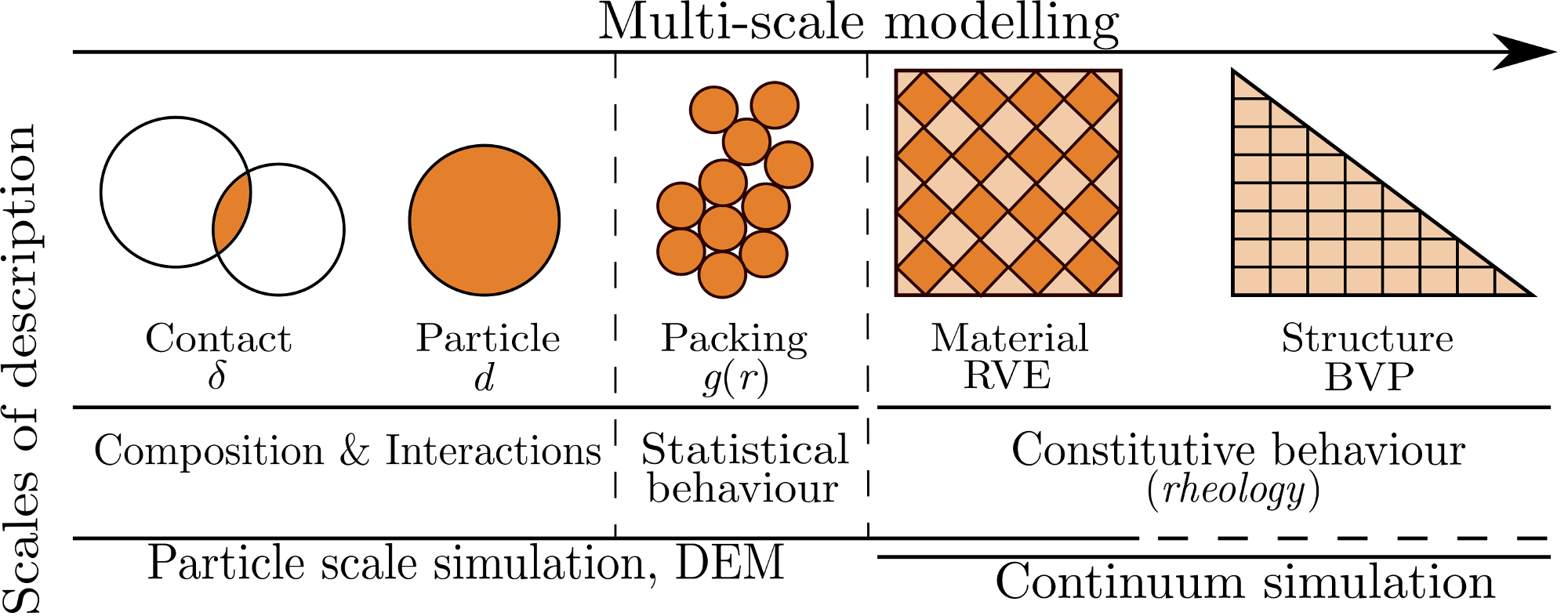

Multiscale modelling in geomechanics

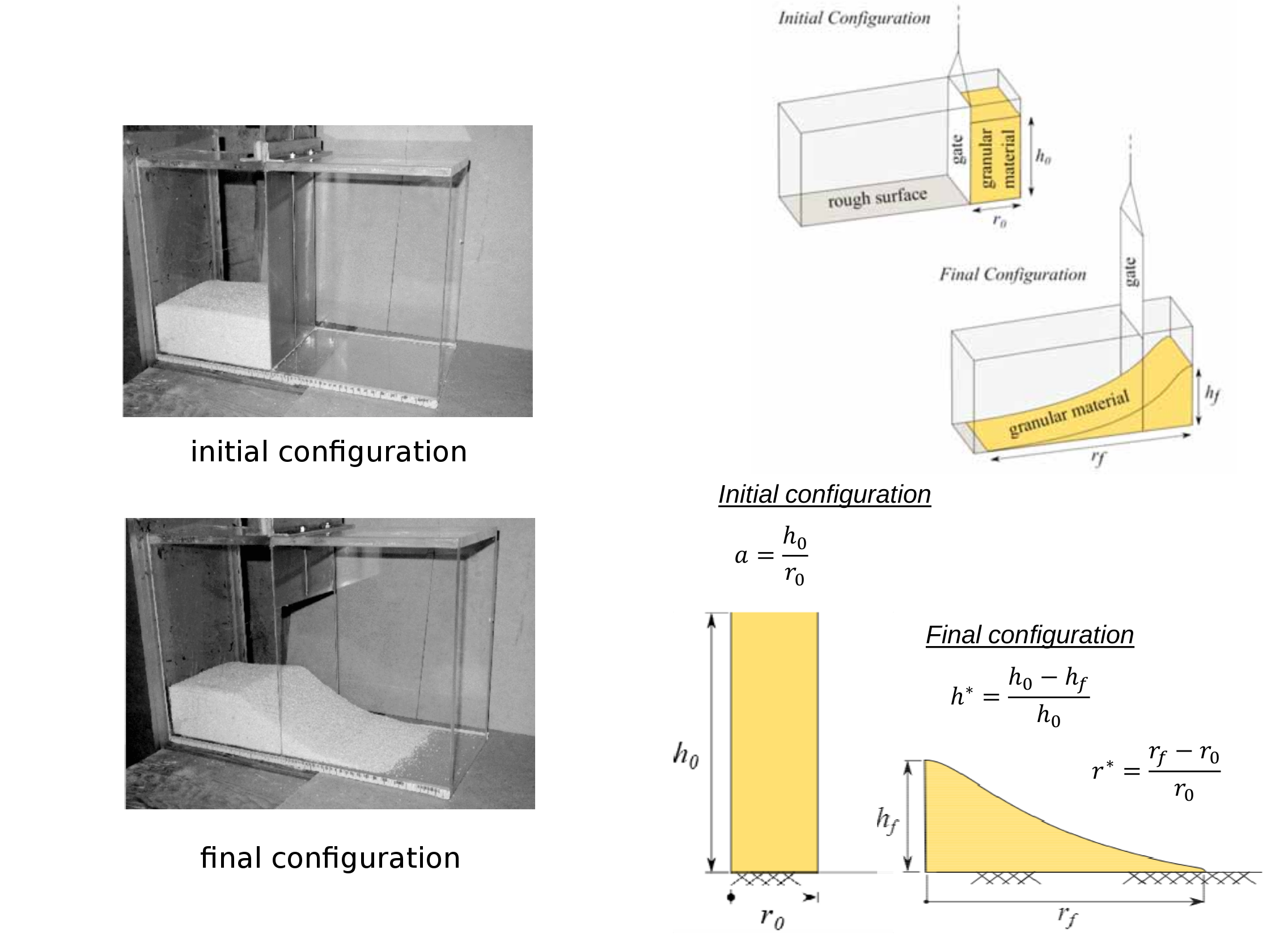

Granular column collapse

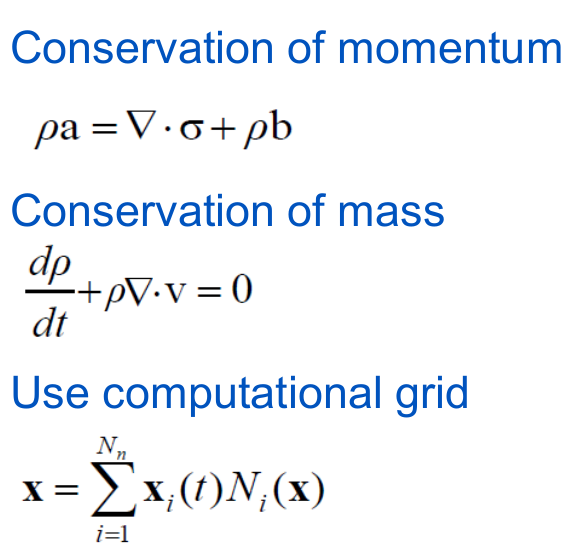

Material Point Method

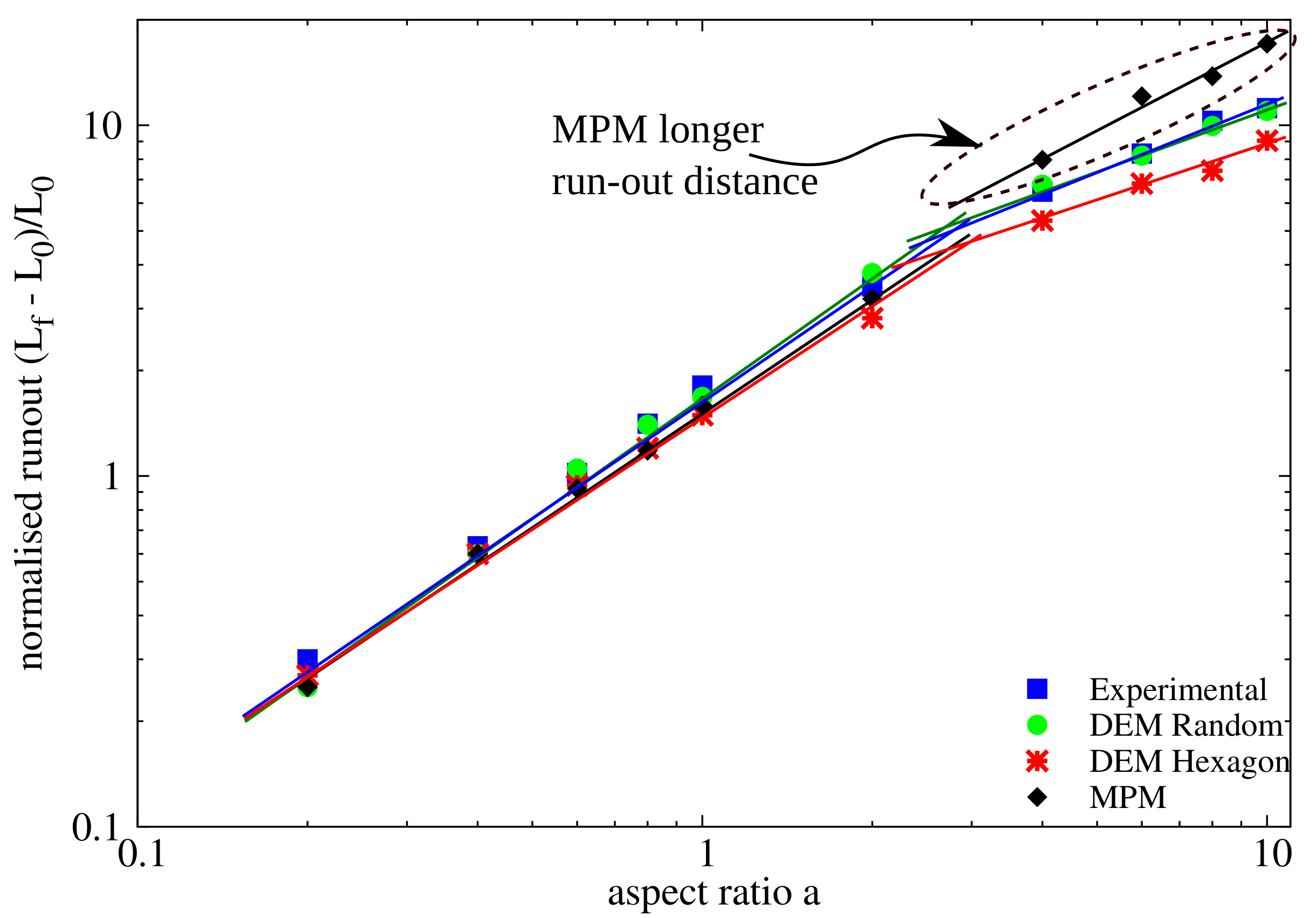

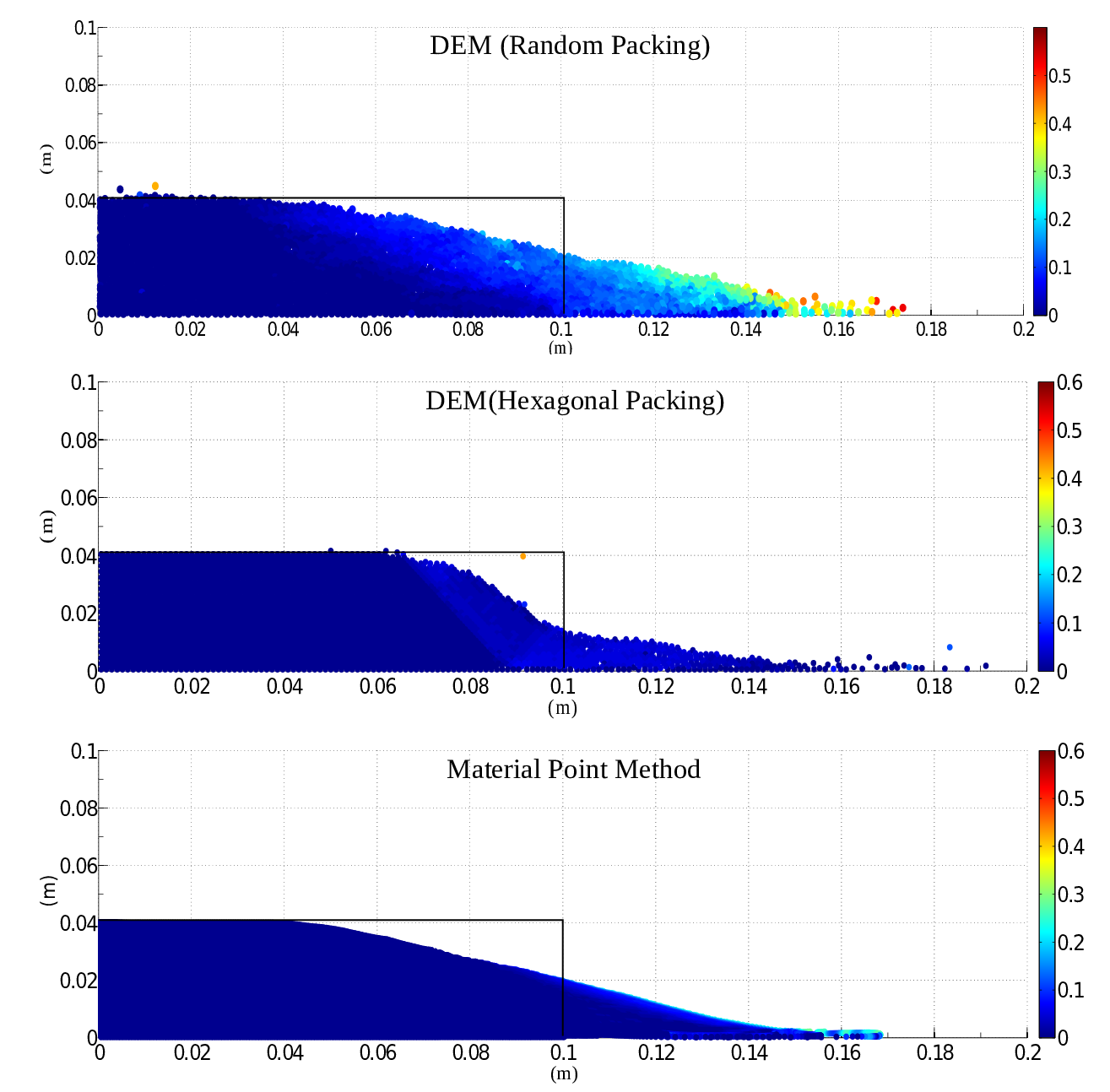

MPM v DEM column collapse

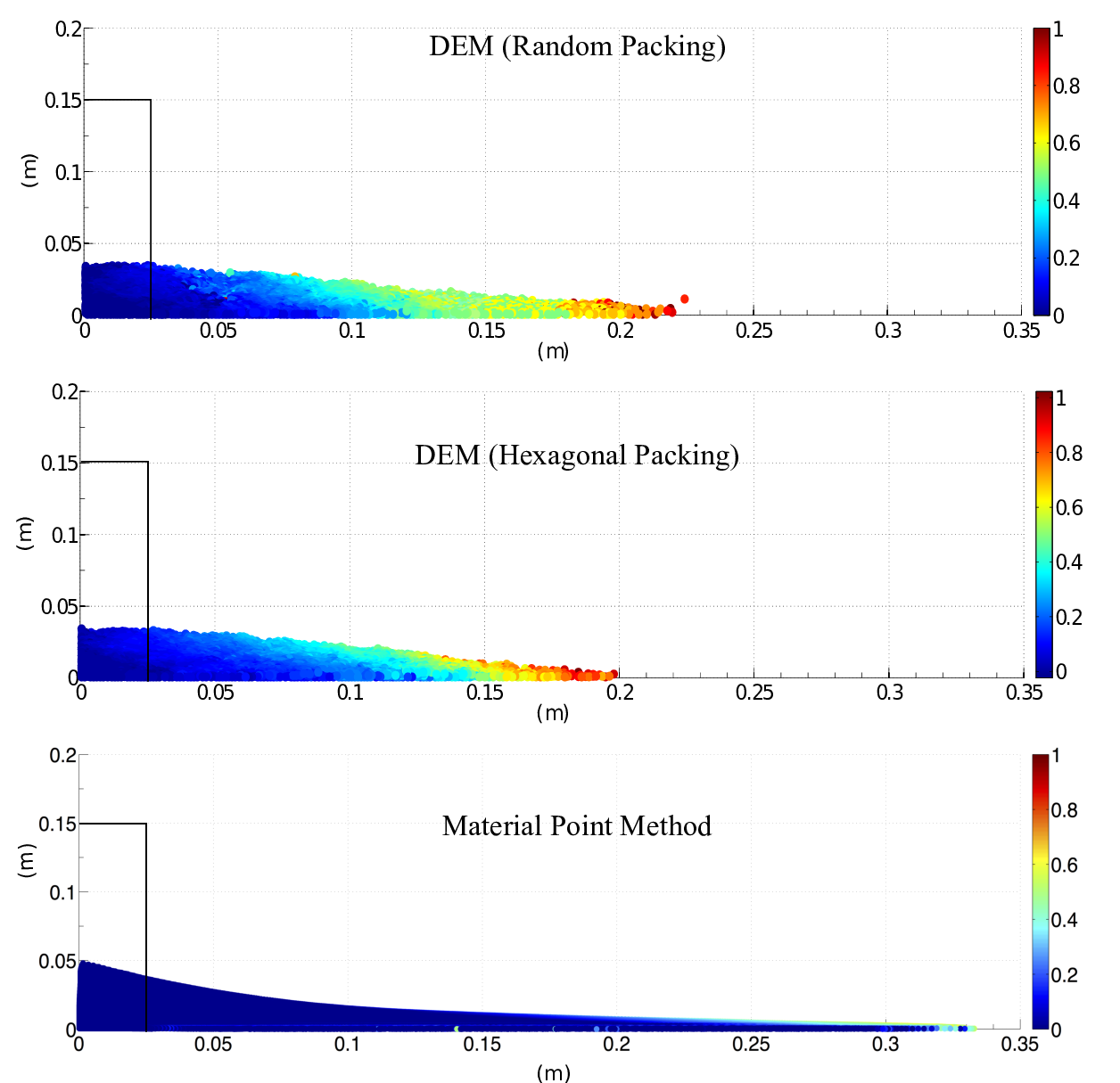

MPM v DEM column collapse
DEM column collapse
MPM slope failure: pore pressure changes
Selborne case study of a 9 m high cut-slope slope (Soga et al., 2016)
LBM - DEM simulation of granular collapse in a fluid
aspect ratio 'a' of 6

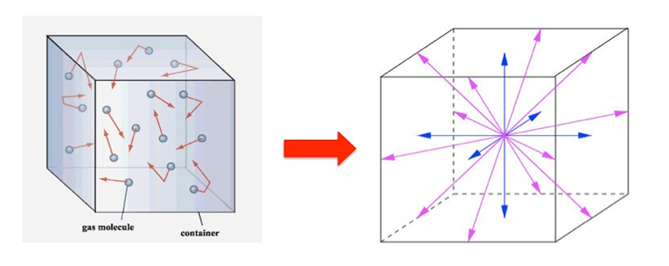

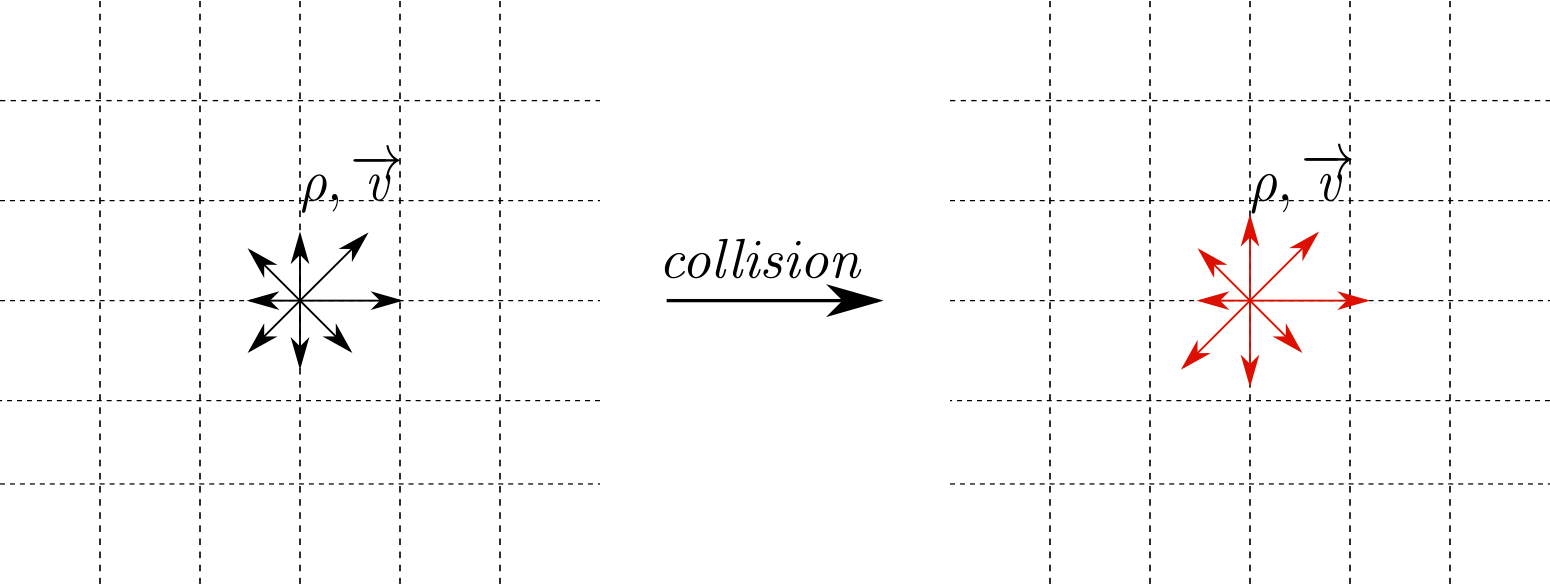

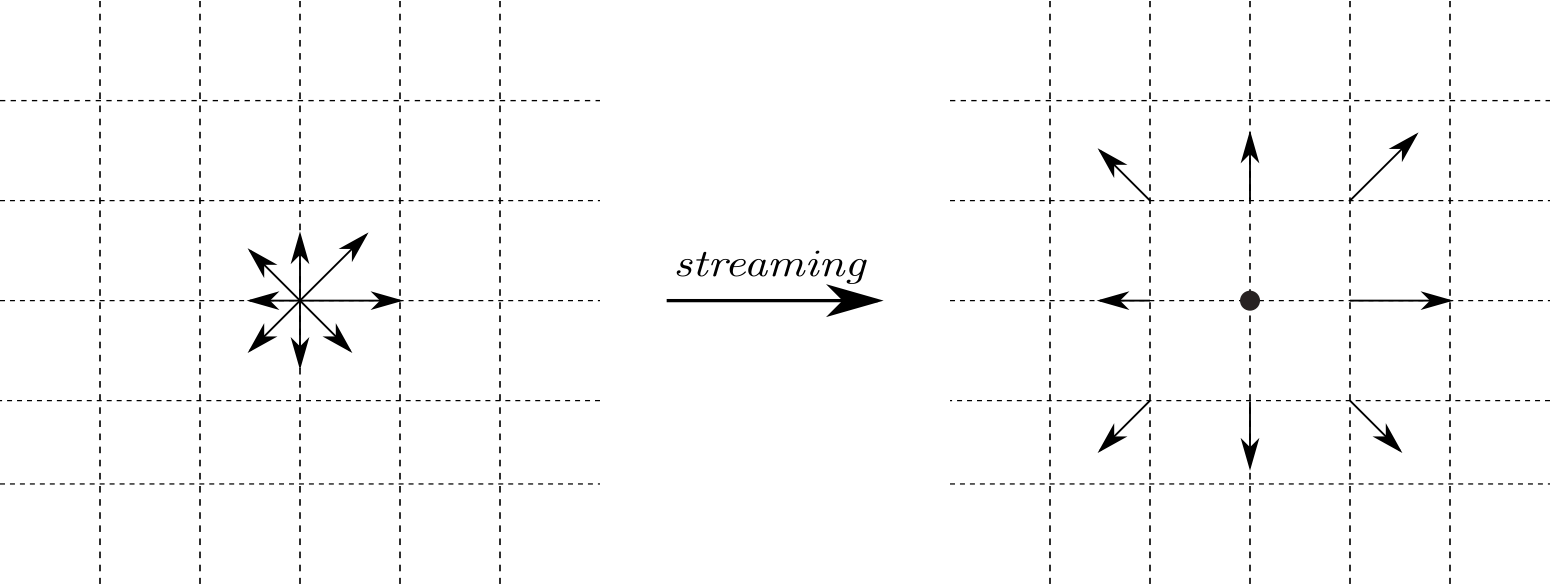

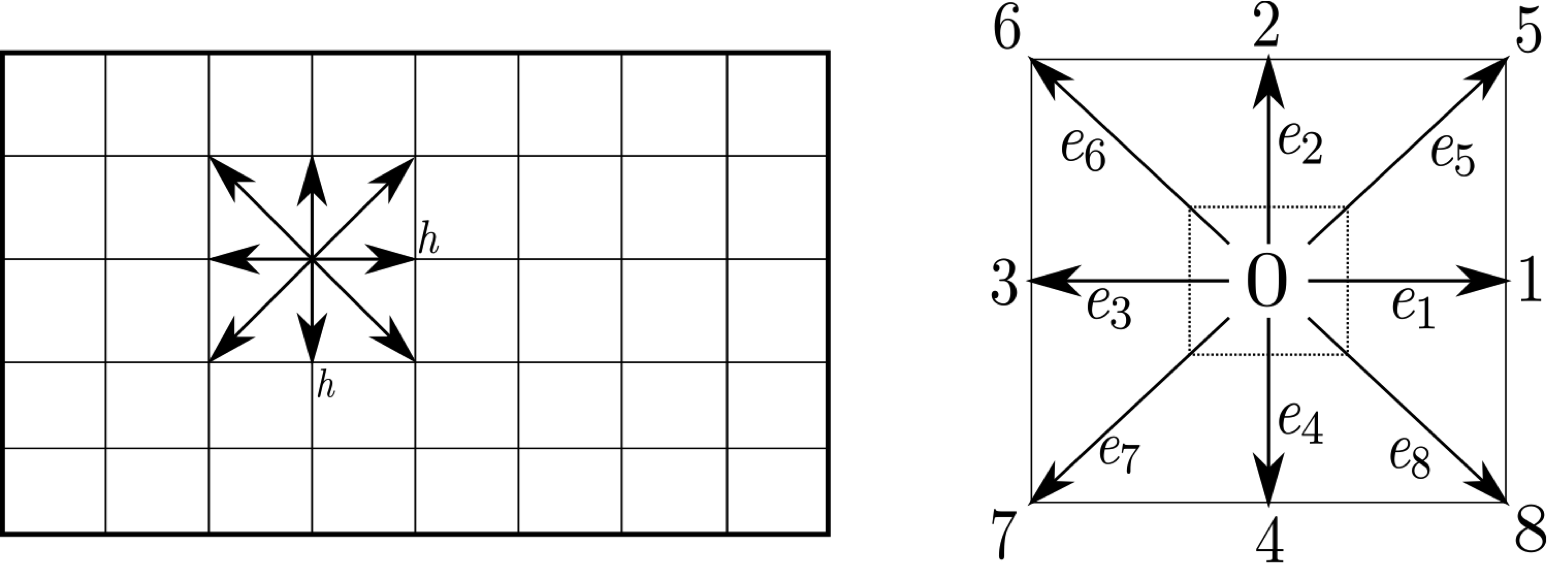

Lattice Boltzmann - MRT
\[f_{i}(x + dx, t +\Delta t) - f_{i}(x, t) = -S_{\alpha i}(
f_{i}(x, t) - f_{i} ^ {eq}(x, t))\]
- $S_{\alpha i}$ is the collisional matrix.
- Probability density of finding a particle : $f(x,\varepsilon, t) $, where, x is position, $\varepsilon$ is velocity, and t is time.
Granular collapse in a fluid: Effect of aspect ratio
aspect ratio 'a' of 0.4
aspect ratio 'a' of 4
Collapse in a fluid: Effect of permeability
Reduction ‘r’=0.7R (High permeability)
Reduction ‘r’=0.9R (Low permeability)

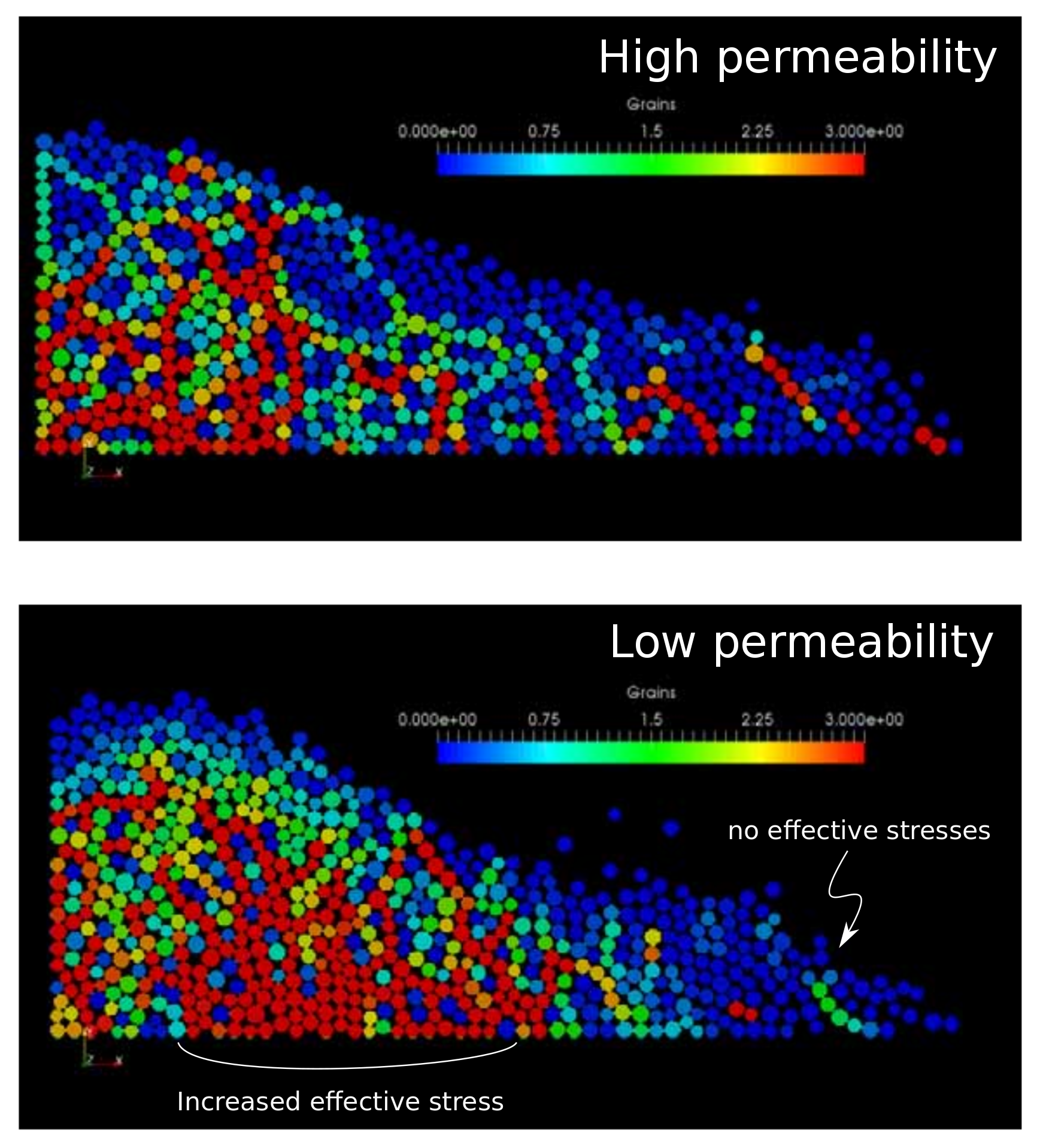

Effect of permeability: stress

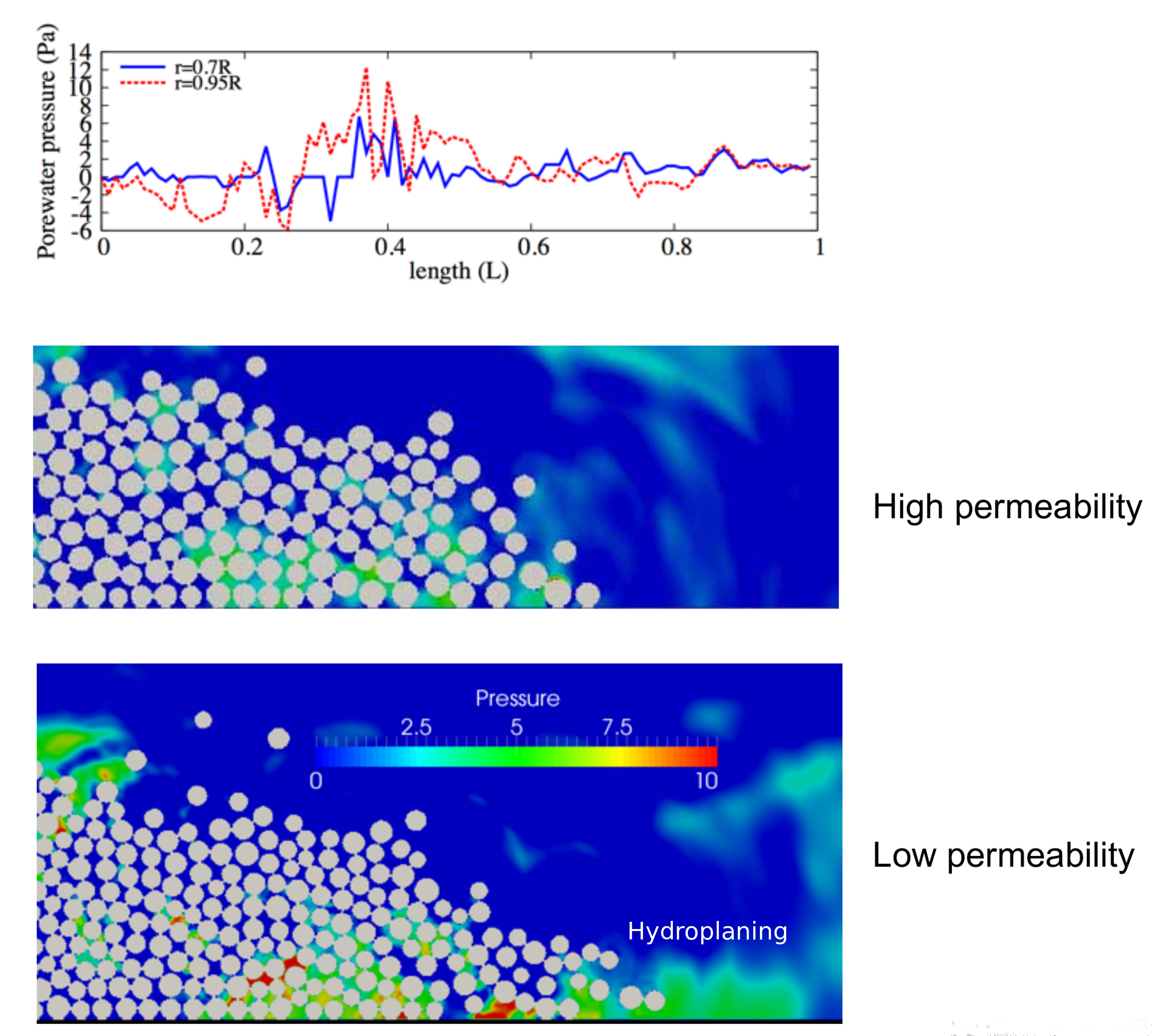

Effect of permeability: pore-water pressure

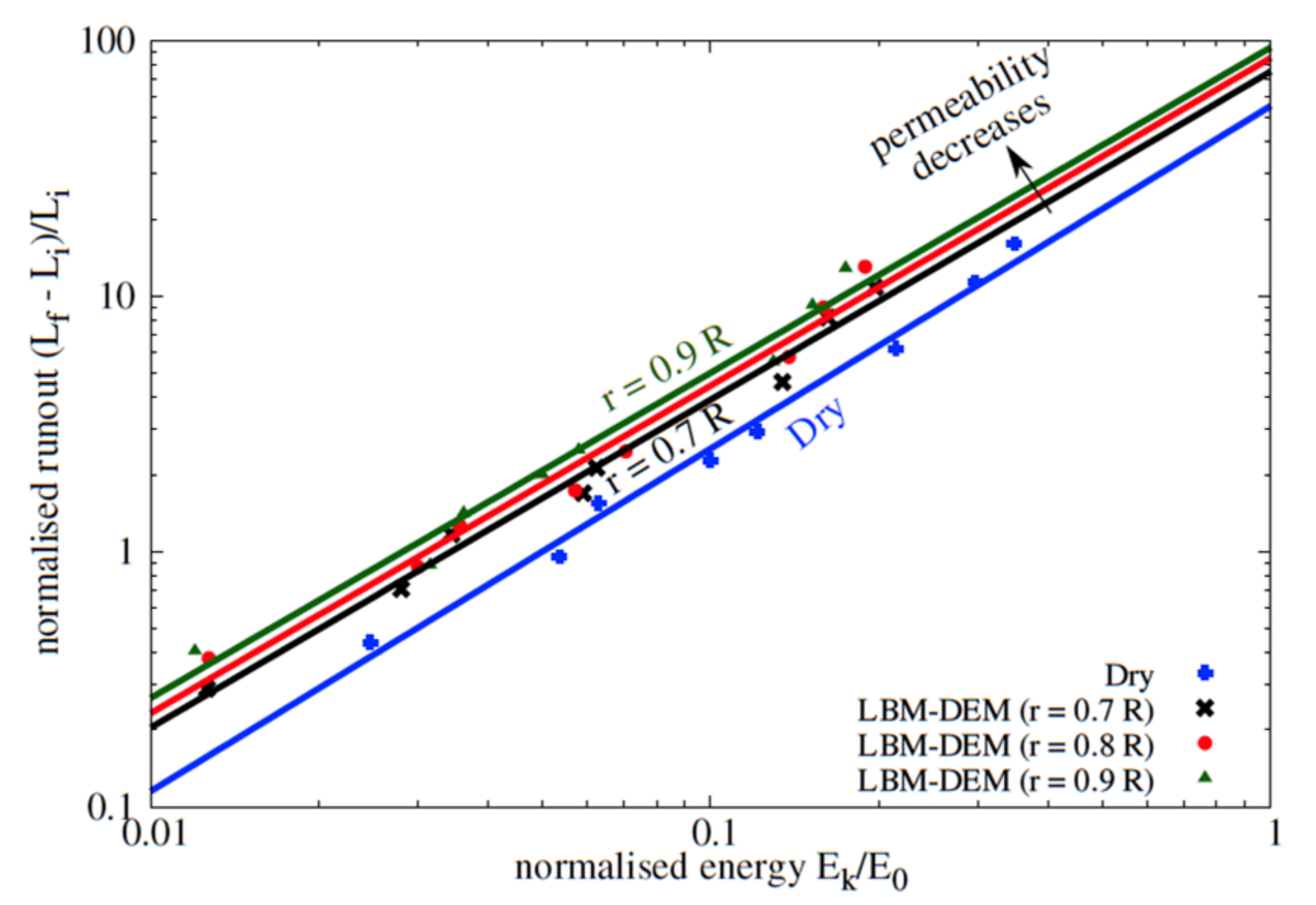

Effect of permeability: runout
Collapse on an inclined plane
aspect ratio 'a' of 6 on a slope of 5*
LBM - DEM a = 0.8 & 10,000 particles
- LBM Nodes = 50 Million : DEM grains = 10000 discs
- Run-time = 4 hours
- Speedup = 125x on a Pascal P100
