Underwater granular flows and unsaturated soil behavior
An LBM-DEM perspective
Krishna Kumar, krishnak@utexas.edu
Rei Hosseini and Qiuyu (Amber) Wang
University of Texas at Austin
TUHH, Germany
22nd Apr 2021
Geoelements Extremescale Computational Geomechanics
- Material Point Method
- Lattice-Boltzmann + Discrete Element Method
- Finite Element Method - Thermo-Hydro Mechanical Coupling
- Lattice Element Method
Possible boundary conditions of submarine run‐out
- Presence of ambient water (larger drag force & less gravity).

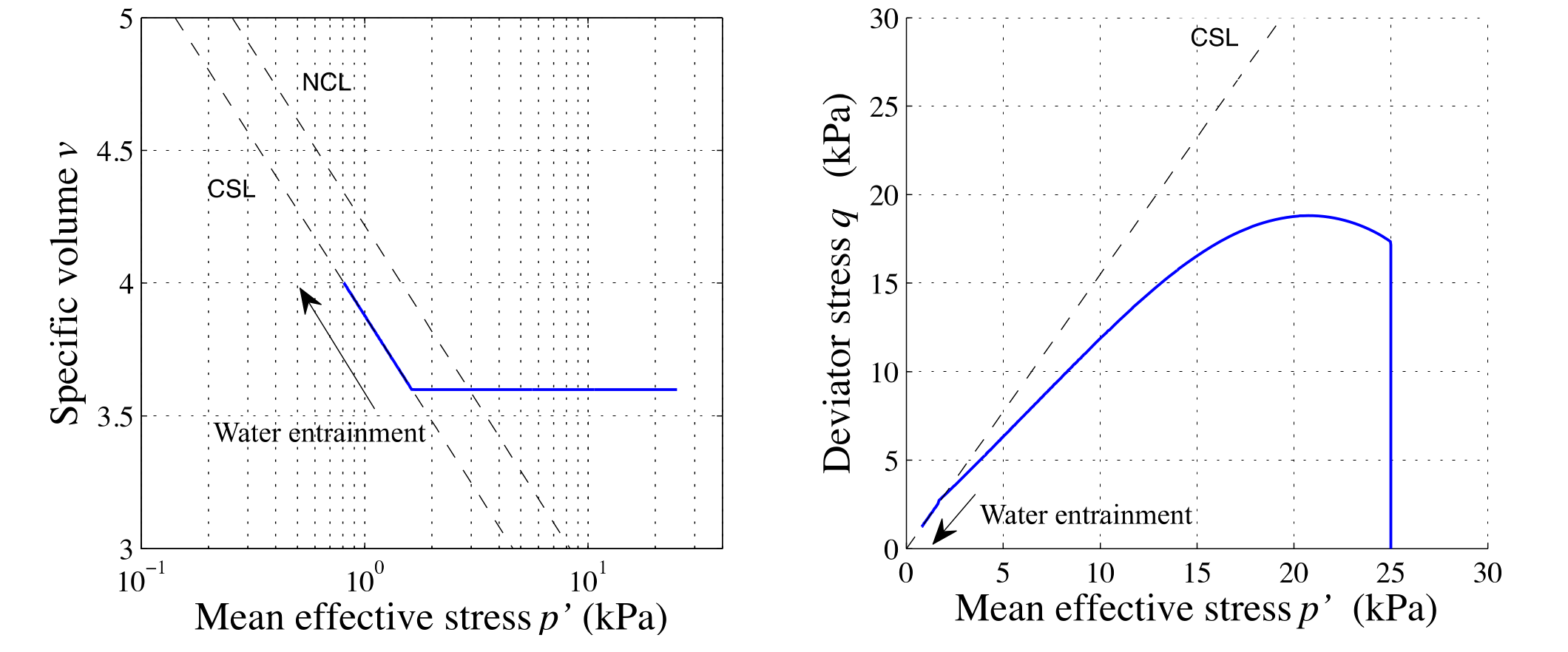

- Water entrainment.
- Pore pressure does not dissipate.
Submarine run-out
Credit: Amanda Murphy (2016)

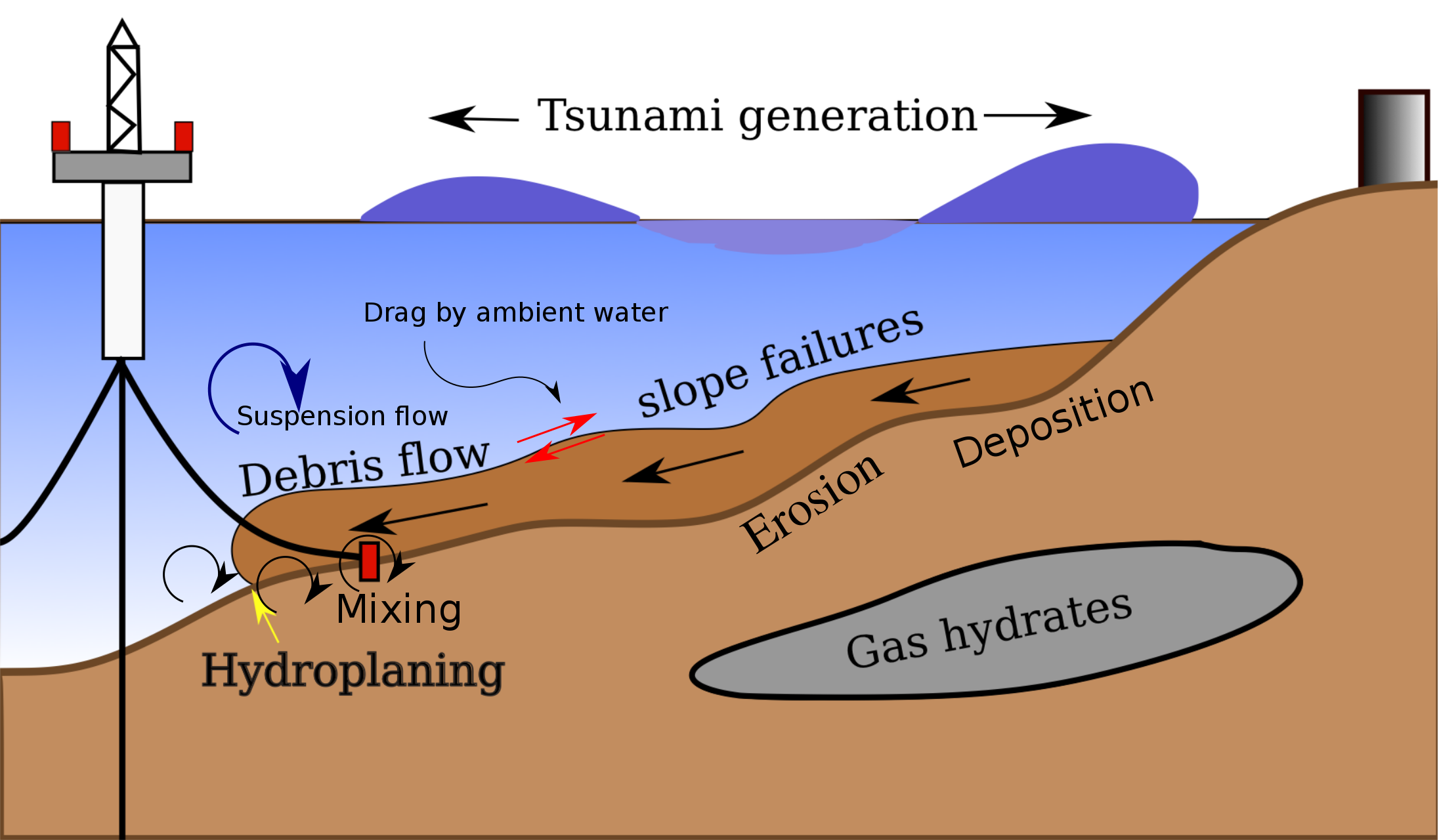

Mechanism of submarine landslides

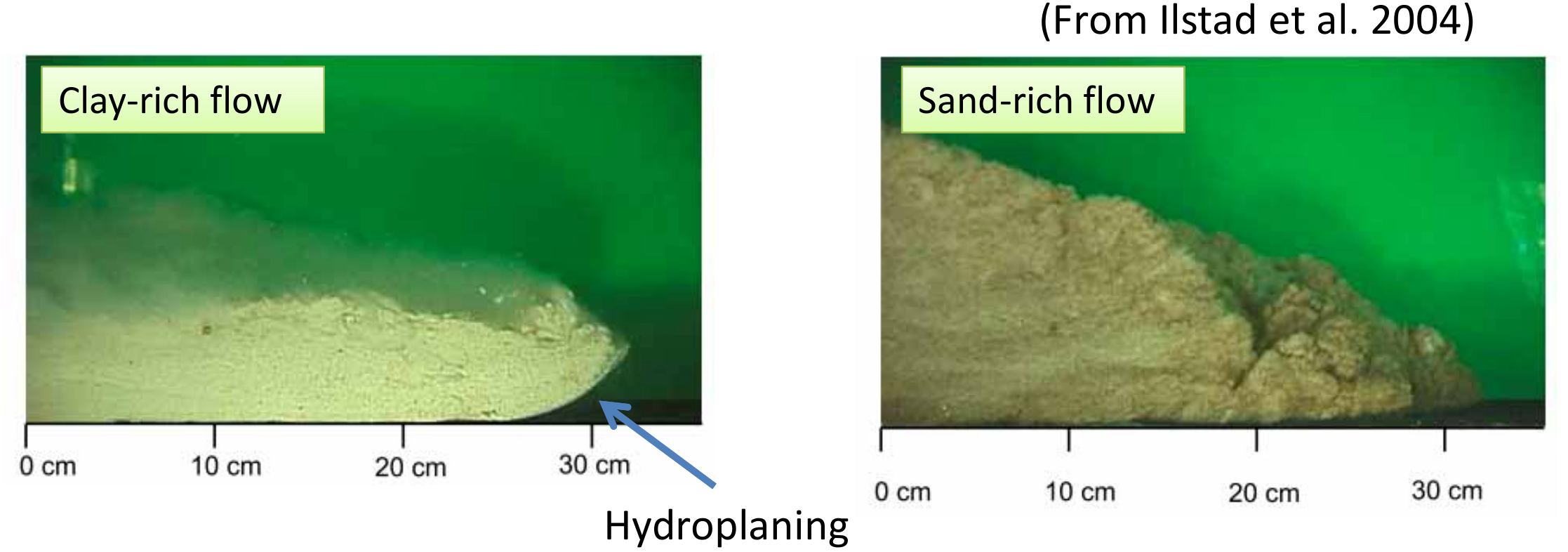

Modeling Test at 1g Condition
- Material type influences the mode of the flow.
- Target: Clay‐rich flow (Less diffusive, Hydroplaning).
Mechanism of submarine runout

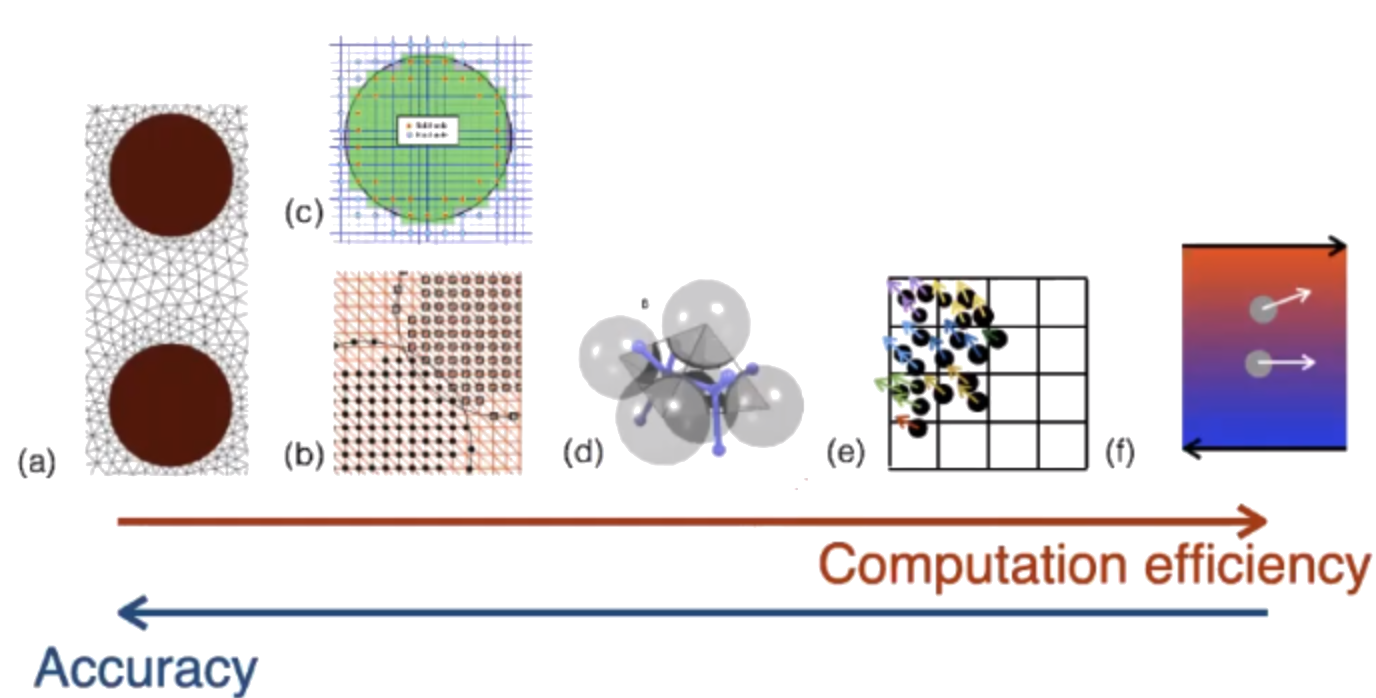

Fluid-grain systems
LBM - DEM simulation of granular collapse in a fluid
aspect ratio 'a' of 6
Discrete Element Method
- Particle level interaction based on Newton's equation of motion
- The contact force is computed as:
- The Newton's equation of motion
$F_n=\left\{ \begin{matrix} \text{ }0\text{ },\text{ }{{\delta }_{n}}>0 \\
-{{k}_{n}}{{\delta }_{n}}-{{\gamma }_{n}}\frac{d{{\delta }_{n}}}{dt},\text{ }{{\delta }_{n}}<0 \\
\end{matrix} \right.$
$F_n =m \times a $

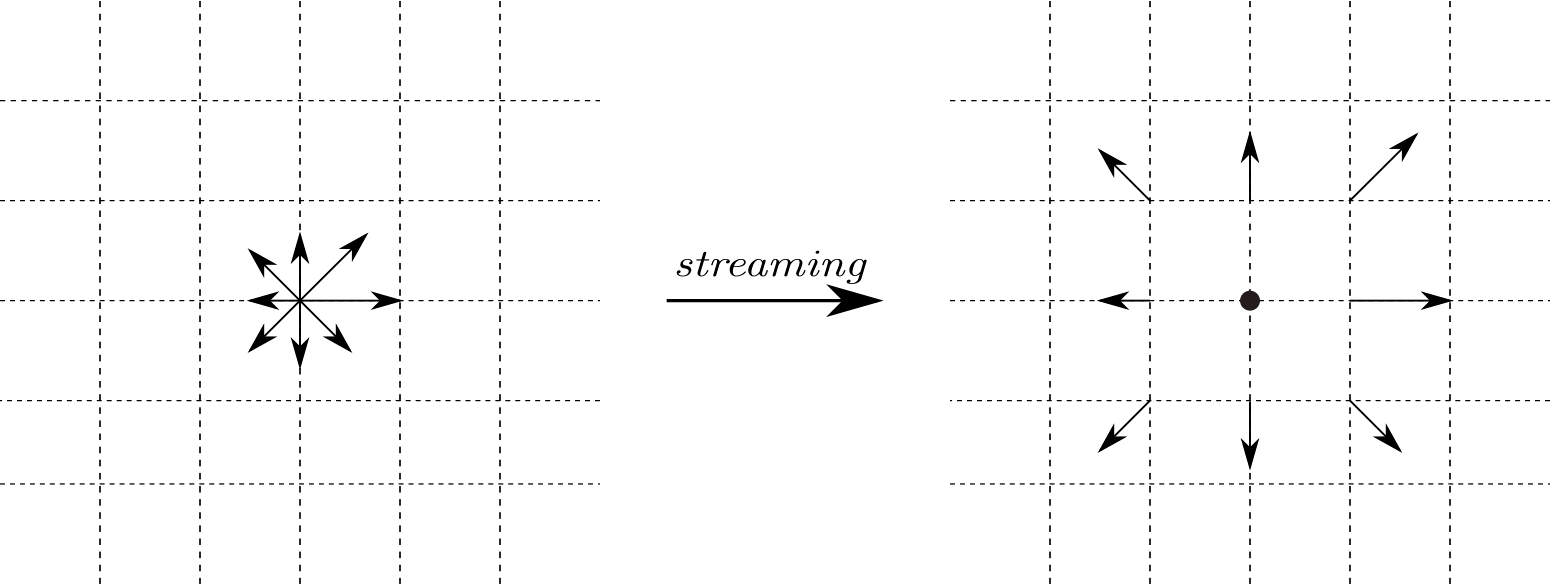

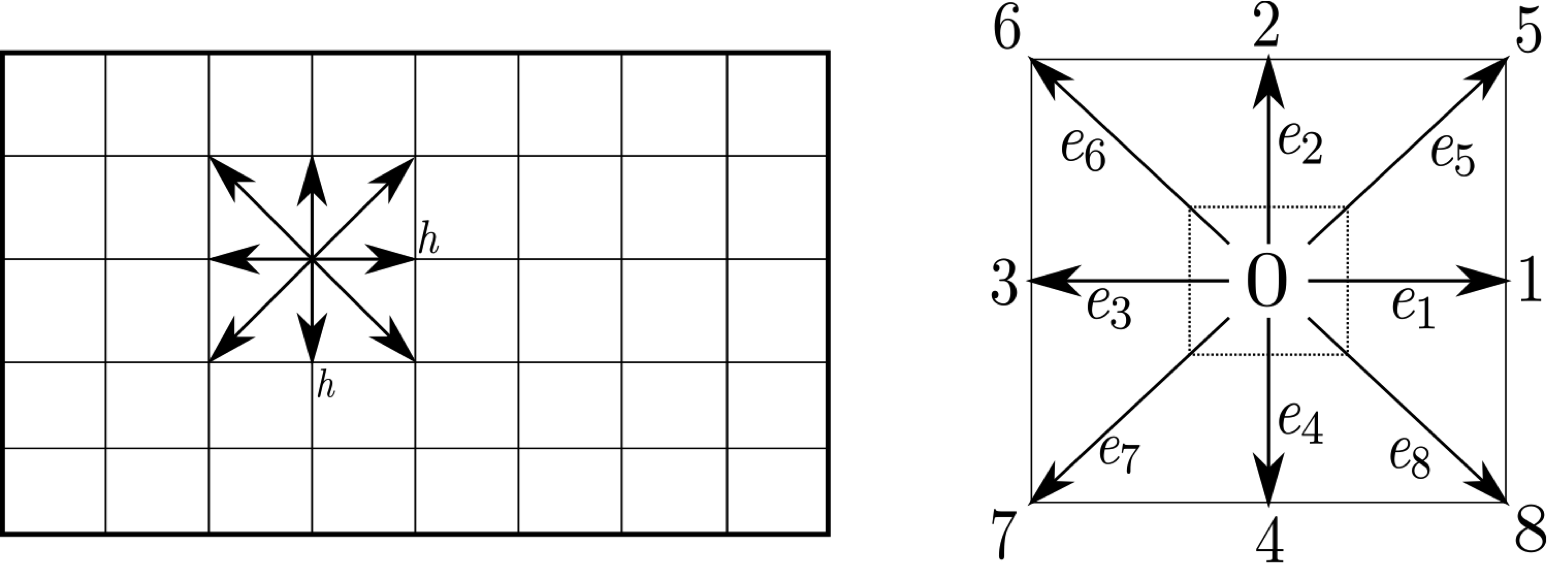

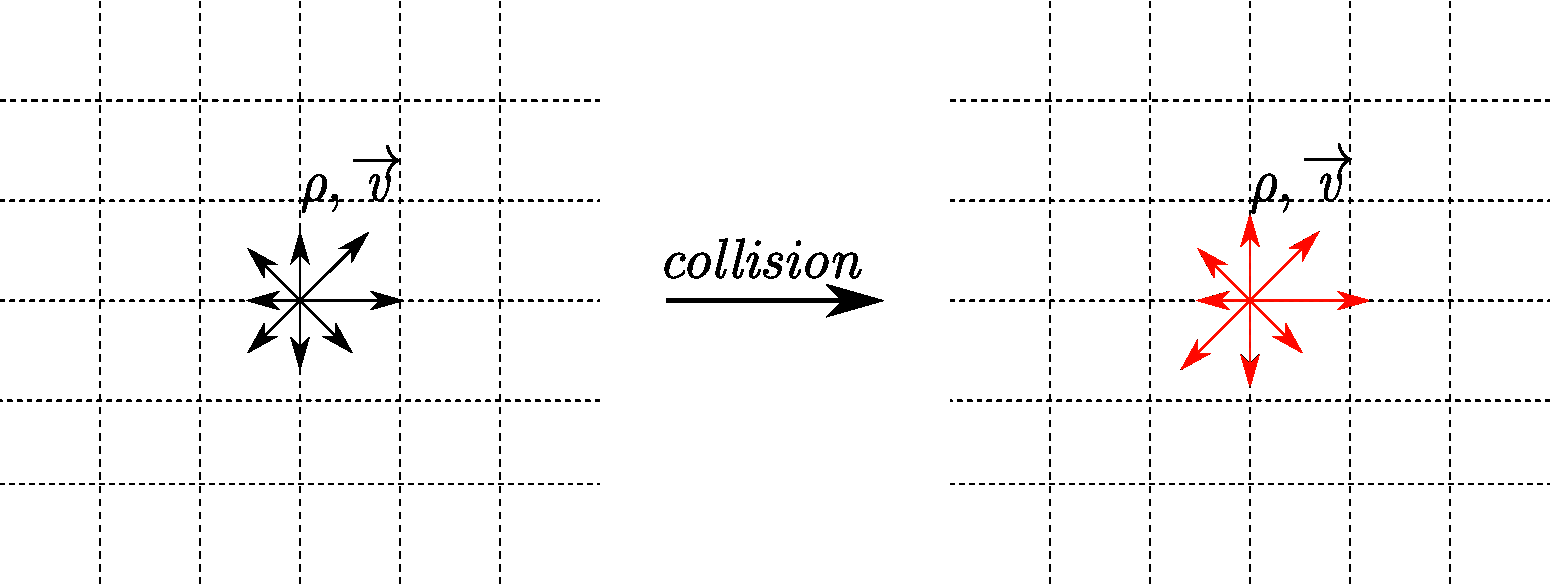

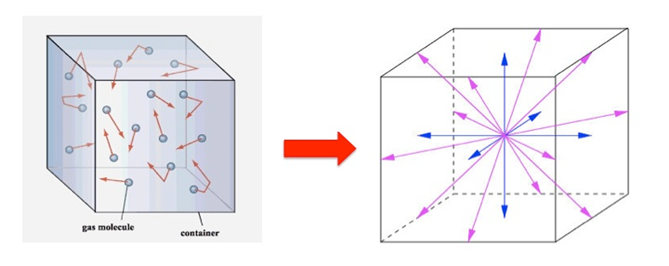

Lattice Boltzmann - MRT
\[f_{i}(x + dx, t +\Delta t) - f_{i}(x, t) = -S_{\alpha i}(
f_{i}(x, t) - f_{i} ^ {eq}(x, t))\]
- $S_{\alpha i}$ is the collisional matrix.
- Probability density of finding a particle : $f(x,\varepsilon, t) $, where, x is position, $\varepsilon$ is velocity, and t is time.

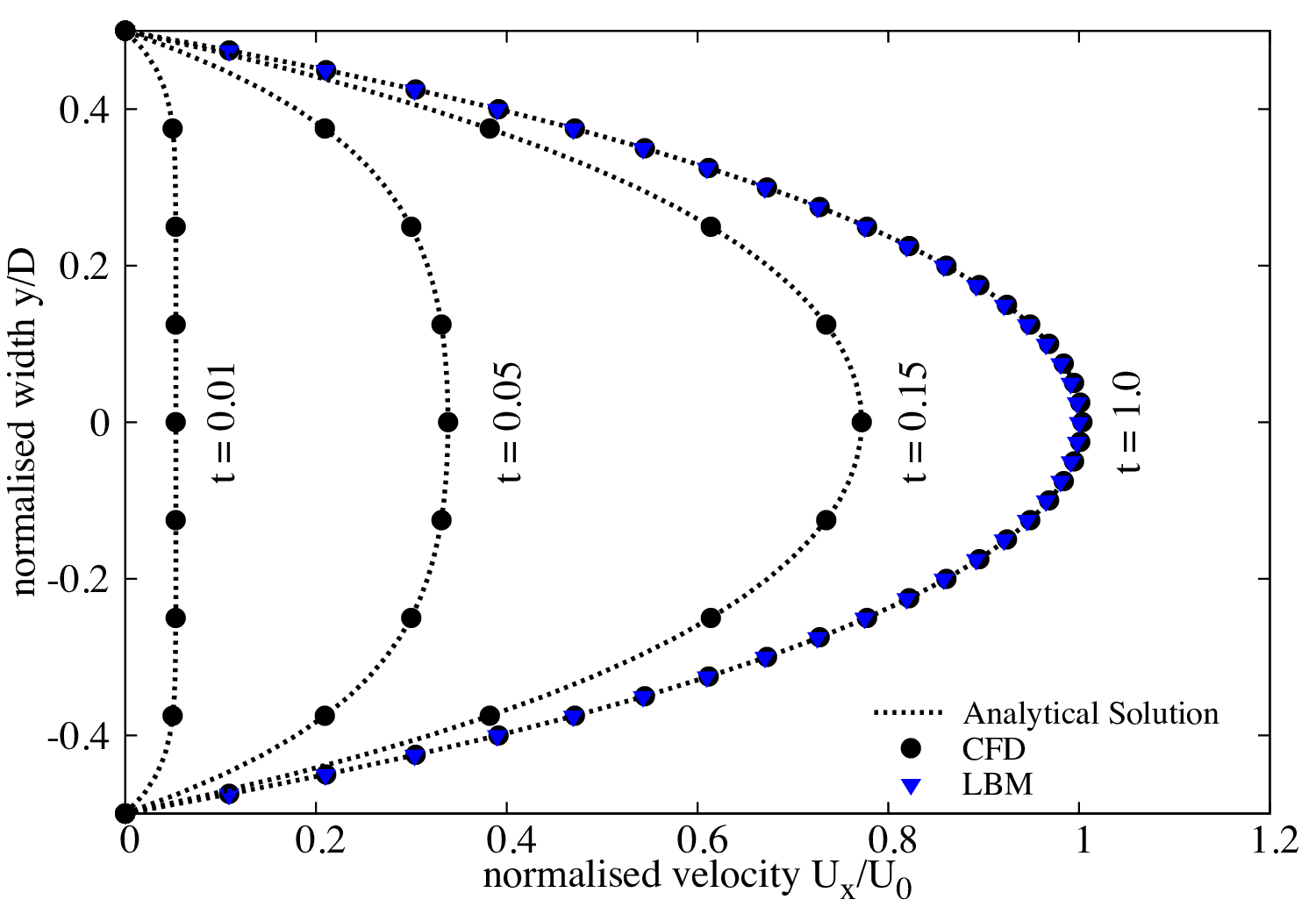

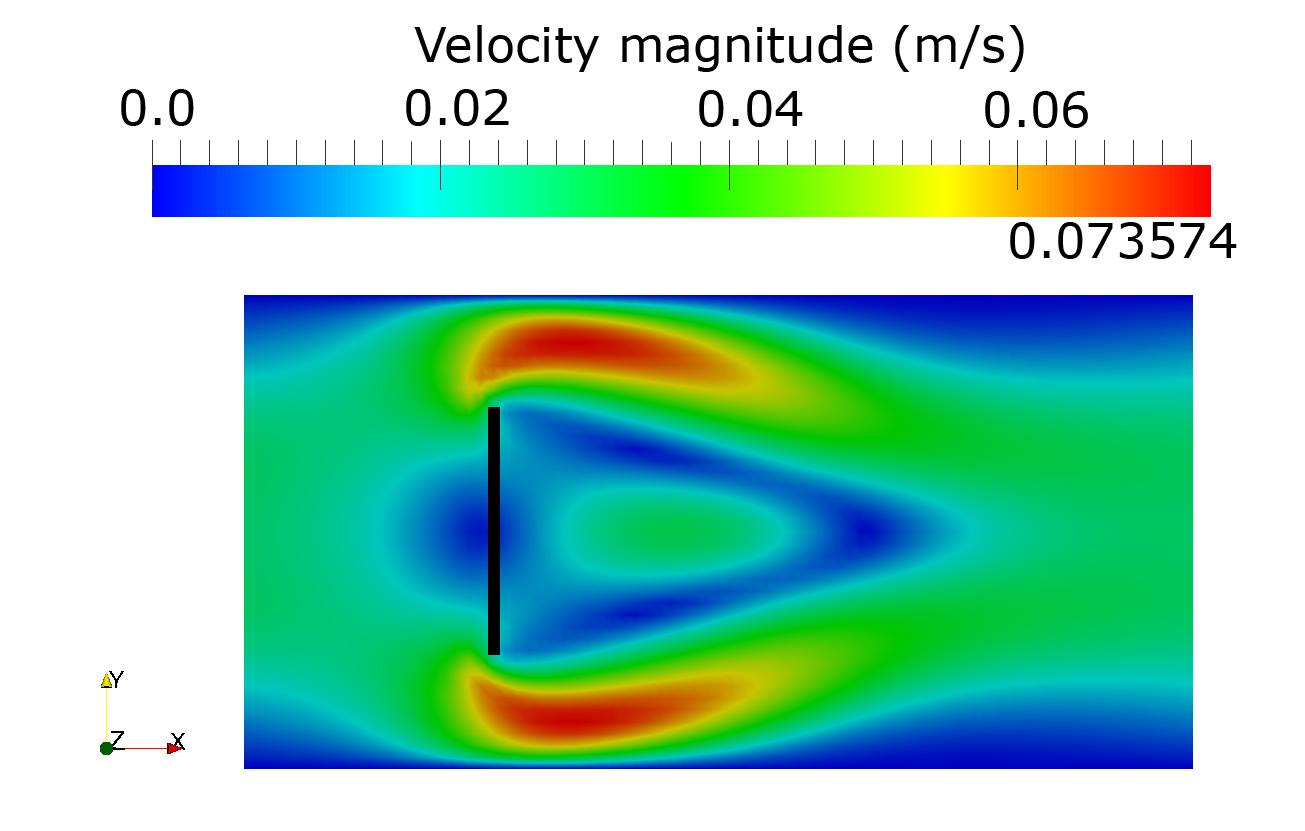

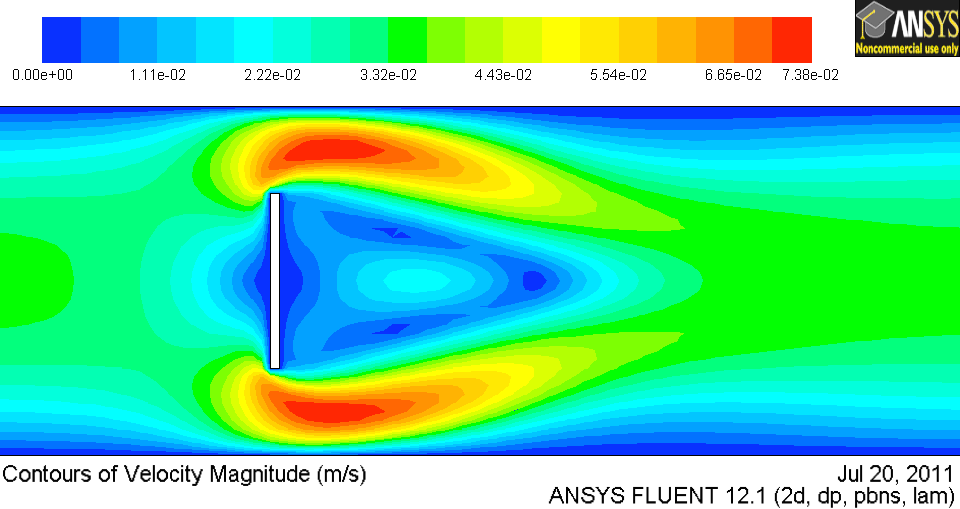

LBM laminar & turbulent flows
Smagorinsky model (LES):
Karman Vortex Street

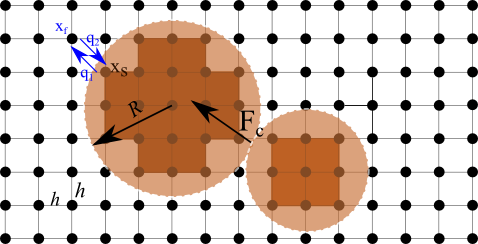

LBM-DEM fluid-solid coupling
$$\Delta t_{s}=\frac{\Delta t}{\mathit{n}_{s}} \qquad (\mathit{n}_{s}=[\Delta t/ \Delta t_{D}]+1) $$
- At every fluid iteration, $\mathit{n}_{s}$ sub-steps of DEM iterations are performed using the time step $\Delta t_{s}$.
- The hydrodynamic force is unchanged during the sub-cycling.

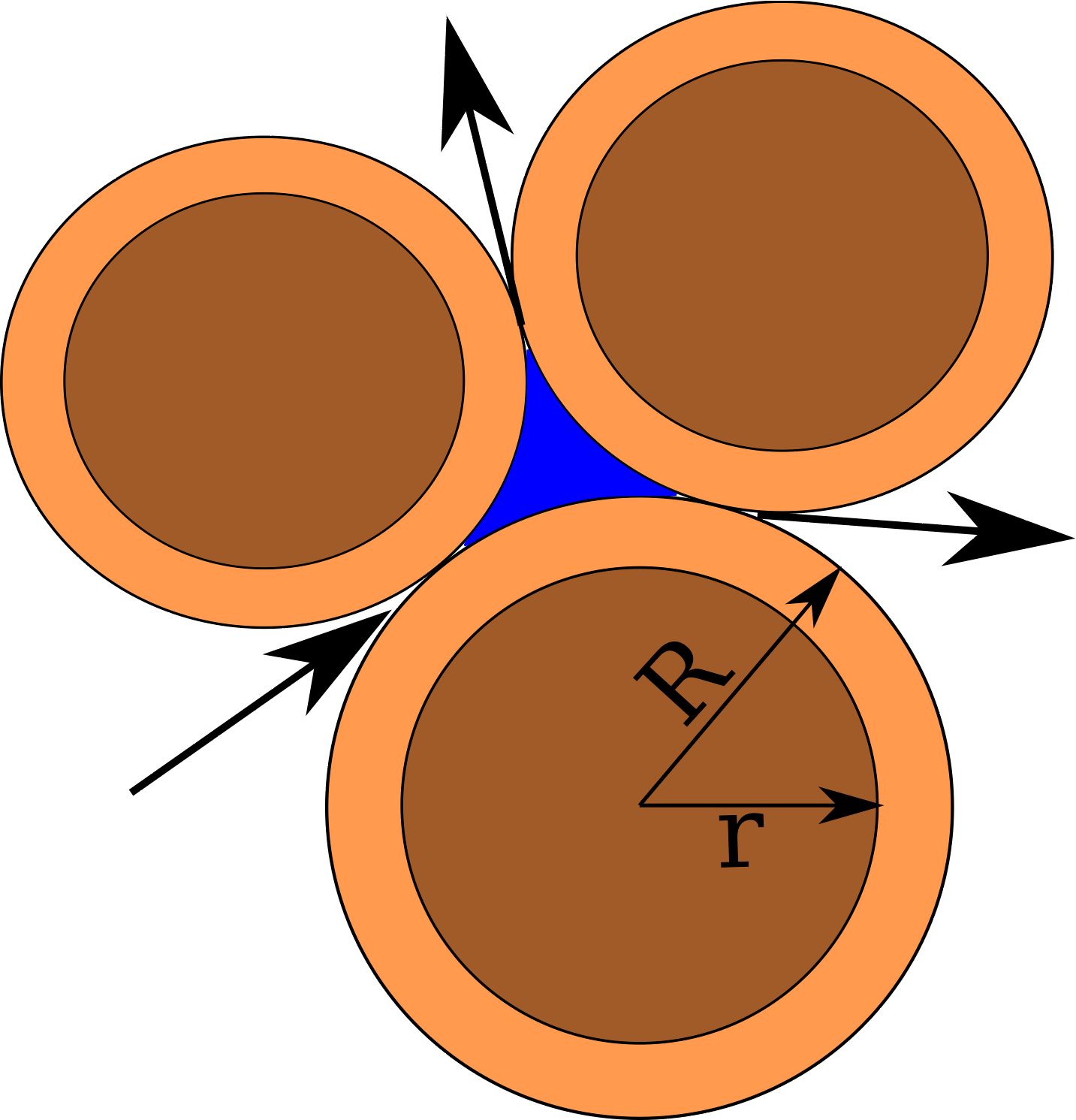

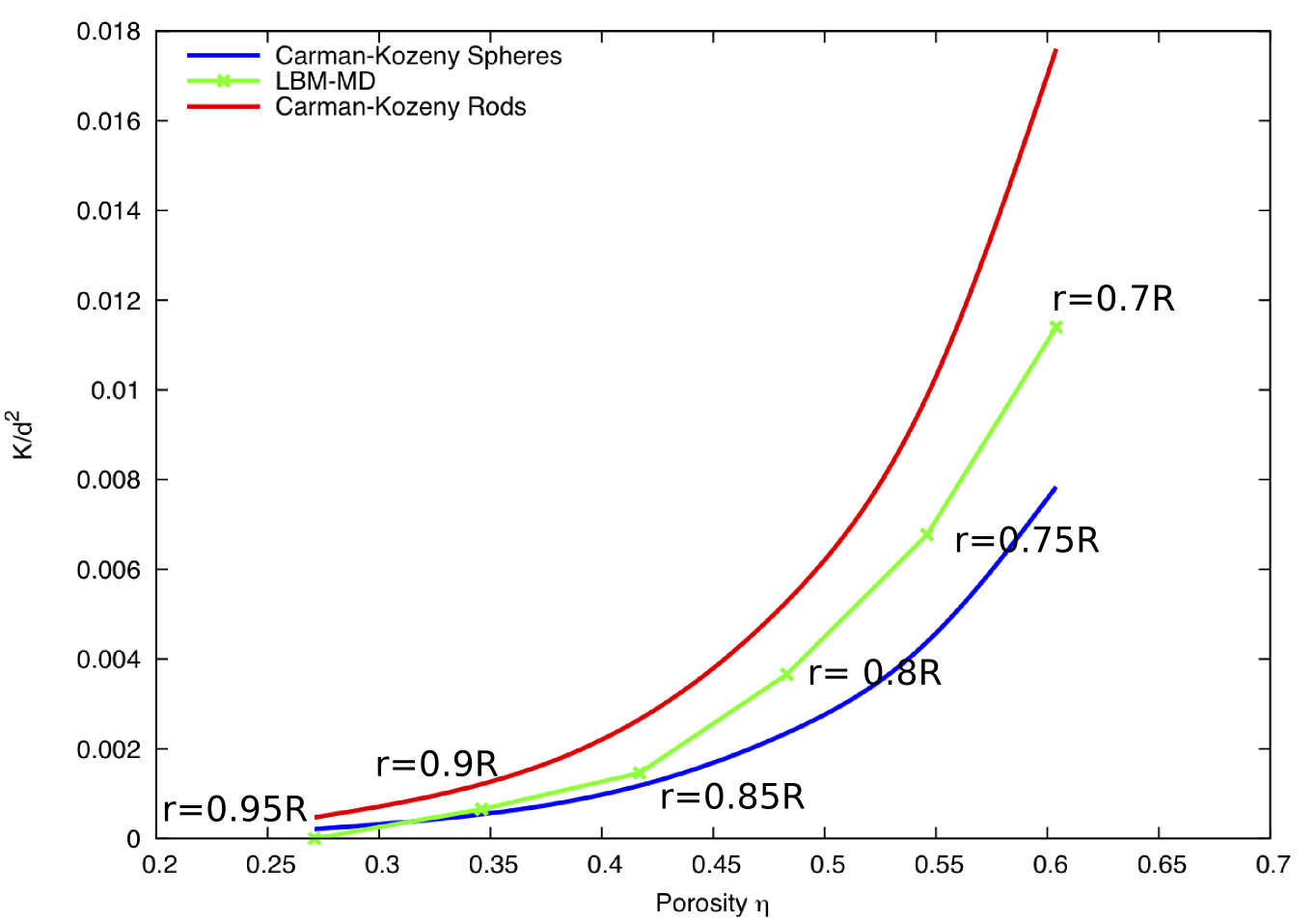

Hydrodynamic radius
Collapse in a fluid
Granular collapse in a fluid: Effect of aspect ratio
aspect ratio 'a' of 0.4
aspect ratio 'a' of 4

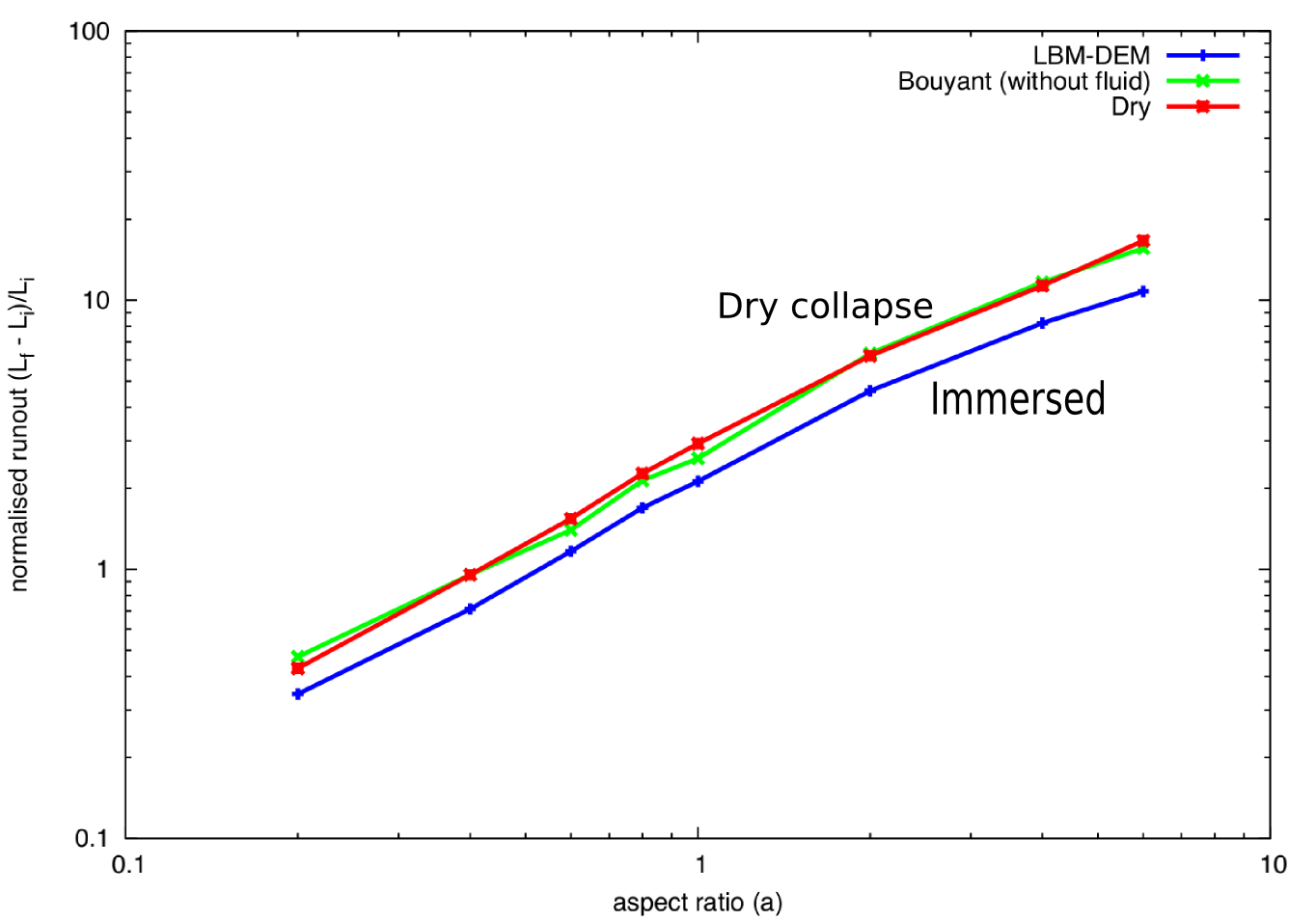

Runout: dry vs fluid
Dry collapse flowed further than the underwater collapse
Collapse on an inclined plane
aspect ratio 'a' of 6 on a slope of 5*
Collapse of a dense column on an inclined plane
Collapse of a dense column on an inclined plane

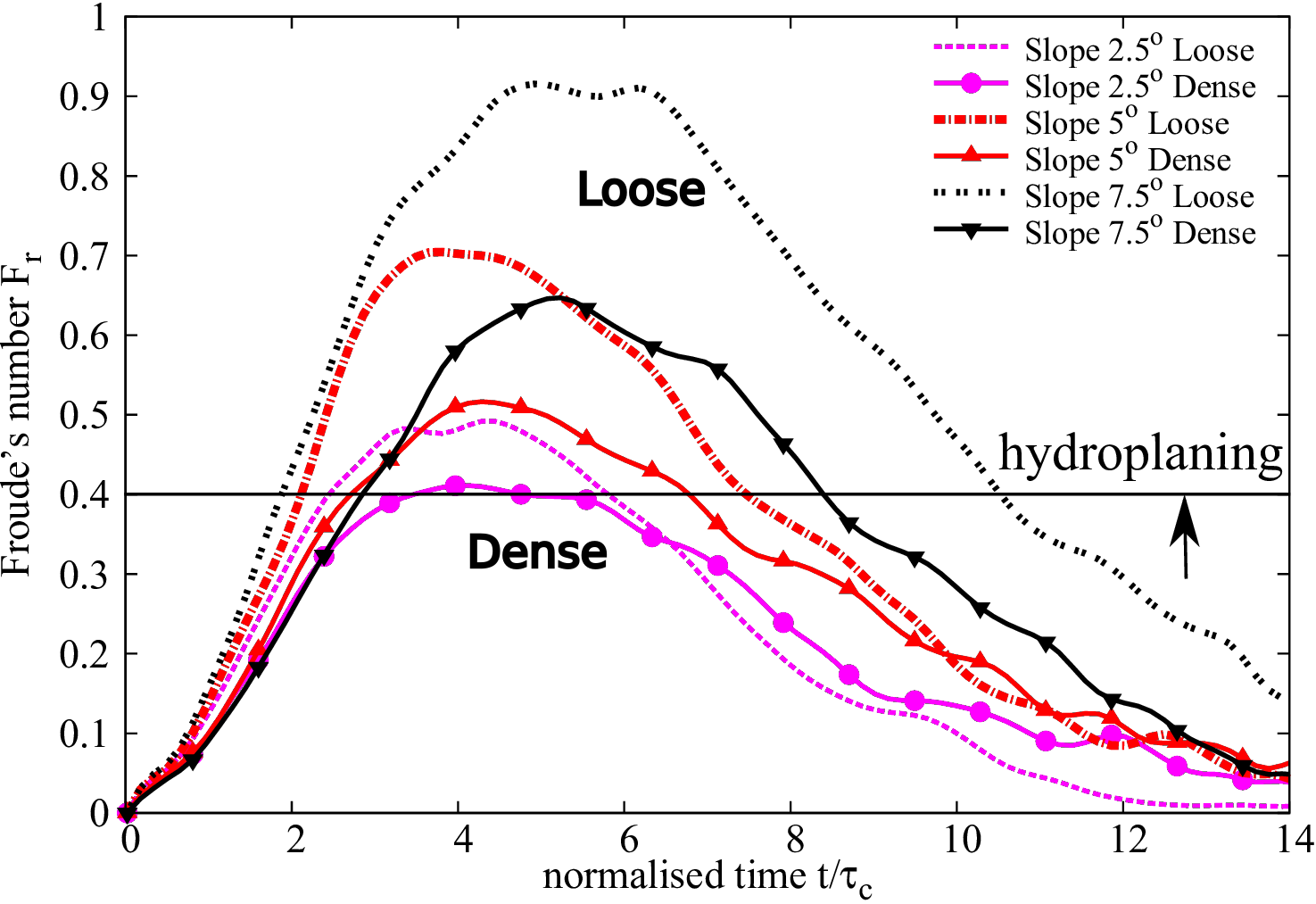

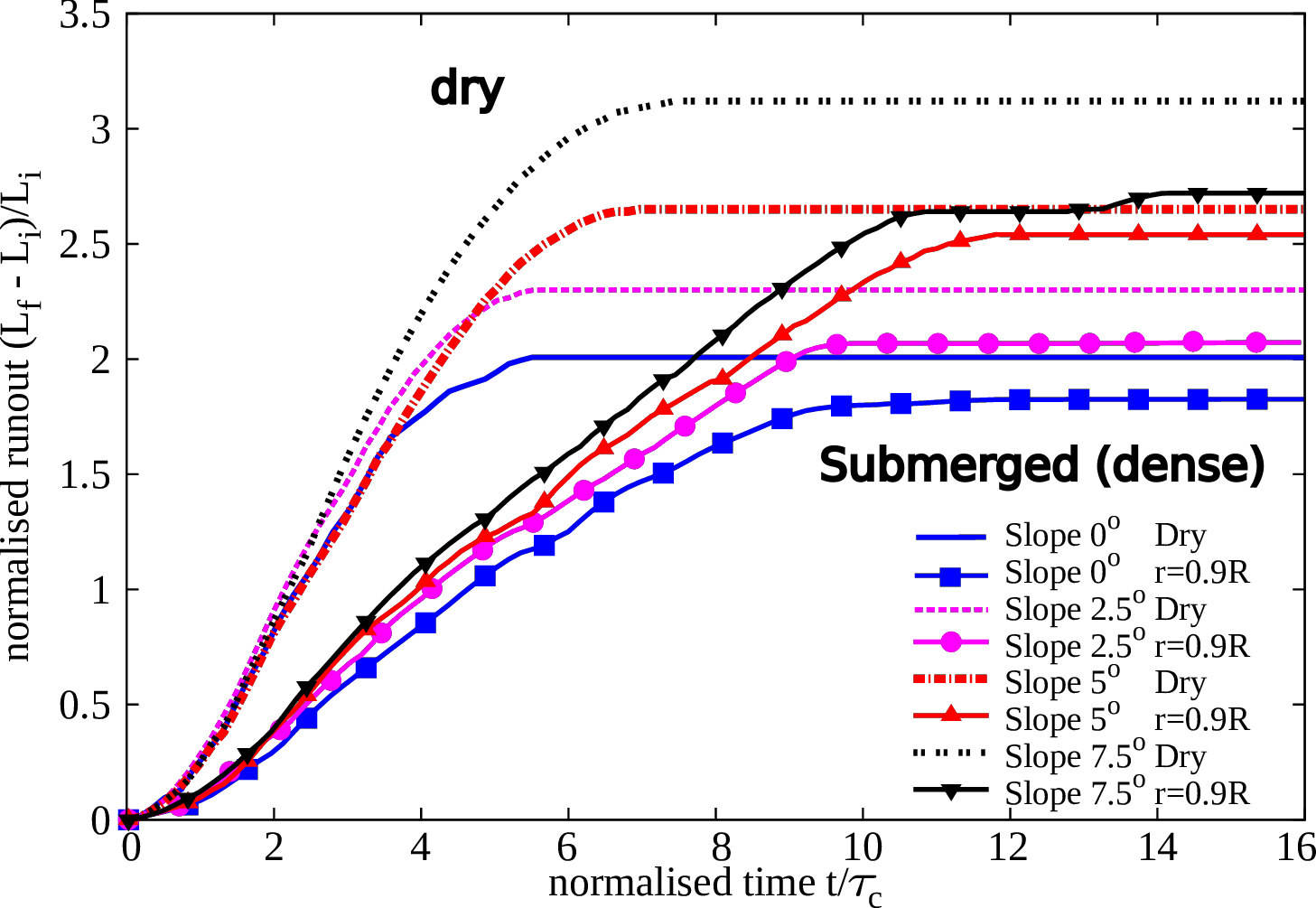

Collapse of a dense column on slopes: runout

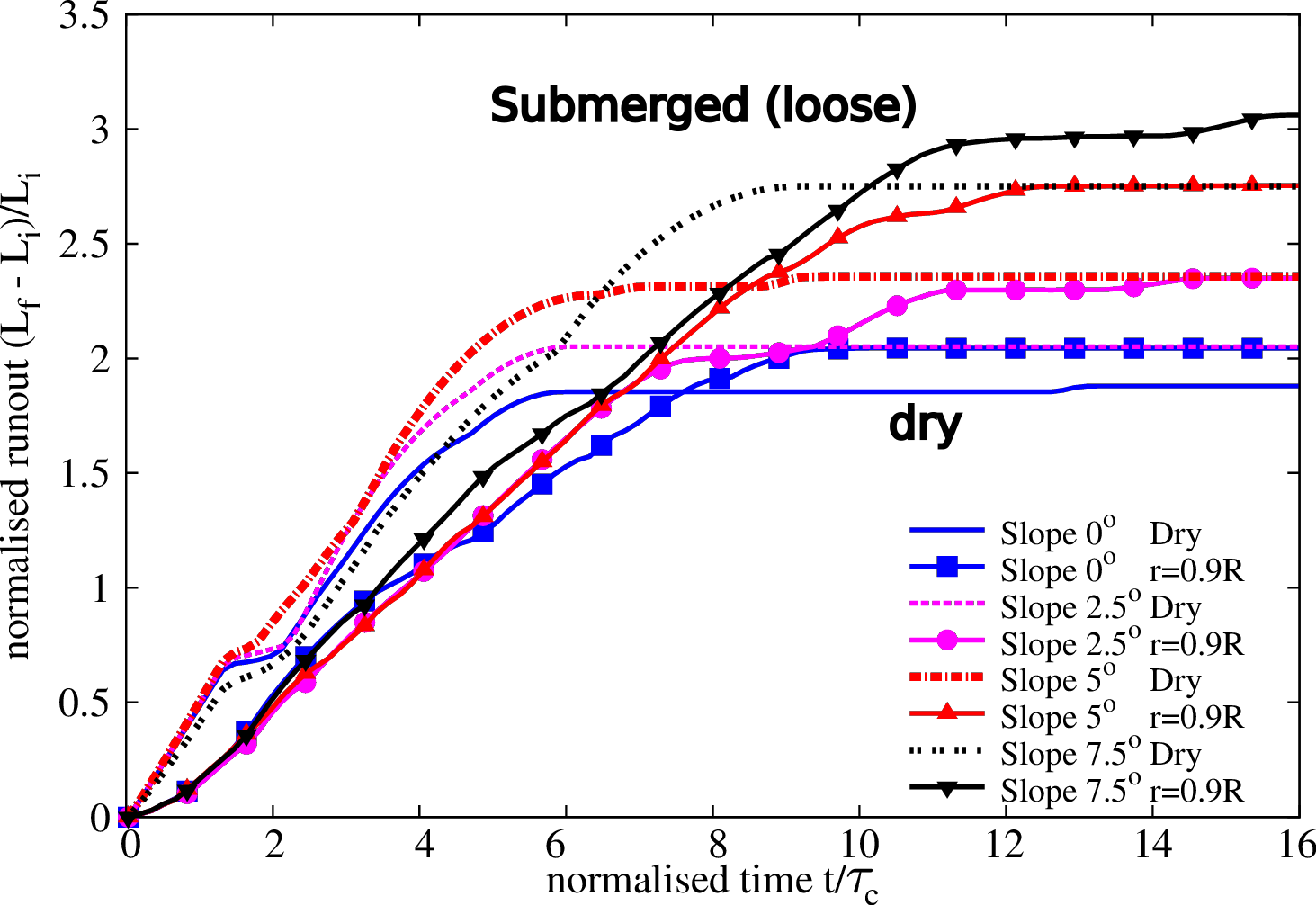

Collapse of a loose column on slopes: runout

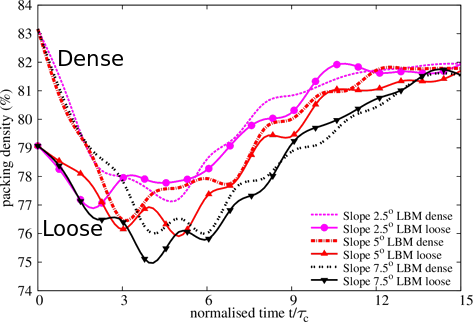

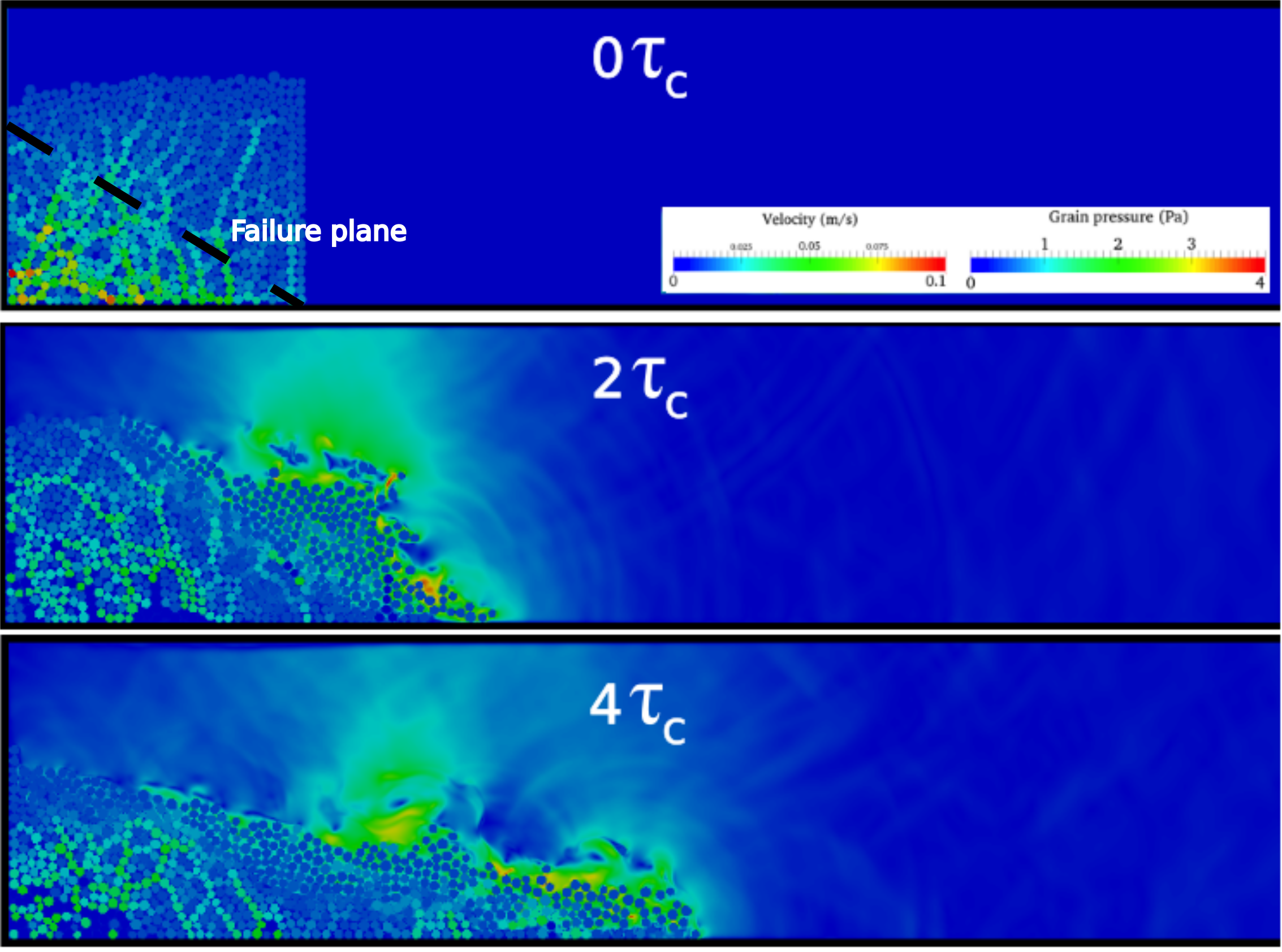

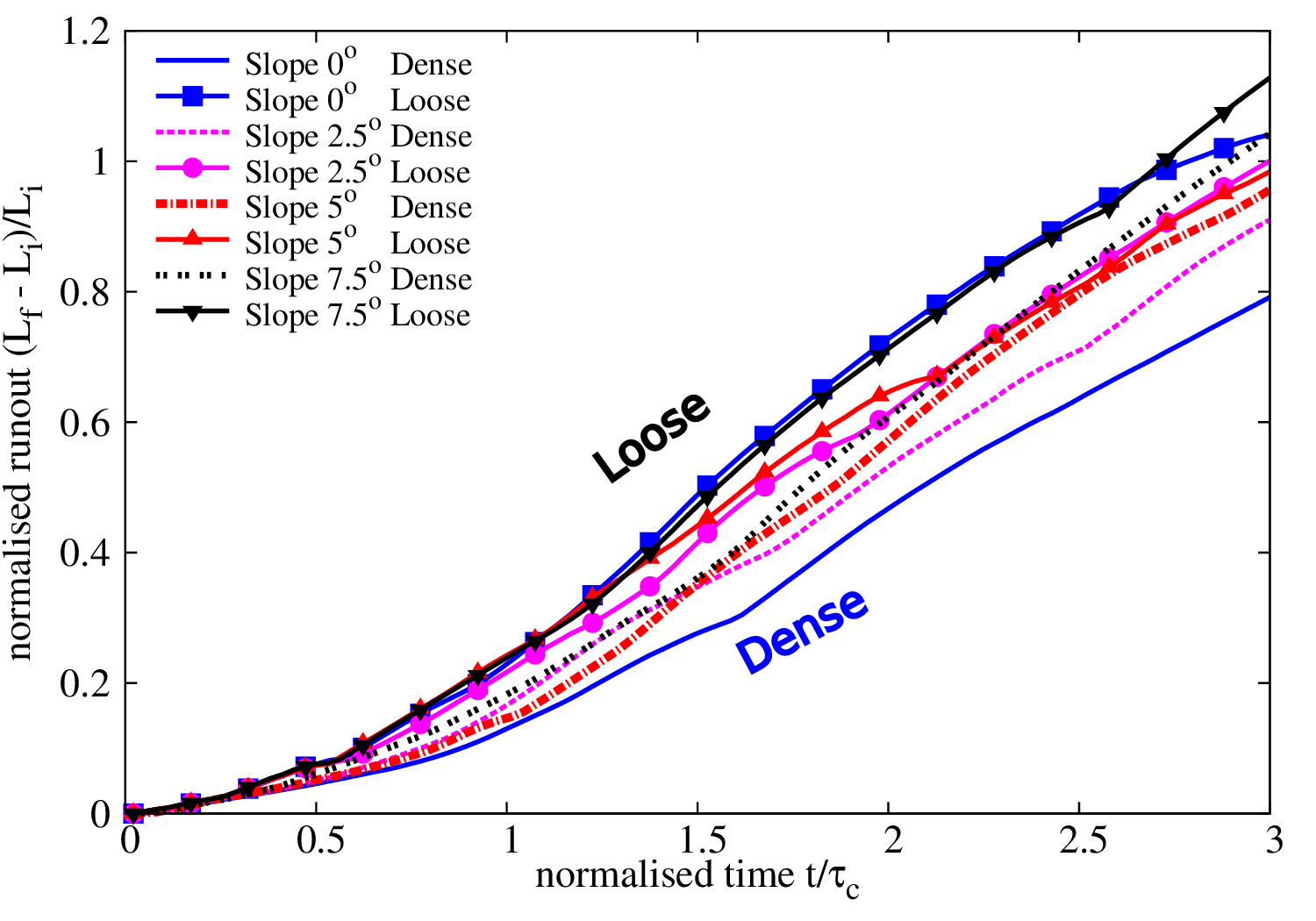

Loose v dense: Initiation phase
Loose v dense: Initiation phase

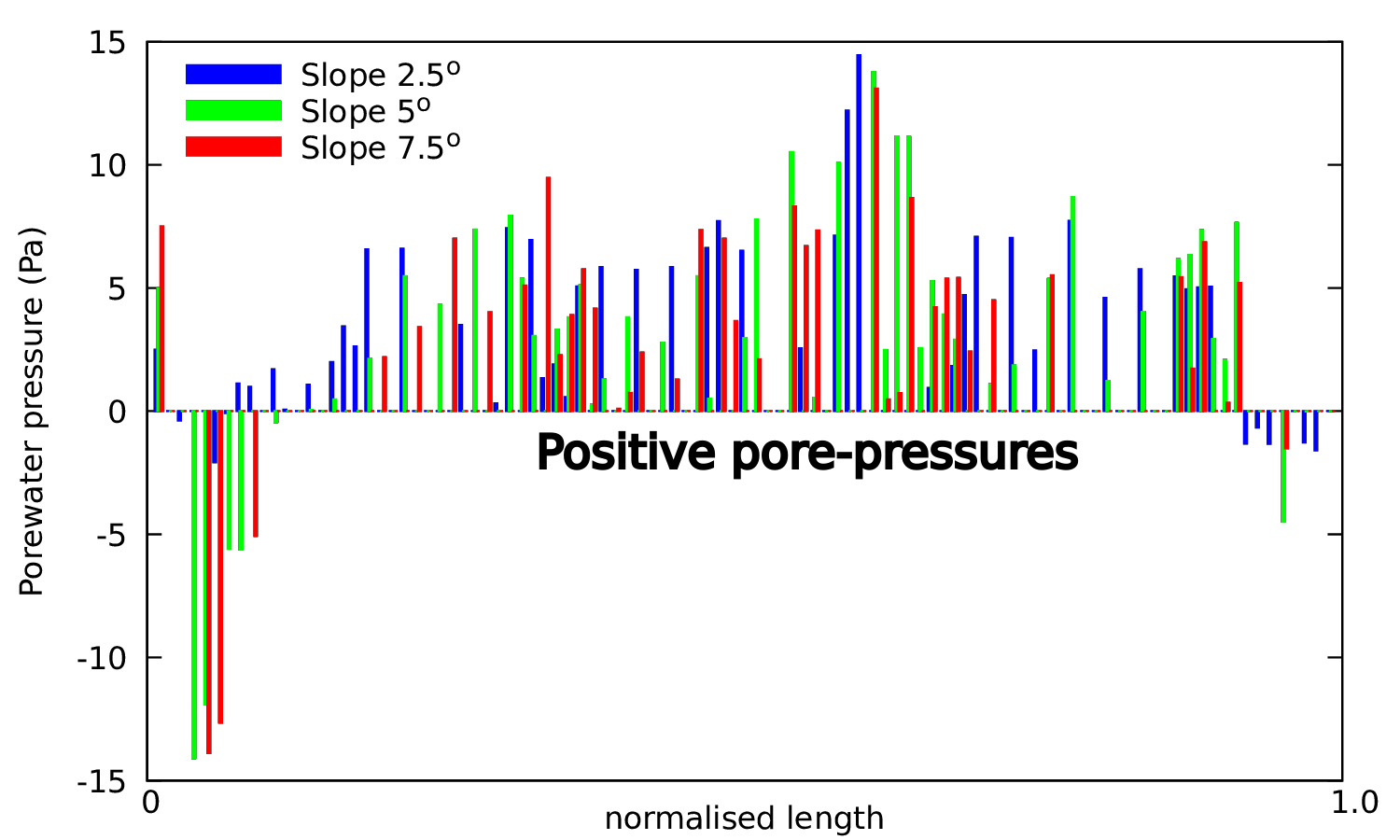

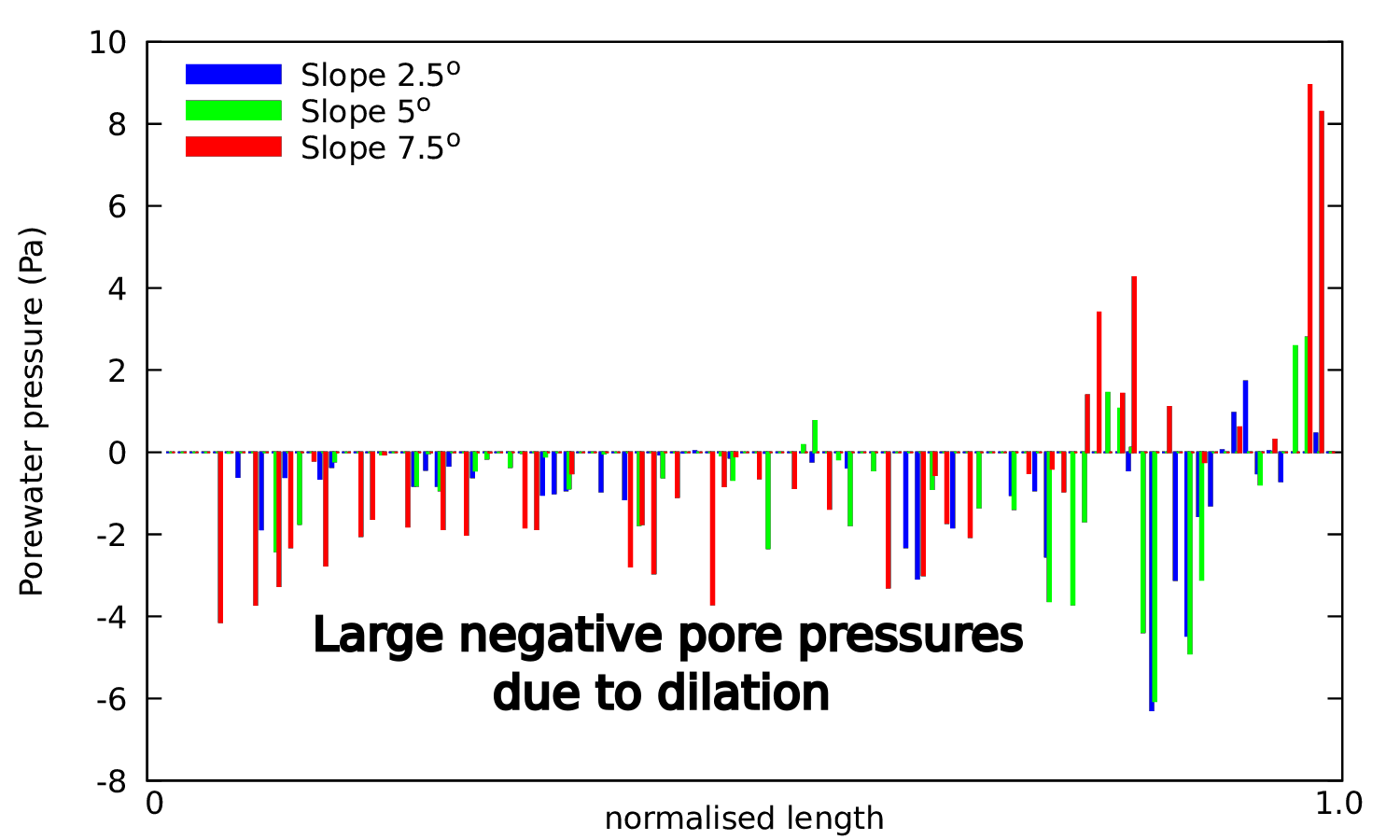

Pore-pressure distribution along the failure plane during initiation.

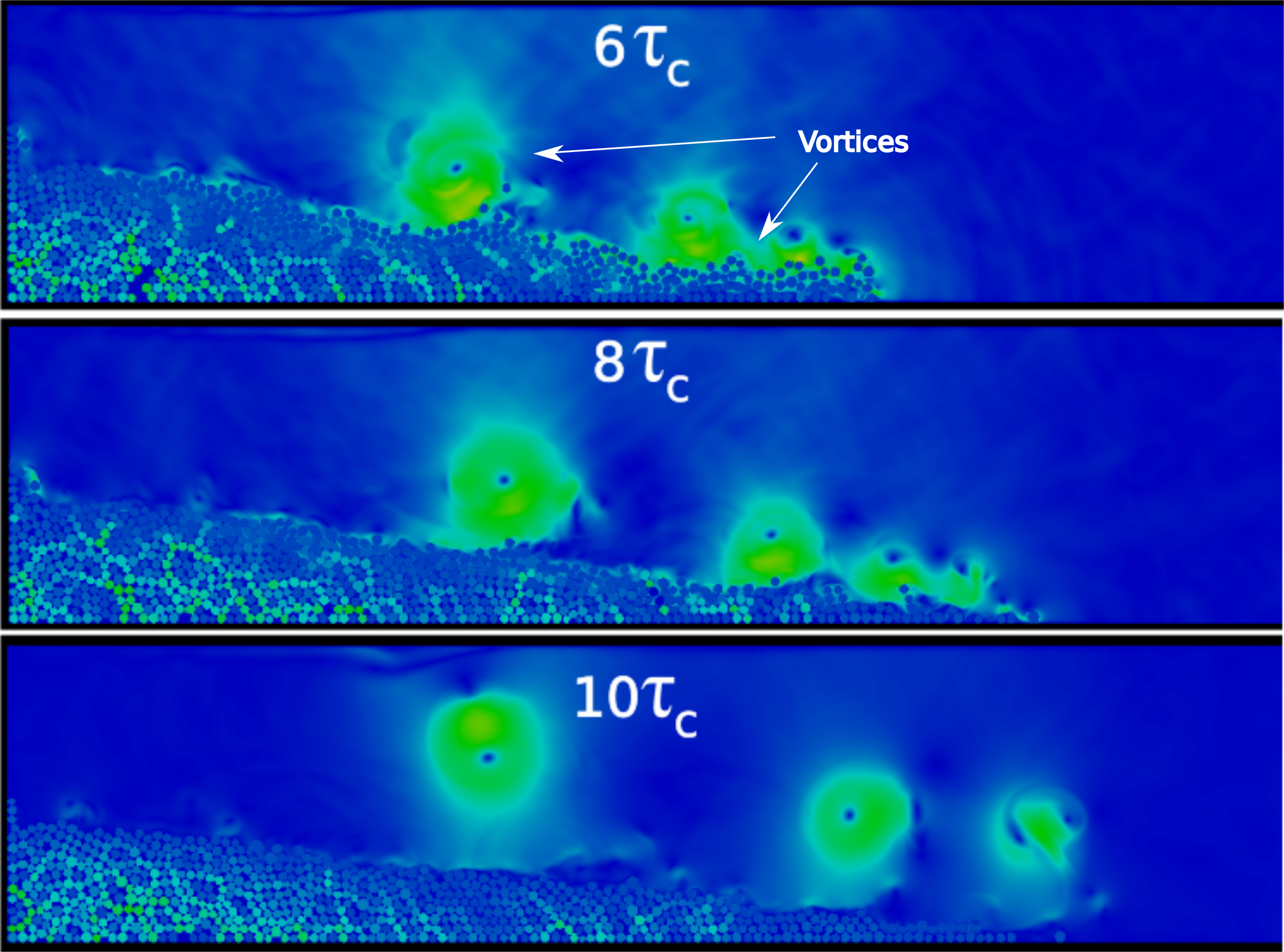

Loose v dense: Runout phase
Loose v dense: Runout phase

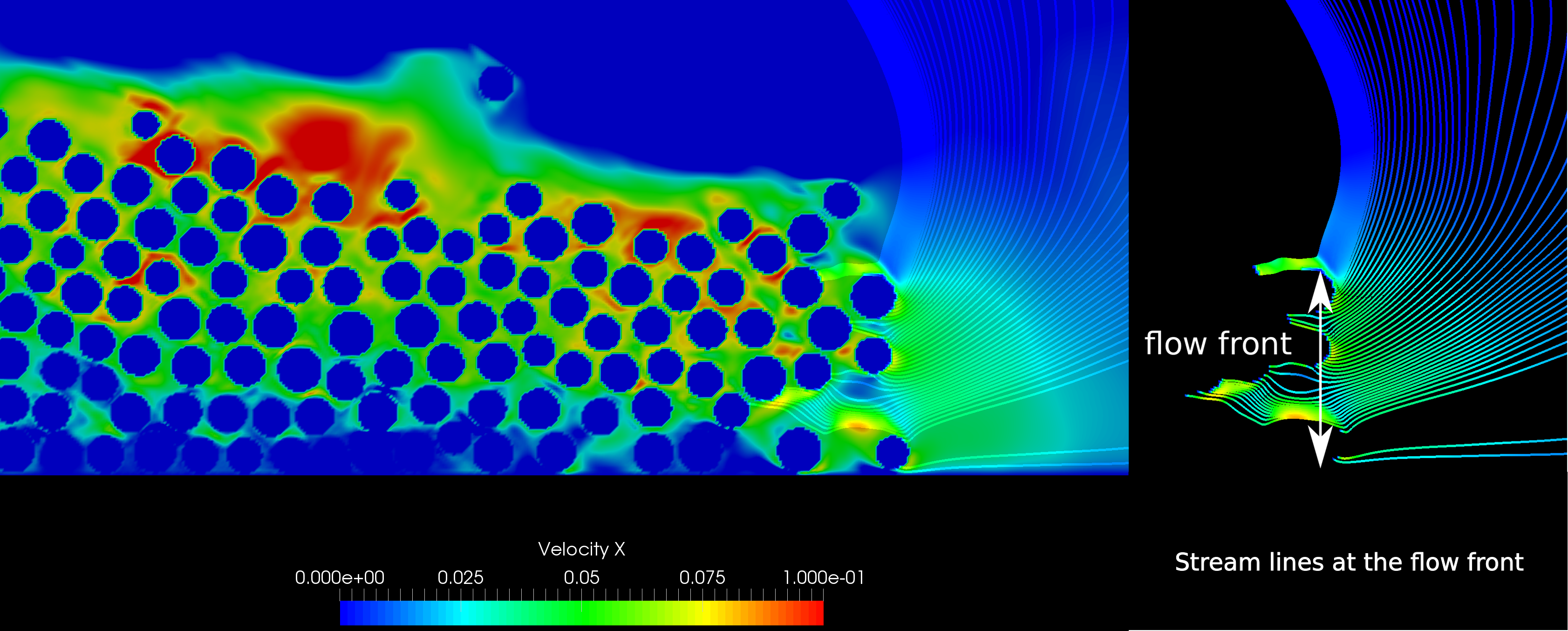

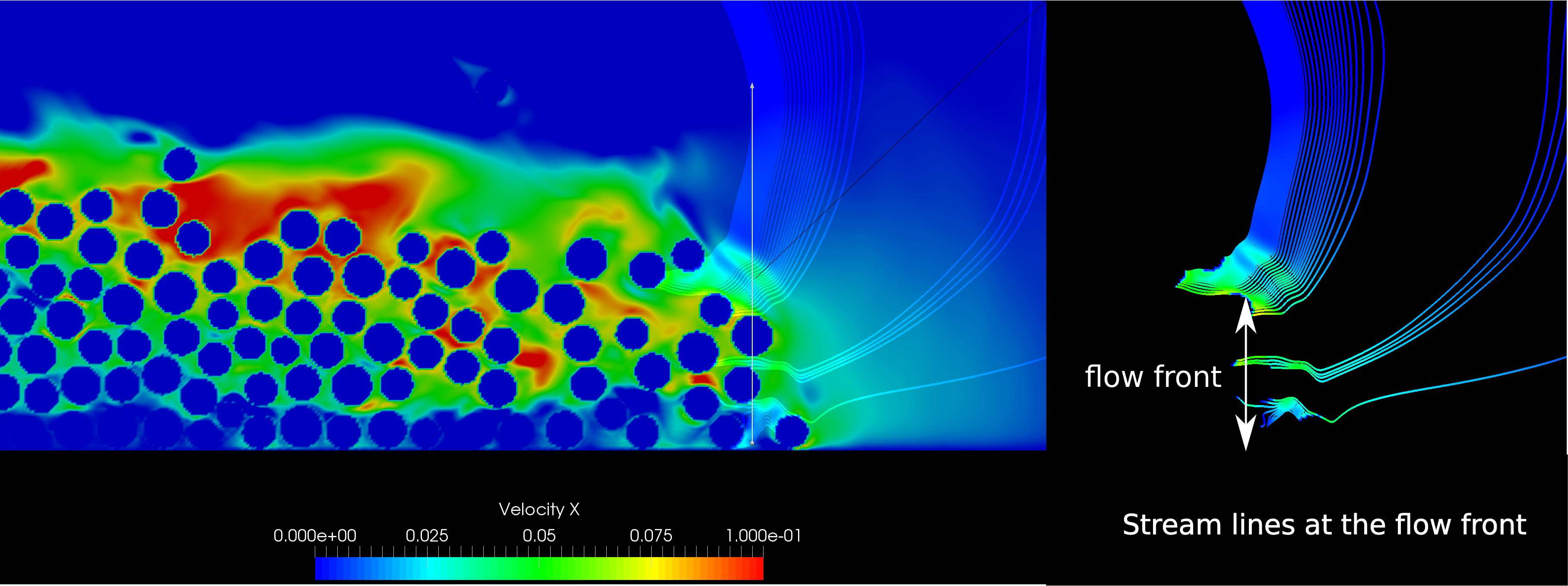

Water entrainment front (~15d length) at a slope of 5*
Loose v dense: Runout phase
Loose v dense: Settlement phase

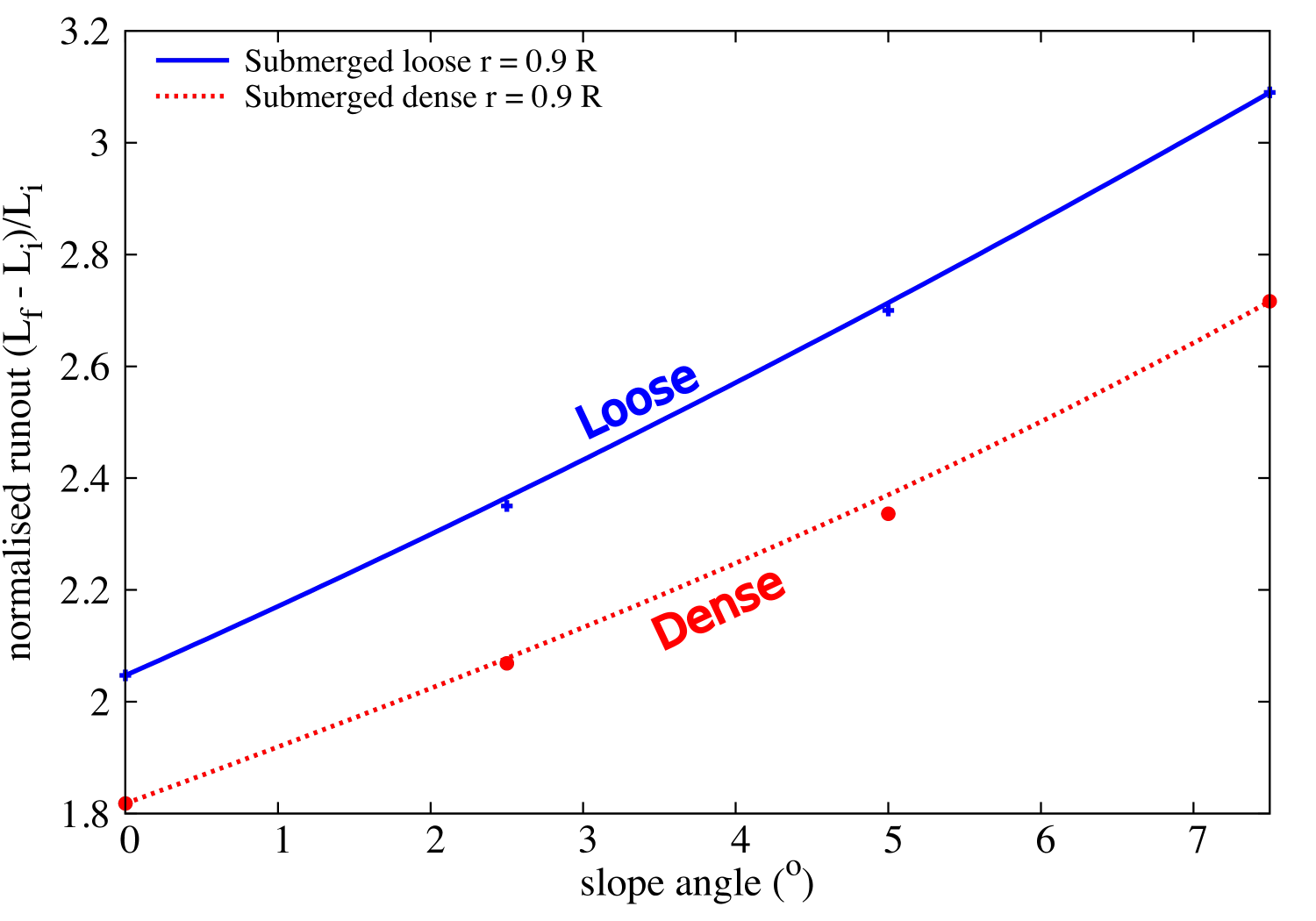

Collapse on slopes: loose v dense
LBM - DEM a = 0.8 & 10,000 particles
- LBM Nodes = 50 Million : DEM grains = 10000 discs
- Run-time = 4 hours
- Speedup = 125x on a Pascal P100

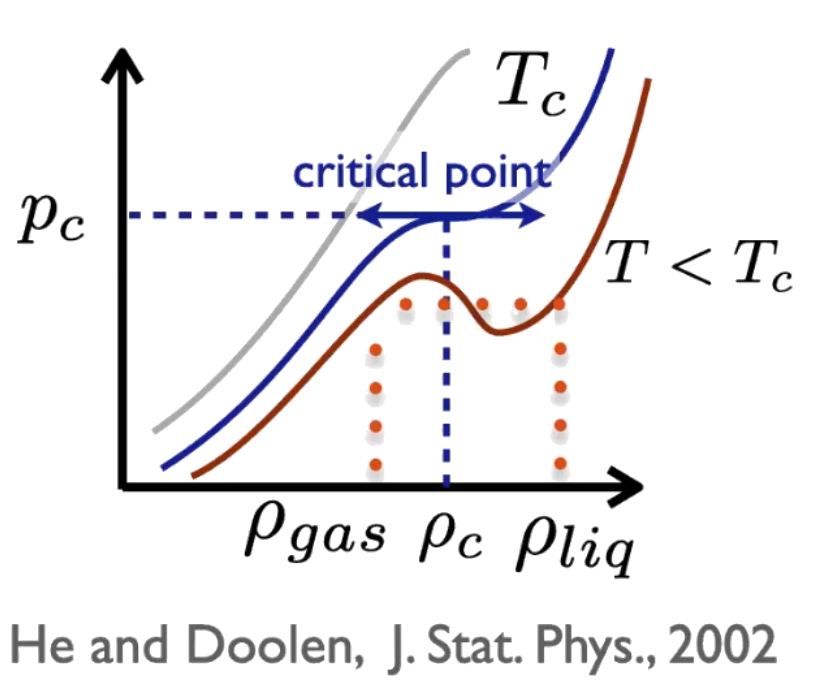

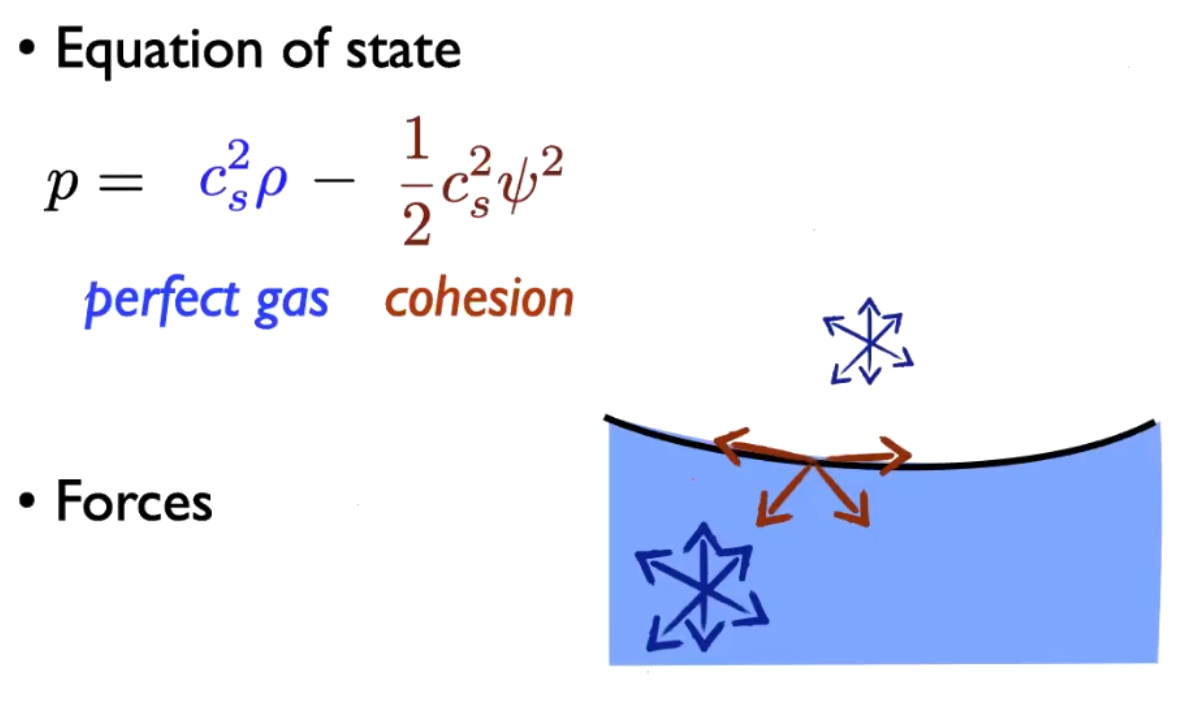

Multiphase LBM
Multiphase LBM

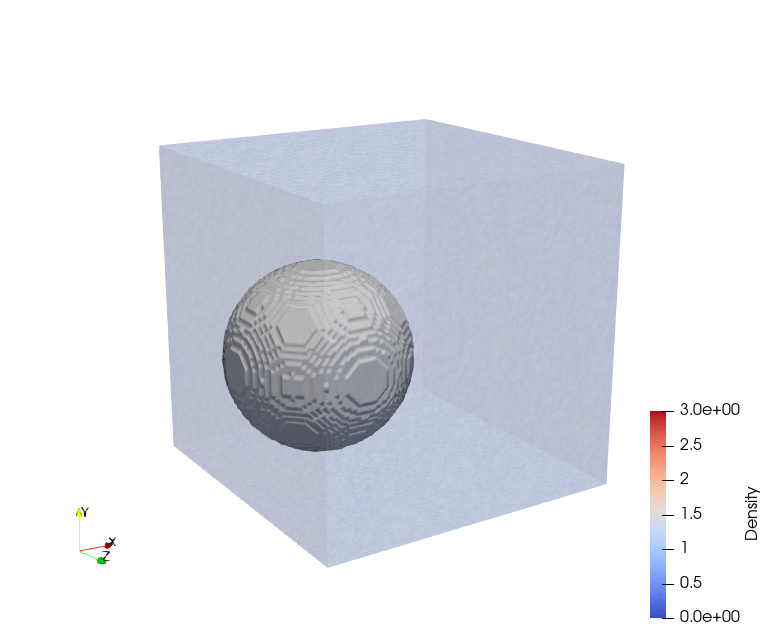

Multiphase LBM: Effect of varying the contact angle
(θ = 0°)
(θ = 180°)
(θ = 90°)

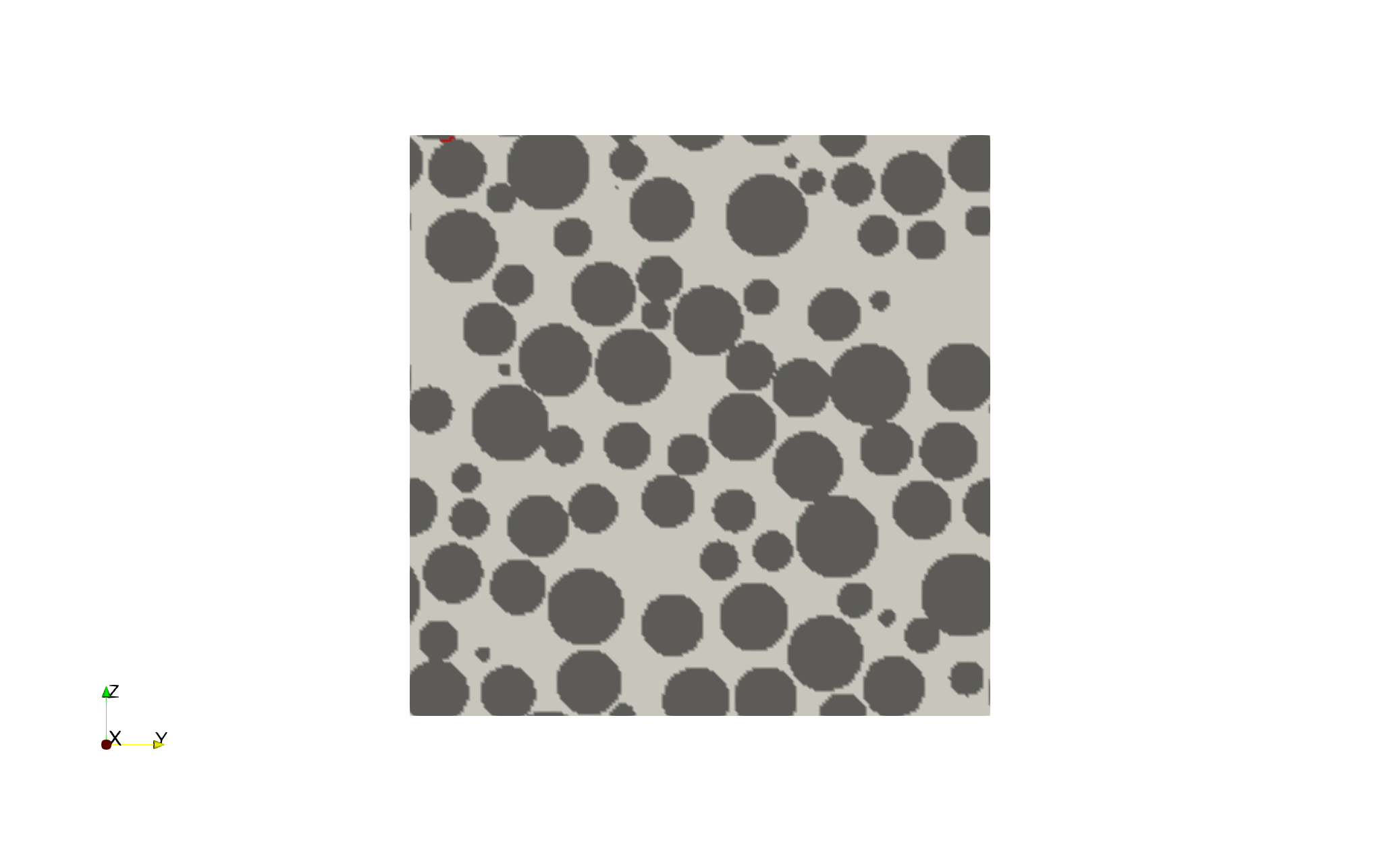

Multiphase LBM: SWRC on spheres
Multiphase LBM: SWRC on spheres
Multiphase LBM: SWRC on spheres

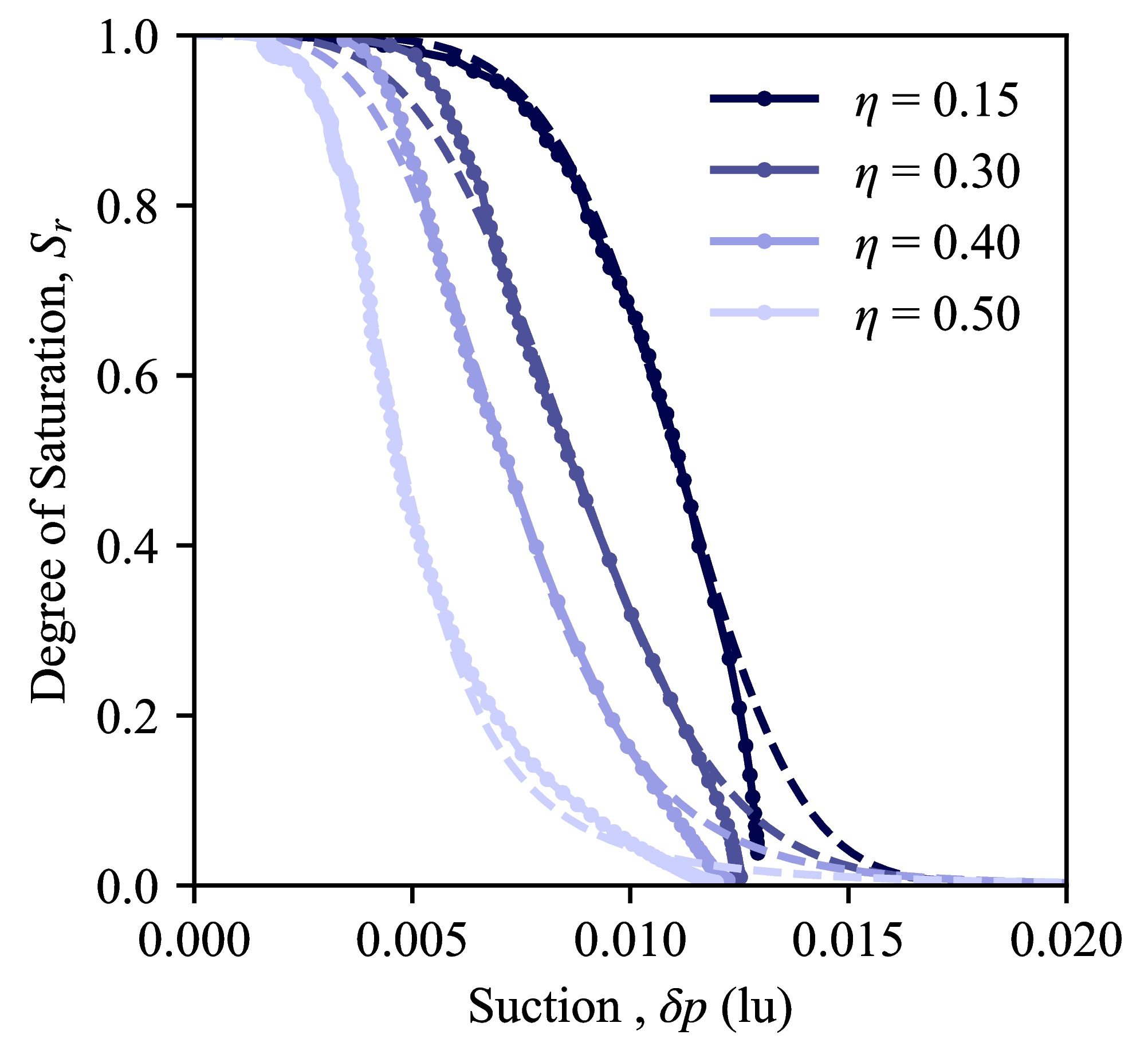

Multiphase LBM: Effect of porosity

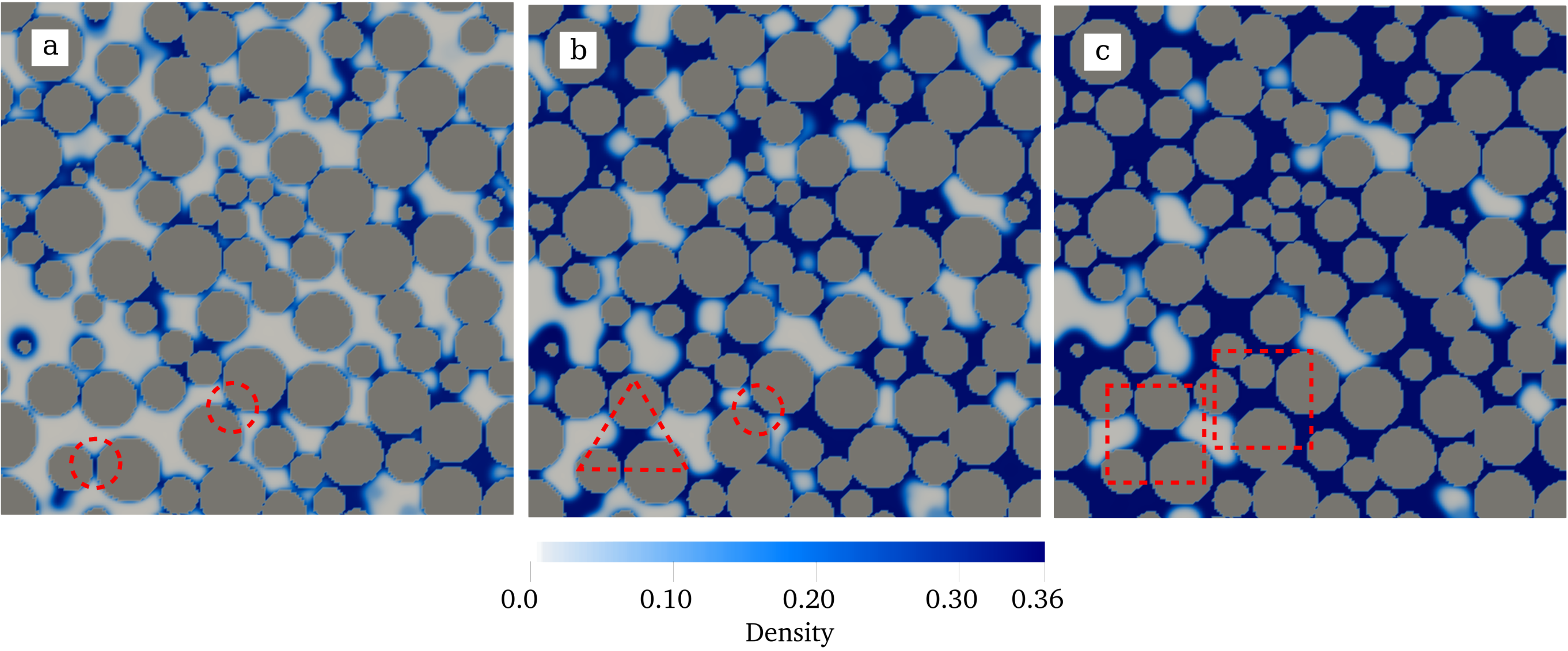

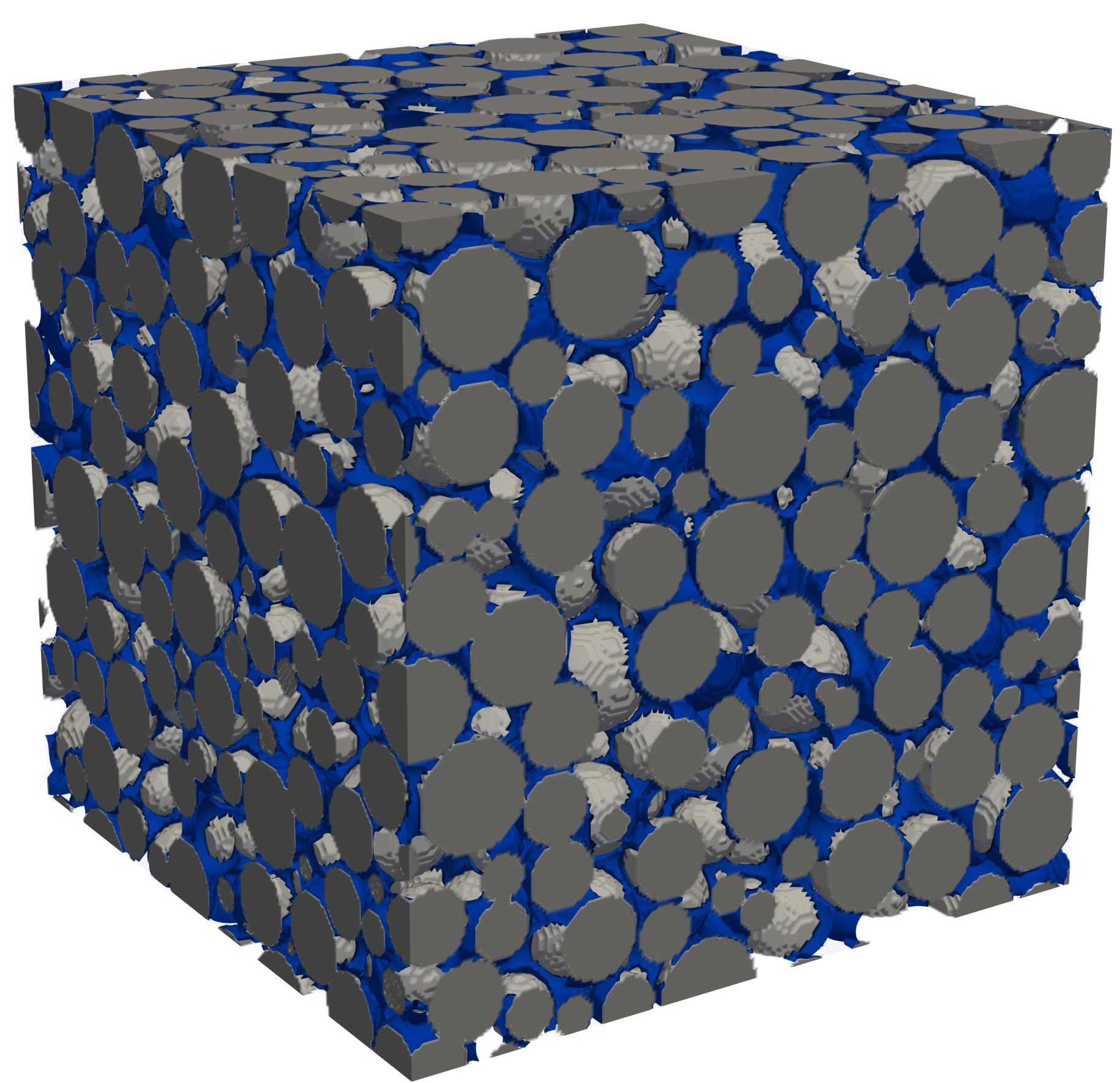

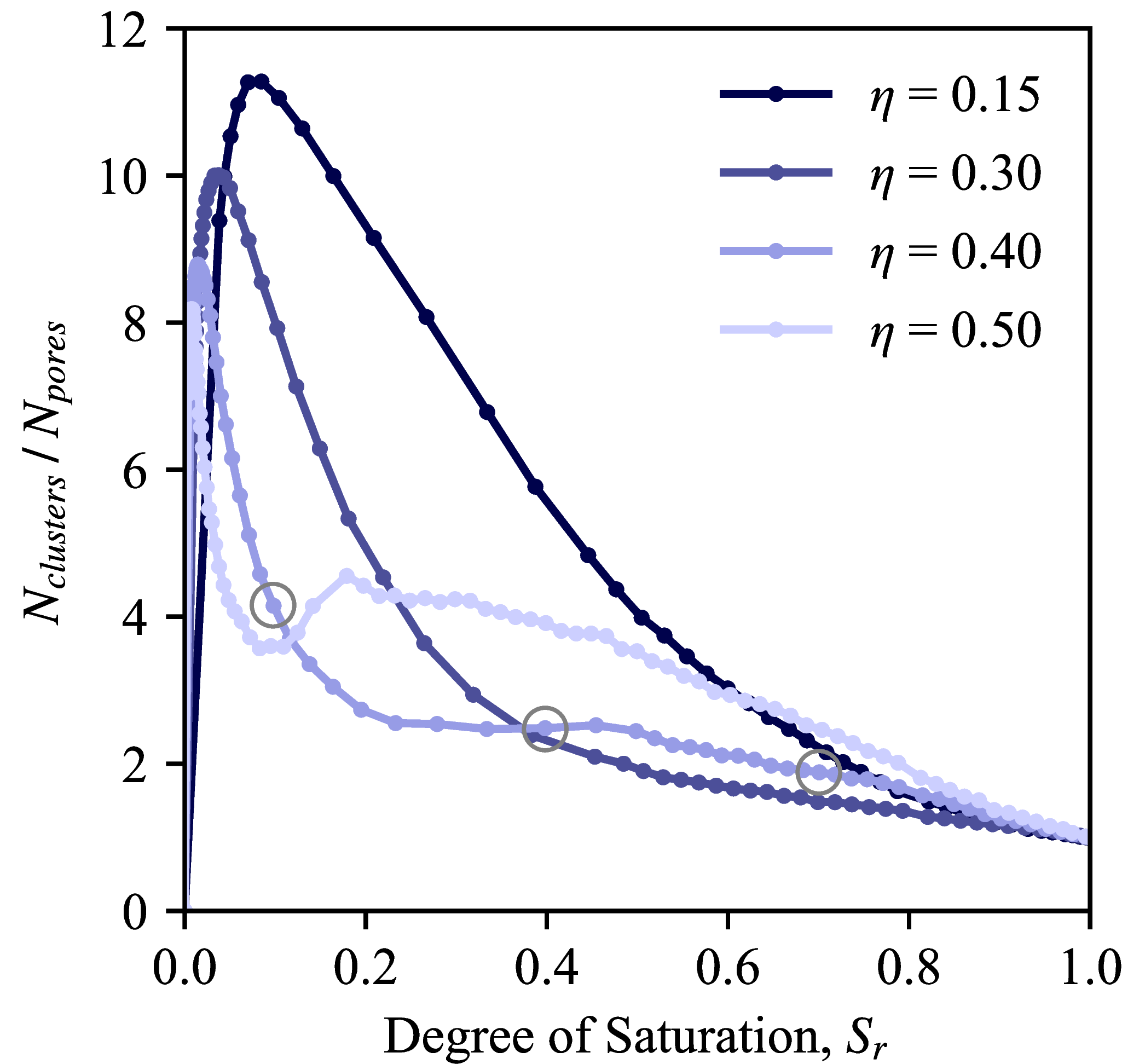

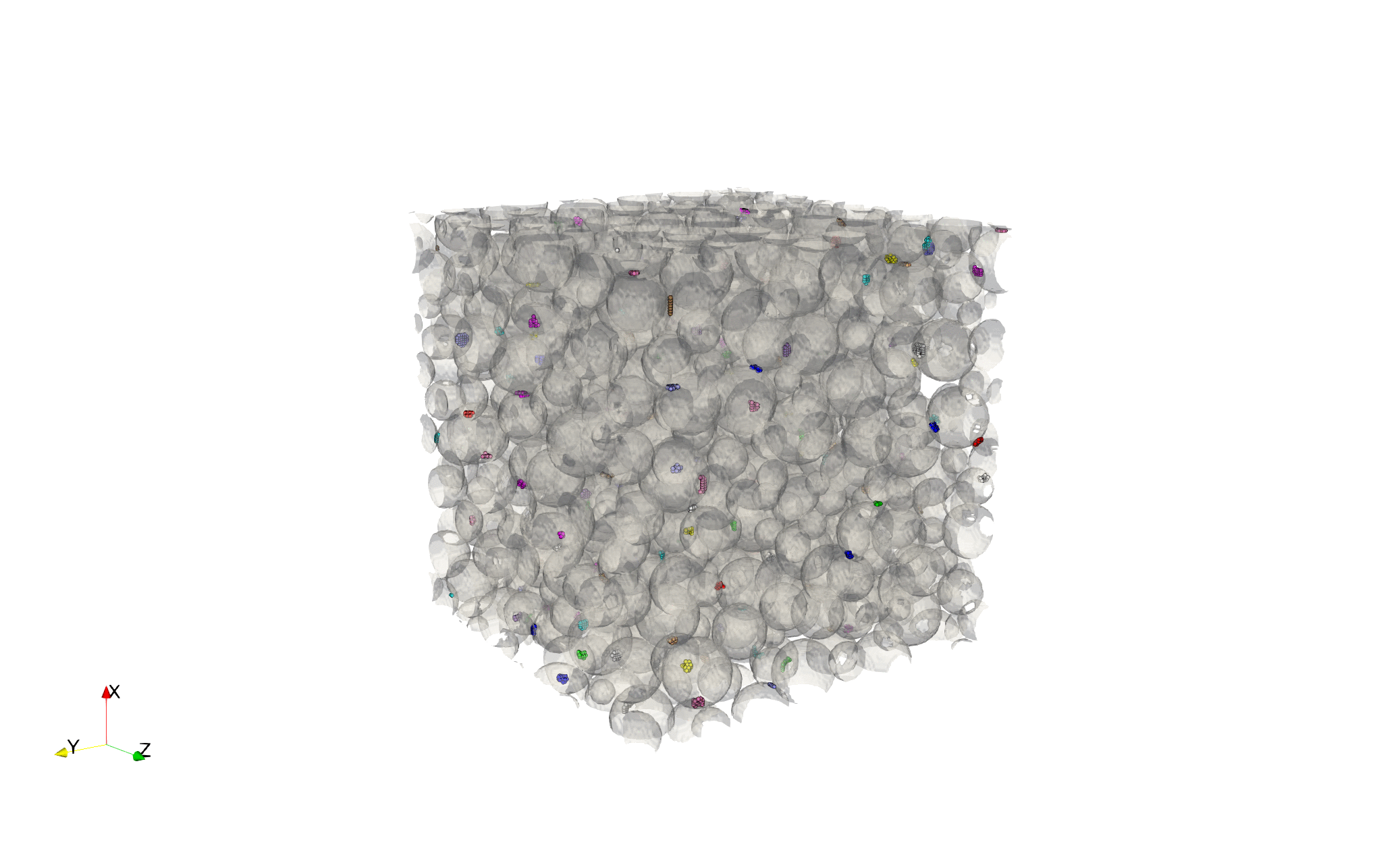

Multiphase LBM: Capillary structures
(θ = 90°)

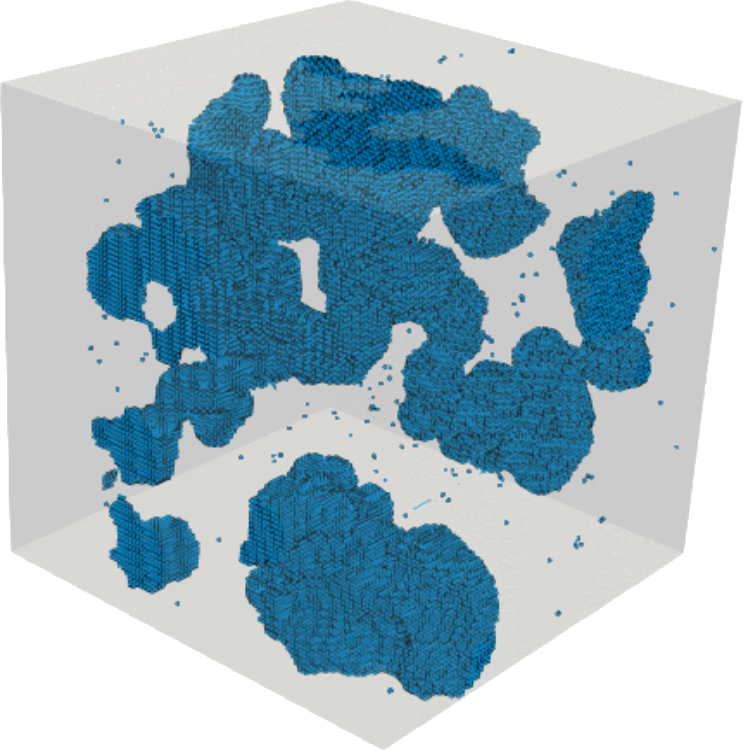

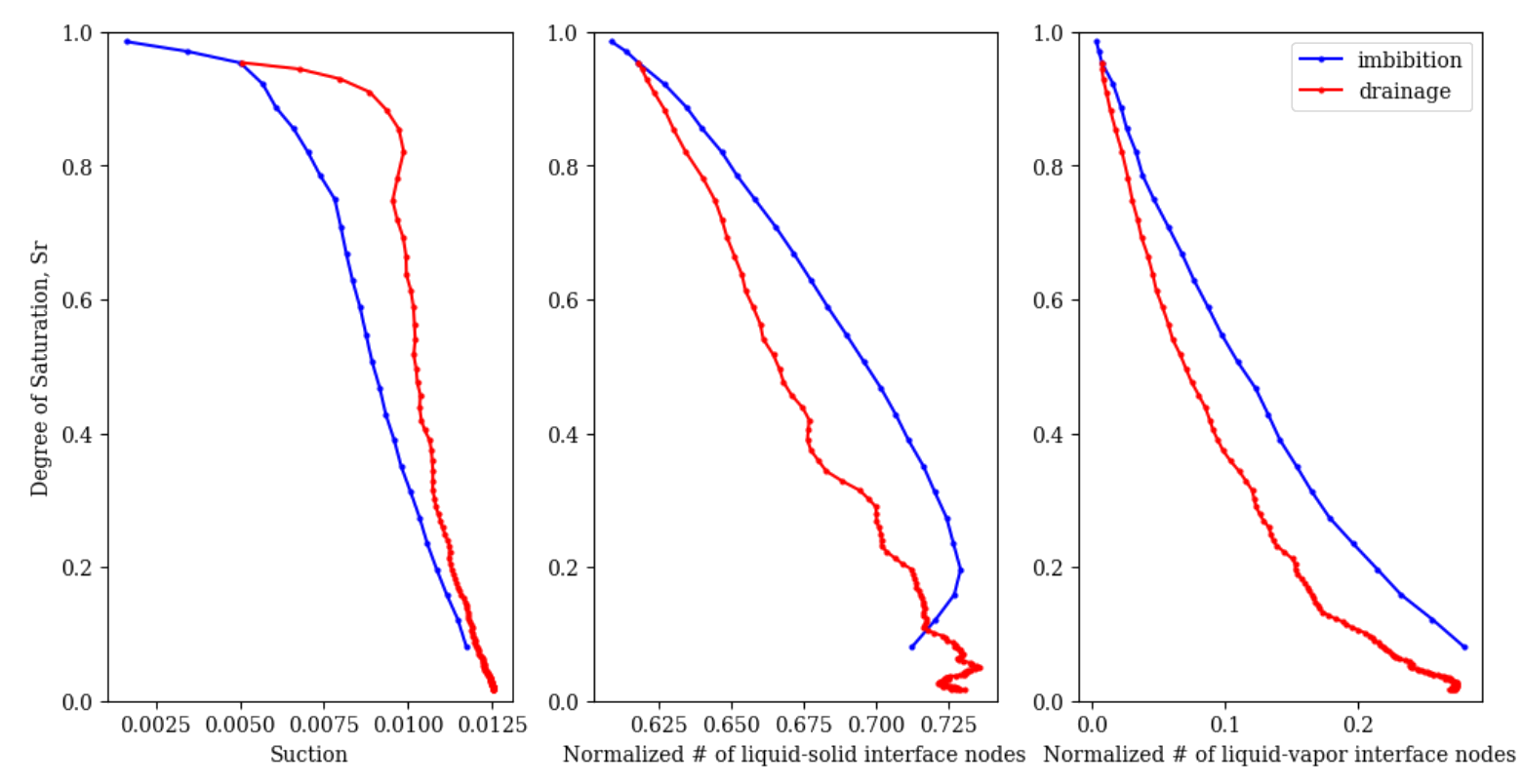

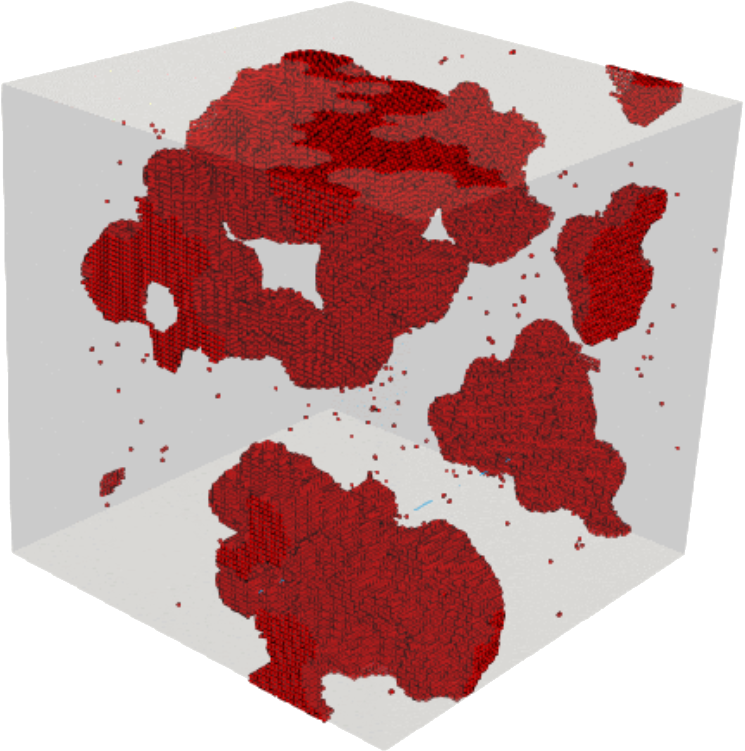

Multiphase LBM: Hysteresis
Multiphase LBM: Hysteresis

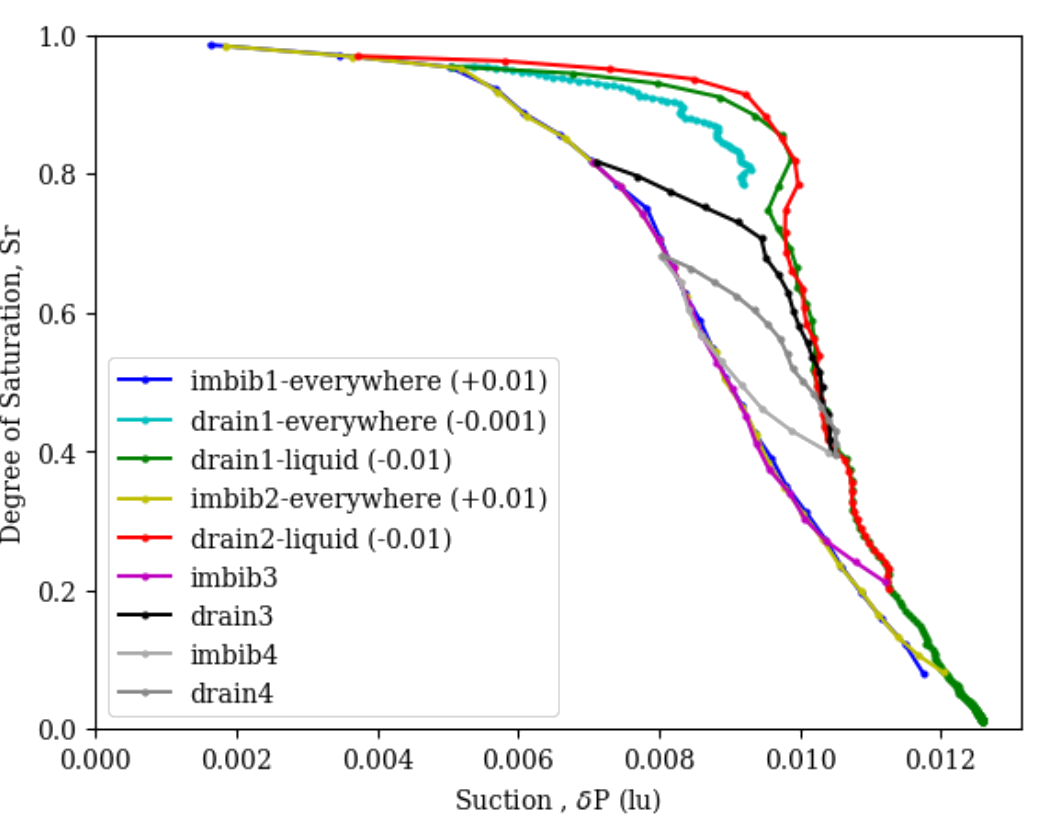

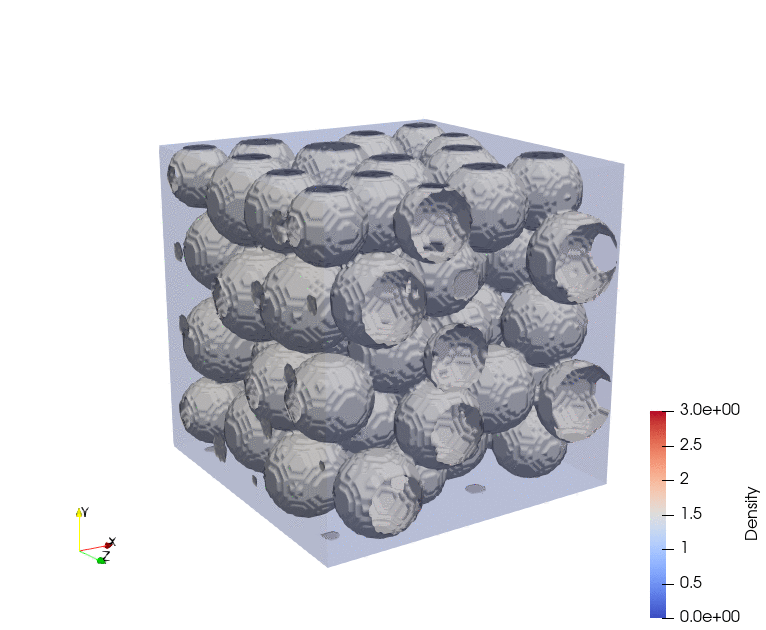

Multiphase LBM: Hysteresis in spherical grains

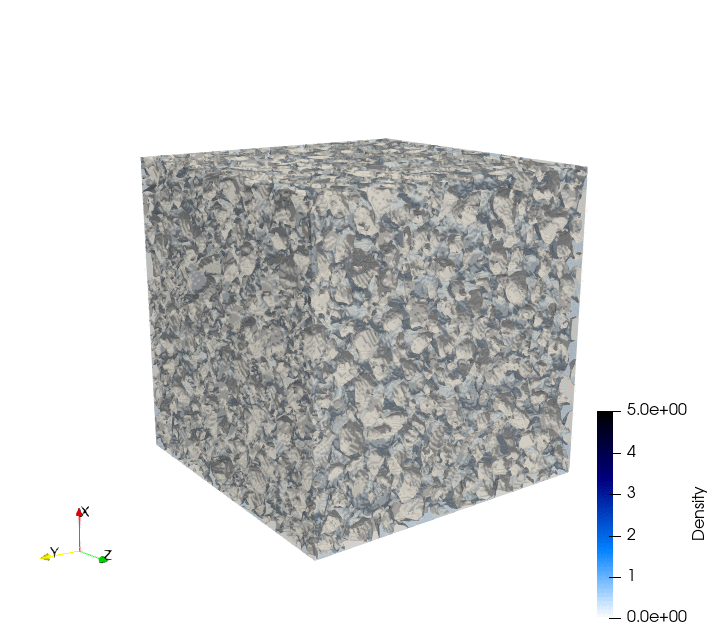

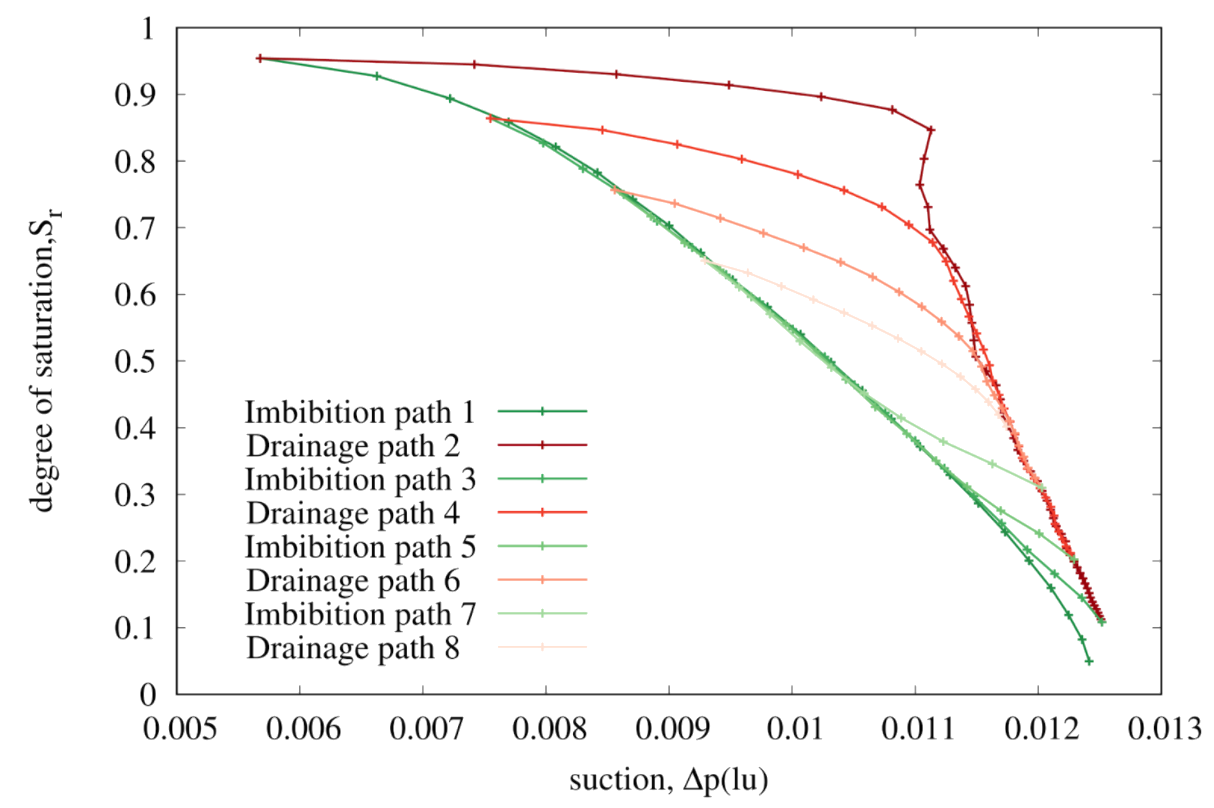

Multiphase LBM: Hysteresis in Hamburg sand
Multiphase LBM: Hysteresis in Hamburg sand
